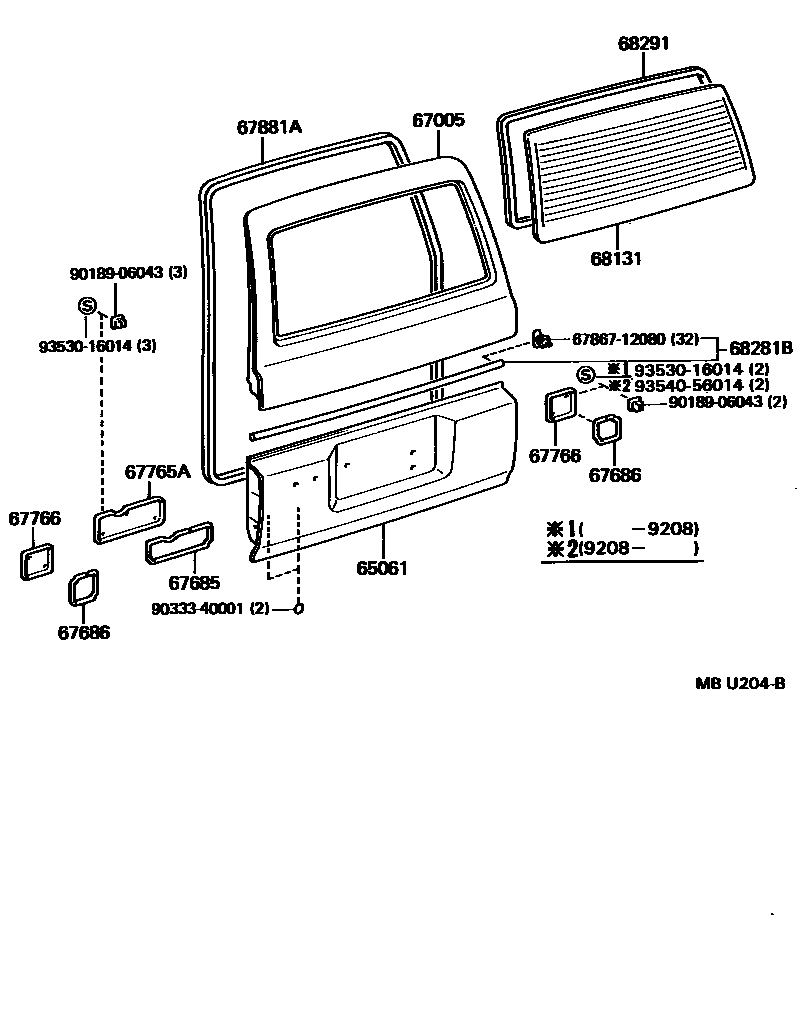

BACK DOOR PANEL & GLASS

0001 1 0002 1

65061PANEL SUB-ASSY, TAIL GATE

main65061-60030iFJ80,FZJ80199001-199504

sub65061-60031

main65061-60031iFZJ80199504-199801

67005PANEL SUB-ASSY, BACK DOOR

main67005-60100iFJ80199001-199208

sub67005-60101

sub75441-60071

sub90467-06096

main67005-60120iFZJ80199208-199301

sub67005-60121

sub75441-60071

sub90467-06096

main67005-60121iFZJ80199301-199608

main67005-60800iFZJ80199608-199801

67685PACKING, BACK DOOR SERVICE HOLE, NO.1

main67685-60010iFJ80,FZJ80199001-199801

67686PACKING, BACK DOOR SERVICE HOLE, NO.2

main67685-60010iFZJ80199208-199801

main67686-60010iFJ80199001-199208

sub67685-60010

67765ACOVER, BACK DOOR SERVICE HOLE, NO.1

main67765-60010iFJ80,FZJ80199001-199801

67766COVER, BACK DOOR SERVICE HOLE, NO.2

main67766-60010iFJ80,FZJ80199001-199801

67881AWEATHERSTRIP, BACK DOOR

main67881-60010iFJ80199001-199010

main67881-60060iFJ80,FZJ80199010-199801

68131GLASS, BACK DOOR

main68131-60120iFJ80,FZJ80199001-199305

*EHTT,T=3.5

sub68131-60121

main68131-60121iFZJ80199305-199608

*EHTT,T=4.0,BLUE

sub68131-60290

main68131-60150iFZJ80199208-199306

*EHSERT,T=3.5,GRAY

sub68131-60151

main68131-60151iFZJ80199306-199801

*EHSERT,T=4.0,GRAY

main68131-60290iFZJ80199608-199801

*EHT,T=4.0,GREEN

68281BWEATHERSTRIP, LIFT GATE

main68281-60010iFJ80,FZJ80199001-199801

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-60050iFJ80,FZJ80199001-199801

6786712080CLIP, DOOR WEATHERSTRIP

main67867-12080

9018906043

main90189-06043

9033340001

main90333-40001

9353016014

main93530-16014

9354056014

main93540-56014

15 parts on this diagram · 2 diagrams in section
