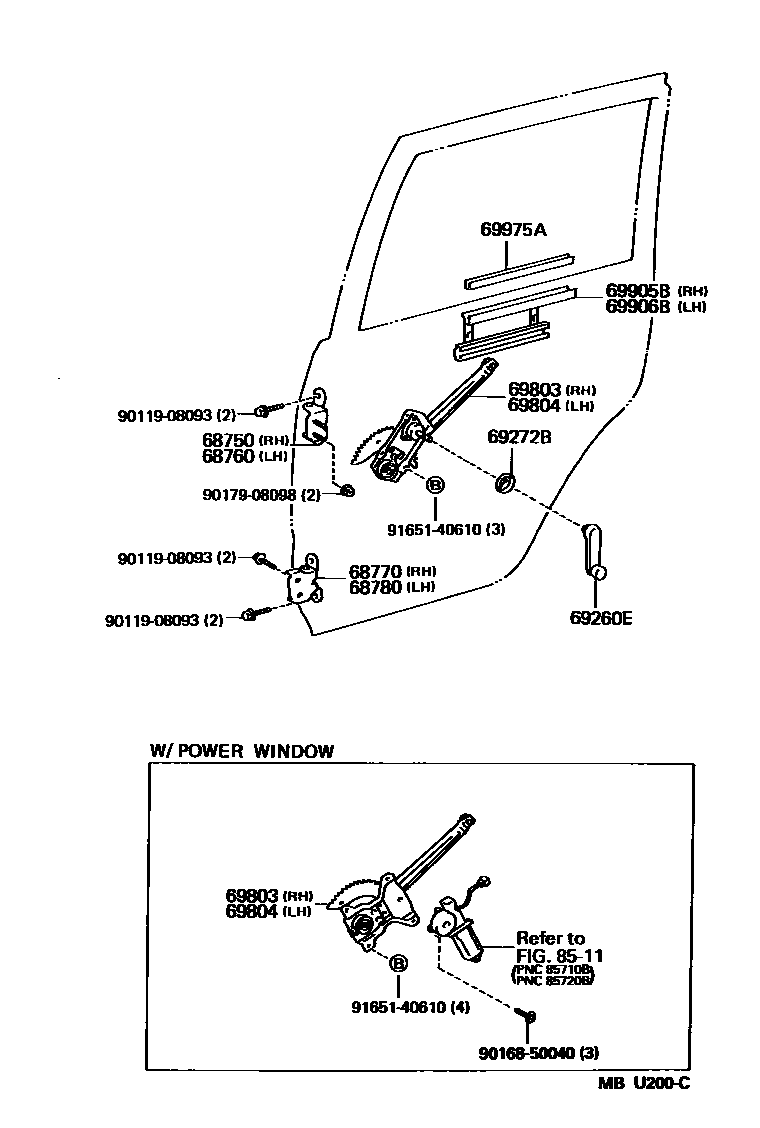

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-60010iFJ80199001-199201

main68750-60030iFJ80,FZJ80199201-199801

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-60010iFJ80199001-199201

main68760-60030iFJ80,FZJ80199201-199801

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-20040iFJ80199001-199201

main68770-35010iFJ80,FZJ80199201-199801

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-20040iFJ80199001-199201

main68780-35010iFJ80,FZJ80199201-199801

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-10040-08×2iFJ80199001-199201

BLUISH GRAY,TRIM1#

sub69260-16010

main69260-10040-49×2iFJ80199001-199201

SABLE,TRIM4#

sub69260-16010

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69285-22010-08×2iFJ80199001-199201

NATURAL WHITE,TRIM1#,4#

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-60010iFJ80199001-199201

W(*PW)

main69830-60010iFJ80199001-199201

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-60010iFJ80199001-199201

W(*PW)

main69840-60010iFJ80199001-199201

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-60010iFJ80,FZJ80199001-199412

main69905-60011iFZJ80199412-199801

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-60010iFJ80,FZJ80199001-199412

main69906-60011iFZJ80199412-199801

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-60010×2iFJ80,FZJ80199001-199412

main69975-60011×2iFZJ80199412-199801

sub69971-90D00

8511

9011908093

main90119-08093

9016850040

main90168-50040

9017908098

main90179-08098

9165140610

main91651-40610

16 parts on this diagram · 1 diagram in section
