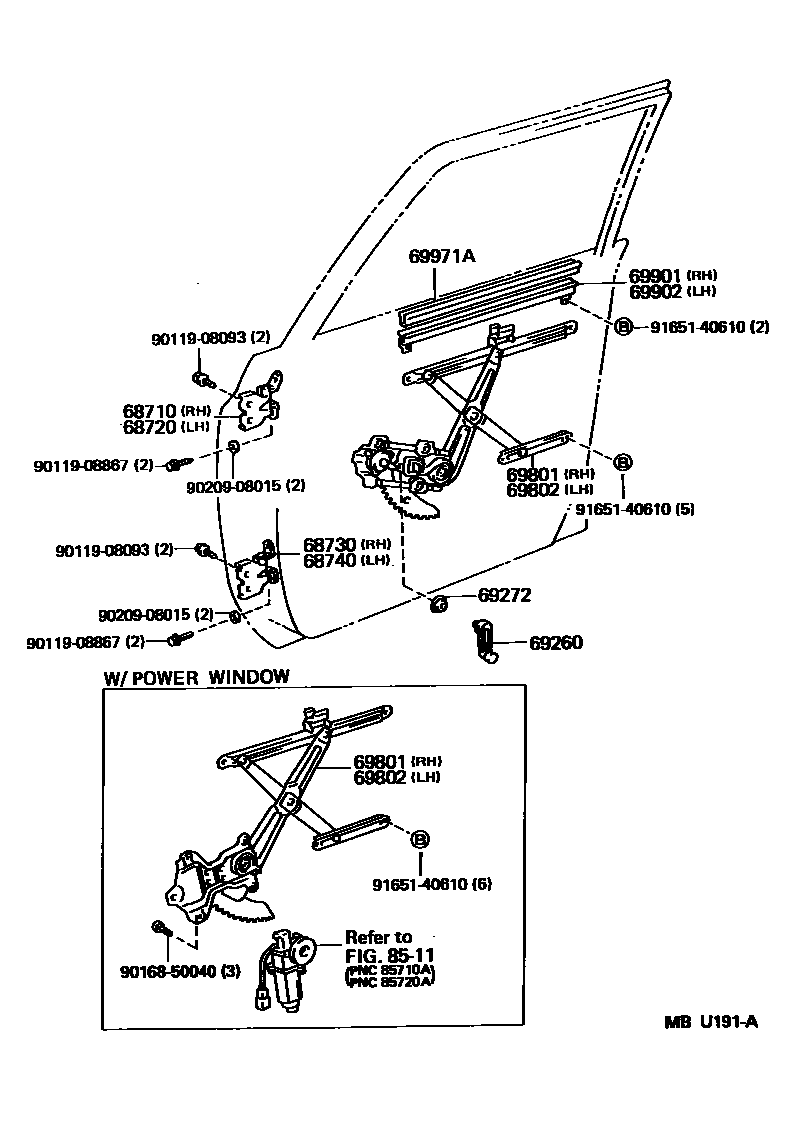

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-60020iFJ80199001-199201

sub68710-60030

main68710-60030iFJ80,FZJ80199201-199801

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-60020iFJ80199001-199201

sub68720-60030

main68720-60030iFJ80,FZJ80199201-199801

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12060iFJ80199001-199201

main68730-60010iFJ80,FZJ80199201-199801

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12060iFJ80199001-199201

main68740-60010iFJ80,FZJ80199201-199801

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-08iFJ80199001-199201

BLUISH GRAY,TRIM1#

sub69260-10040

sub69260-16010

main69260-10040-49iFJ80199001-199201

SABLE,TRIM4#

sub69260-10040

sub69260-16010

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08iFJ80199001-199201

NATURAL WHITE,TRIM1#,4#

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-60010iFJ80,FZJ80199201-199801

main69801-60010iFJ80199001-199201

W(*PW)

main69810-60020iFJ80199001-199201

sub69810-60040

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-60010iFJ80,FZJ80199201-199801

main69802-60010iFJ80199001-199201

W(*PW)

main69820-60020iFJ80199001-199201

sub69820-60040

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-60010iFJ80,FZJ80199001-199801

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-60010iFJ80,FZJ80199001-199801

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-60010iFJ80,FZJ80199001-199801

sub69971-60020

8511

9011908093

main90119-08093

9011908867

main90119-08867

9016850040

main90168-50040

9020908015

main90209-08015

9165140610

main91651-40610

17 parts on this diagram · 1 diagram in section
