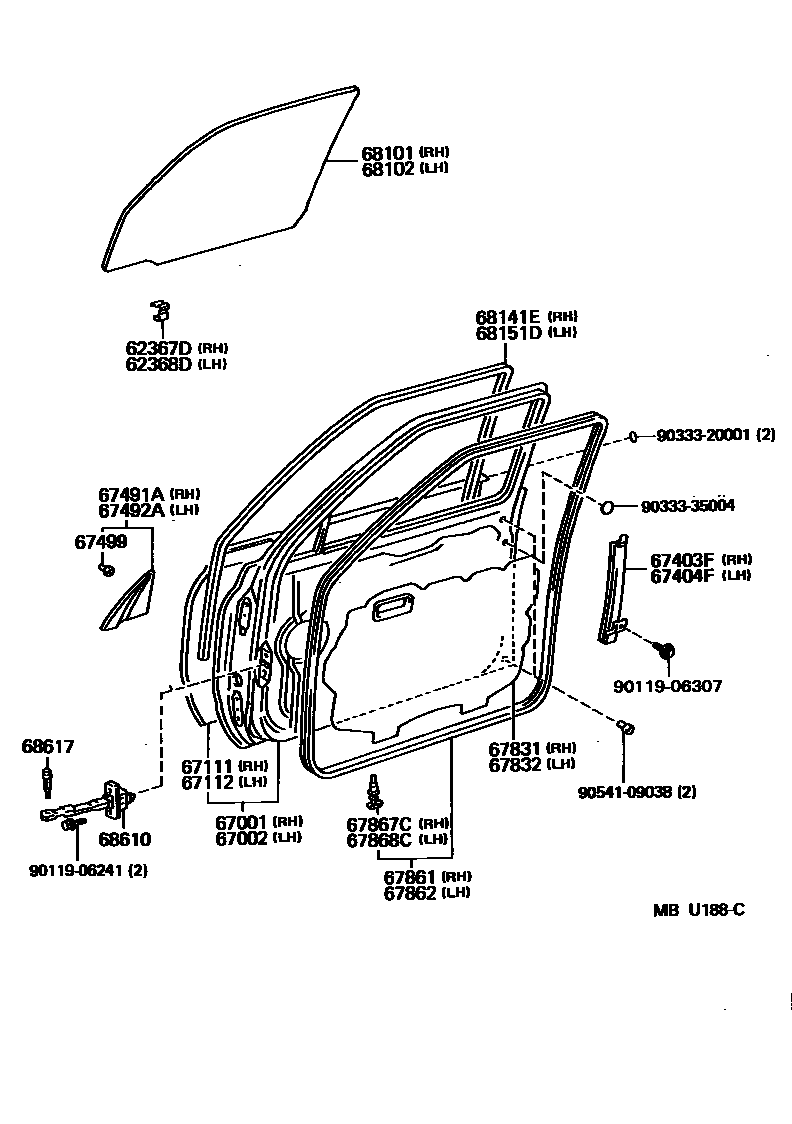

FRONT DOOR PANEL & GLASS
62367DCLIP, DOOR WINDOW GLASS, RH
62368DCLIP, DOOR WINDOW GLASS, LH
67111PANEL, FRONT DOOR, OUTER RH
W(*SPM)
67112PANEL, FRONT DOOR, OUTER LH
W(*SPM)
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TEM,T=4.0,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TEM,T=4.0,GREEN
68617PIN, FRONT DOOR CHECK
9011906241
main90119-06241
9011906307
main90119-06307
9033320001
main90333-20001
9033335004
main90333-35004
9054109038
main90541-09038
28 parts on this diagram · 4 diagrams in section
