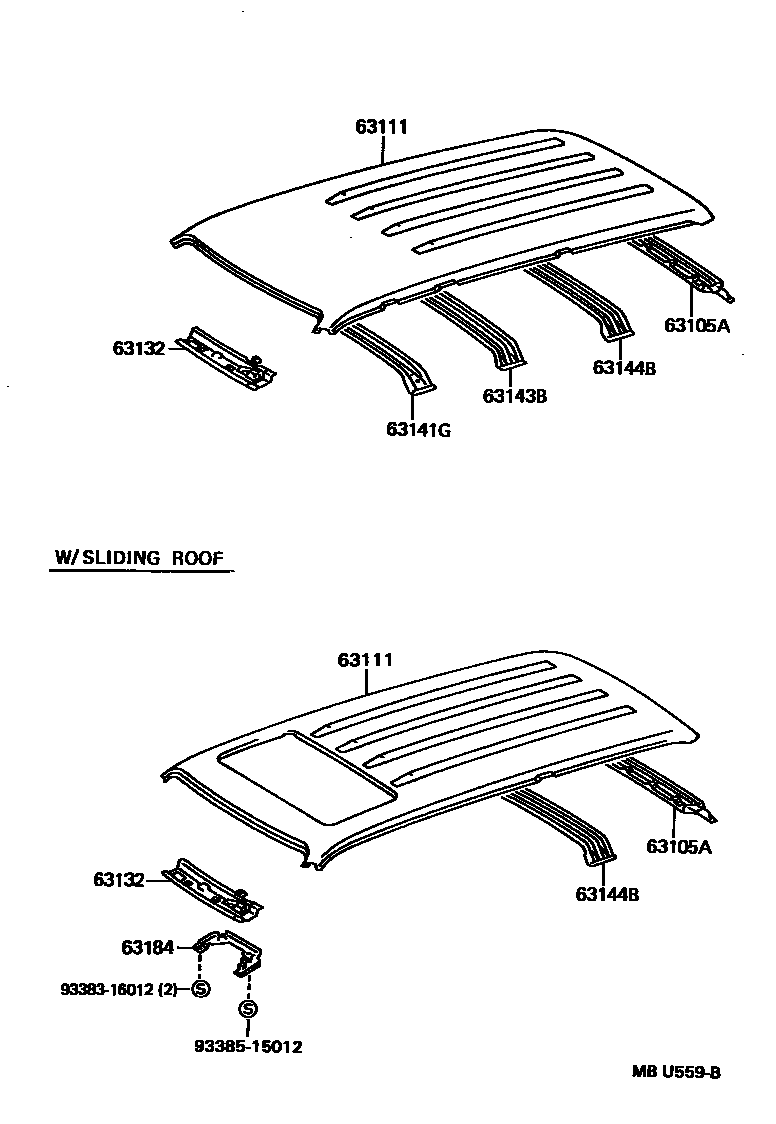

ROOF PANEL & BACK PANEL

0001 1 0002 1

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60020iFJ80199001-199208

main63105-60030iFJ80199001-199208

W(REAR TRANSVERSE SEAT)

main63105-60100iFZJ80199208-199501

main63105-60130iFZJ80199501-199801

63111PANEL, ROOF

main63014-60020iFJ80,FZJ80199001-199801

W(*MR)

main63111-60190iFJ80,FZJ80199001-199801

63132PANEL, WINDSHIELD HEADER, INNER

main63103-60010iFJ80199001-199106

sub63103-60011

main63103-60011iFJ80,FZJ80199106-199501

sub63103-60012

sub74348-91601

main63103-60012iFZJ80199501-199801

main63103-60020iFJ80199001-199106

W(*MR)

sub63103-60021

main63103-60021iFJ80,FZJ80199106-199501

W(*MR)

sub63103-60022

sub74348-91601

main63103-60022iFZJ80199501-199801

W(*MR)

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-60010iFJ80,FZJ80199001-199801

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-60010iFJ80,FZJ80199001-199801

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-60010iFZJ80199001-199801

63184BRACKET, ROOF CONSOLE, REAR

main63184-60020iFJ80,FZJ80199001-199801

9338316012

main93383-16012

9338515012

main93385-15012

9 parts on this diagram · 2 diagrams in section
