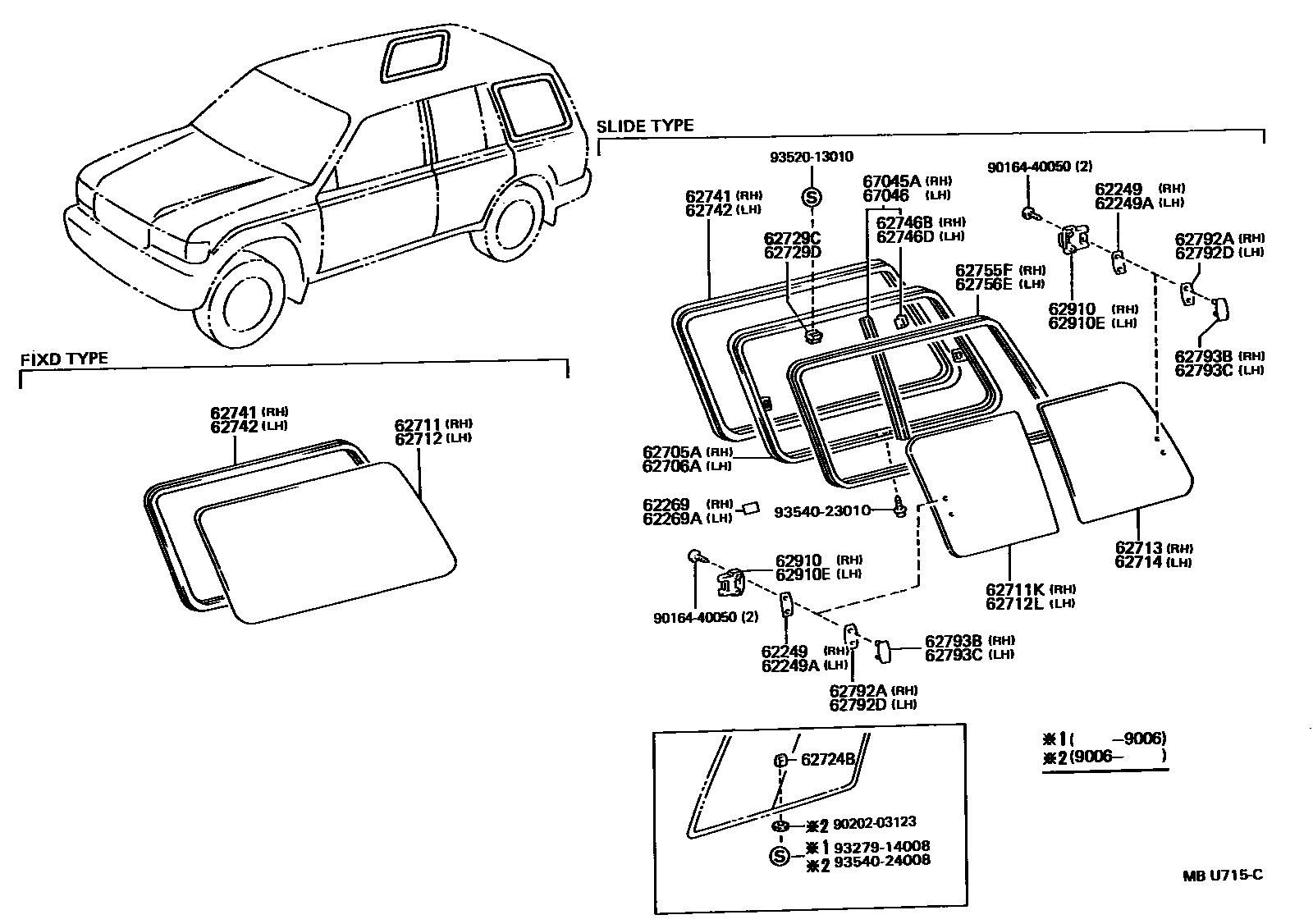

SIDE WINDOW
62249PLATE, SIDE WINDOW, RH
62249APLATE, SIDE WINDOW, LH
62269FILM, SIDE WINDOW FRAME, RH
62269AFILM, SIDE WINDOW FRAME, LH
62705AFRAME SUB-ASSY, QUARTER WINDOW, RH
W(REAR QUARTER SLIDE WINDOW)
W(REAR QUARTER SLIDE WINDOW & DUAL AIR CONDITIONER)
62706AFRAME SUB-ASSY, QUARTER WINDOW, LH
62711GLASS, QUARTER WINDOW, RH
*TT,T=3.5,GREEN
62711KGLASS, QUARTER WINDOW, FRONT RH
*TT,T=4.0,BLUE
*SERT,T=4.0,GRAY
62712GLASS, QUARTER WINDOW, LH
*TT,T=3.5,GREEN
62712LGLASS, QUARTER WINDOW, FRONT LH
*TT,T=4.0,BLUE
*SERT,T=4.0,GRAY
62713GLASS, QUARTER WINDOW, REAR RH
*SERT,T=4.0,GRAY
62714GLASS, QUARTER WINDOW, REAR LH
*SERT,T=4.0,GRAY
62724BSTOP, SIDE WINDOW GLASS
62729CPAD, REAR WINDOW CENTER SASH, RH
62729DPAD, REAR WINDOW CENTER SASH, LH
62741WEATHERSTRIP, QUARTER WINDOW, RH
W(REAR QUARTER SLIDE WINDOW)
W(REAR QUARTER SLIDE WINDOW & DUAL AIR CONDITIONER)
62742WEATHERSTRIP, QUARTER WINDOW, LH
W(REAR QUARTER SLIDE WINDOW)
62746BPACKING, QUARTER WINDOW, RH
62746DPACKING, QUARTER WINDOW, LH
62755FRUN, QUARTER WINDOW, RH
W(REAR QUARTER SLIDE WINDOW)
W(REAR QUARTER SLIDE WINDOW & DUAL AIR CONDITIONER)
62756ERUN, QUARTER WINDOW, LH
62792APACKING, SIDE WINDOW LOCK, RH
62792DPACKING, SIDE WINDOW LOCK
62793BRETAINER, SIDE WINDOW LOCK, RH
62793CRETAINER, SIDE WINDOW LOCK, LH
62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH
RR
FR
RR
FR
62910ELOCK ASSY, SIDE WINDOW
RR
FR
RR
FR
67045AFRAME SUB-ASSY, SIDE FRONT WINDOW, CENTER RH
67046FRAME SUB-ASSY, SIDE FRONT WINDOW, CENTER LH
9016440050
main90164-40050
9020203123
main90202-03123
9327914008
main93279-14008
9352013010
main93520-13010
9354023010
main93540-23010
9354024008
main93540-24008
35 parts on this diagram · 1 diagram in section
