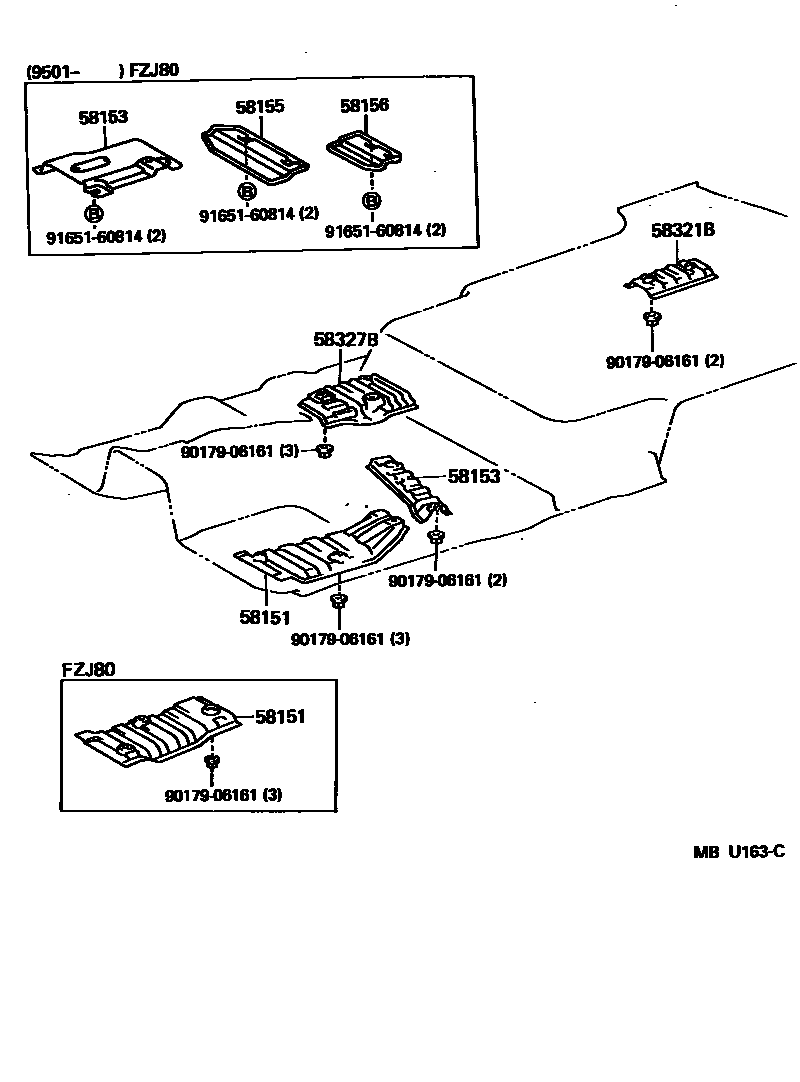

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-60010iFJ80199001-199208

main58041-60020iFZJ80199208-199801

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58042-60010iFJ80199001-199208

main58153-60030iFZJ80199208-199501

main58153-60040iFZJ80199501-199801

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-60020iFZJ80199501-199801

main58155-60030iFZJ80199501-199801

W(*OF)

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-60010iFZJ80199501-199801

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-60010iFJ80,FZJ80199001-199801

58327BINSULATOR, MAIN MUFFLER HEAT

main58043-60010iFJ80,FZJ80199001-199801

9017906161

main90179-06161

9165160814

main91651-60814

8 parts on this diagram · 1 diagram in section
