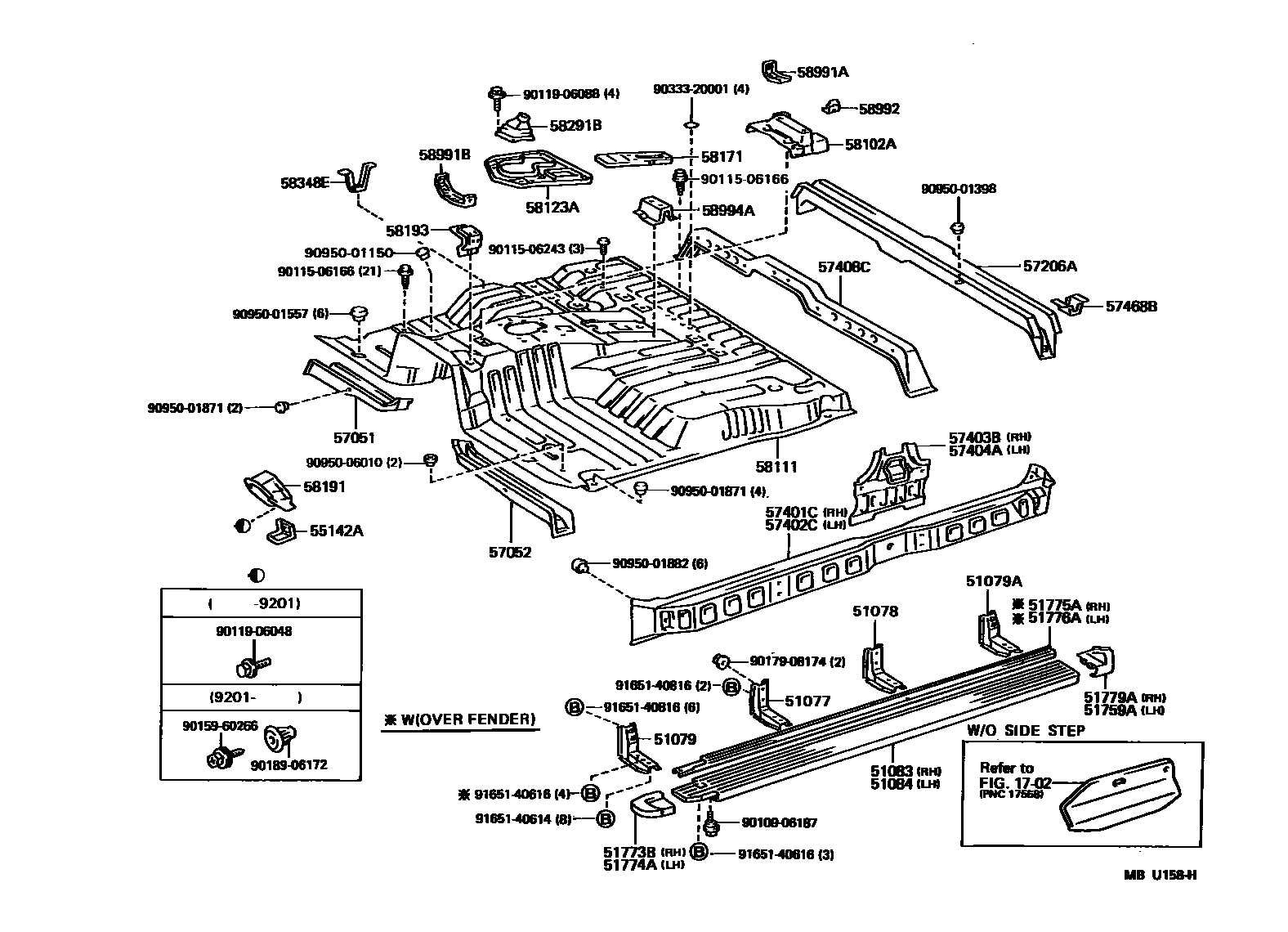

FRONT FLOOR PANEL & FRONT FLOOR MEMBER
1702
51077BRACKET SUB-ASSY, SIDE STEP, NO.2
51078BRACKET SUB-ASSY, SIDE STEP, NO.3
51079BRACKET SUB-ASSY, SIDE STEP
51079ABRACKET SUB-ASSY, SIDE STEP, NO.3
51083STEP SUB-ASSY, RH
51084STEP SUB-ASSY, LH
51759ACOVER, SIDE DOOR STEP PLATE, REAR LH
51773BCOVER, SIDE DOOR STEP PLATE, FRONT RH
51774ACOVER, SIDE DOOR STEP PLATE, FRONT LH
51775ACOVER, REAR STEP, RH
51776APLATE, SIDE STEP, LH
51779ACOVER, SIDE DOOR STEP PLATE, REAR RH
55142ABRACKET, FOOT REST MOUNTING, NO.2
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2
57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402CMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57403BREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH
57404AREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH
57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS
57468BBRACKET, FRONT SEAT, REAR
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58111PAN, FRONT FLOOR
W(FRONT HEATER)
W(FRONT HEATER)
58123ASUPPORT, SHIFT & SELECT LEVER
58171REINFORCEMENT, PARKING BRAKE BASE
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58291BBOOT, TRANSFER SHIFT LEVER
58348EBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58991ABRACKET, CONSOLE BOX MOUNTING, UPPER RH
58991BBRACKET, CONSOLE BOX MOUNTING, FRONT
58992BRACKET, CONSOLE BOX MOUNTING, UPPER LH
58994ABRACKET, CONSOLE BOX MOUNTING, NO.4
9010906187
9011506166
9011506243
9011906048
9011906088
9015960266
9017908174
9018906172
9033320001
9095001150
9095001398
9095001557
9095001871
9095001882
9095006010
9165140614
9165140616
9165140816
53 parts on this diagram · 1 diagram in section
