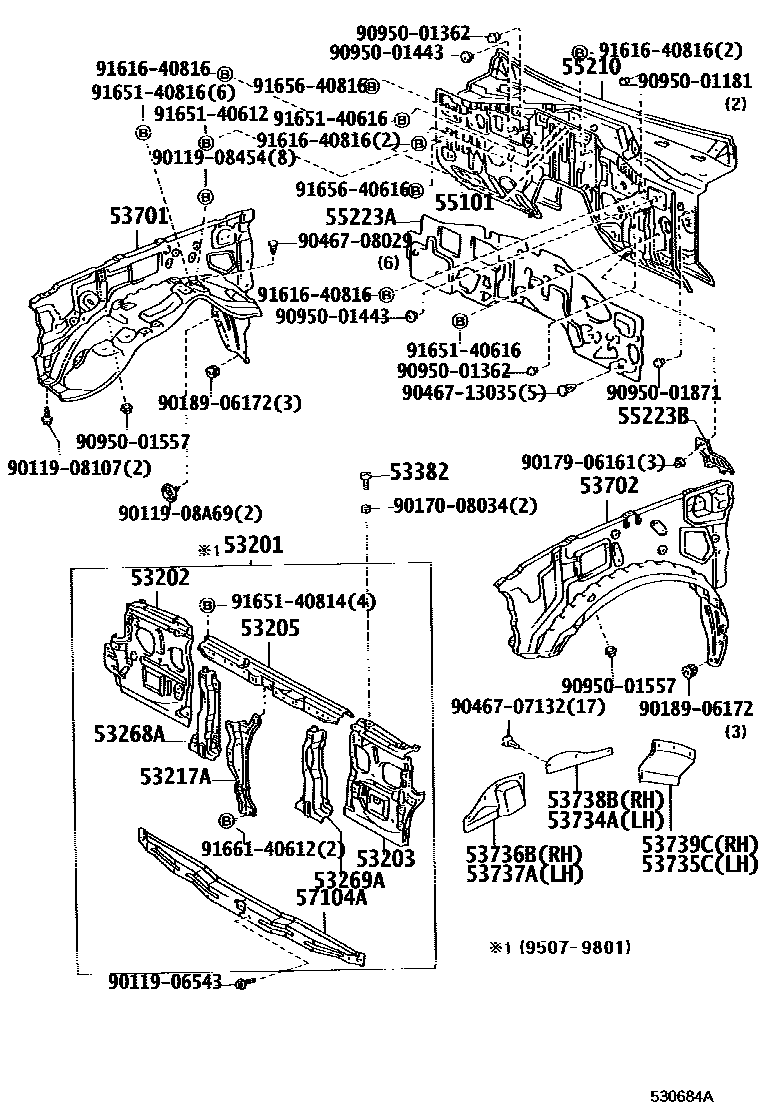

FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53210-60071iFZJ80199507-199801

***

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-60020iFJ80199001-199201

sub53202-60100

main53202-60100iFJ80,FZJ80199201-199501

sub53202-60101

main53202-60101iFZJ80199501-199507

sub53202-60102

main53202-60102iFZJ80199507-199801

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-60020iFJ80199001-199501

sub53203-60021

main53203-60021iFZJ80199501-199507

sub53203-60022

main53203-60022iFZJ80199507-199801

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-60020iFJ80,FZJ80199001-199501

sub53216-60021

main53216-60021iFZJ80199501-199801

53217ABRACE, HOOD LOCK SUPPORT

main53217-60020iFJ80,FZJ80199001-199501

main53217-60070iFZJ80199501-199801

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-60010iFJ80,FZJ80199003-199801

main53268-60020iFJ80199001-199003

sub53268-60010

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-60010iFJ80,FZJ80199003-199801

main53269-60020iFJ80199001-199003

sub53269-60010

53382BUMPER, HOOD, FRONT

main53382-60010iFJ80199001-199111

sub53382-60011

main53382-60011iFJ80,FZJ80199111-199801

53701APRON SUB-ASSY, FRONT FENDER, RH

main53710-60020iFJ80199001-199201

sub53710-60110

main53710-60040iFJ80199001-199201

W(OVER FENDER & MUD GUARD)

sub53710-60110

main53710-60110iFJ80199201-199208

main53710-60162iFZJ80199208-199501

sub53710-60163

main53710-60163iFZJ80199501-199603

main53710-60164iFZJ80199603-199801

sub53710-60163

53702APRON SUB-ASSY, FRONT FENDER, LH

main53720-60020iFJ80199001-199201

sub53720-60100

main53720-60040iFJ80199001-199201

W(OVER FENDER & MUD GUARD)

sub53720-60100

main53720-60100iFJ80199201-199208

main53720-60151iFZJ80199208-199501

sub53720-60152

main53720-60152iFZJ80199501-199603

main53720-60153iFZJ80199603-199801

sub53720-60152

53734ASEAL, FRONT FENDER APRON TO FRAME, NO.2 LH

main53738-60010iFJ80,FZJ80199001-199604

main53738-60011iFZJ80199604-199801

53735CSEAL, FRONT FENDER APRON TO FRAME, NO.3 LH

main53735-60010iFZJ80199208-199801

53736BSEAL, FRONT FENDER APRON TO FRAME, NO.1 RH

main53736-60010iFJ80,FZJ80199001-199801

53737ASEAL, FRONT FENDER APRON TO FRAME, NO.1 LH

main53737-60010iFJ80,FZJ80199001-199801

53738BSEAL, FRONT FENDER APRON TO FRAME, NO.2 RH

main53738-60010iFZJ80199001-199604

main53738-60011iFZJ80199604-199801

53739CSEAL, FRONT FENDER APRON TO FRAME, REAR

main53739-60010iFJ80199001-199208

55101PANEL SUB-ASSY, DASH

main55101-60861iFJ80199108-199208

W(AIR CONDITIONER)

main55101-60862iFZJ80199208-199501

W(AIR CONDITIONER)

main55101-60863iFZJ80199501-199801

W(AIR CONDITIONER)

main55101-6B280iFJ80199001-199011

sub55101-6B281

main55101-6B281iFJ80199011-199208

main55101-6B290iFJ80199001-199011

W(AIR CONDITIONER)

sub55101-6B291

main55101-6B291iFJ80199011-199108

W(AIR CONDITIONER)

sub55101-60861

main55101-6C500iFZJ80199208-199501

main55101-6C501iFZJ80199501-199801

sub55101-6C481

sub90950-01882

55210INSULATOR ASSY, DASH PANEL

main55210-60020iFJ80199001-199206

sub55210-60021

main55210-60021iFJ80,FZJ80199206-199409

sub55210-60022

main55210-60022iFZJ80199501-199801

55223AINSULATOR, DASH PANEL, OUTER

main55223-60111iFZJ80199208-199501

sub55223-60112

main55223-60112iFZJ80199501-199801

55223BINSULATOR, DASH PANEL HEAT, NO.1

main55225-60010iFJ80199001-199208

main55225-60020iFZJ80199208-199801

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-60020iFJ80,FZJ80199001-199501

sub57104-60021

main57104-60021iFZJ80199501-199508

sub57104-60022

main57104-60022iFZJ80199508-199801

9011906543

main90119-06543

9011908107

main90119-08107

9011908454

main90119-08454

9011908A69

main90119-08A69

9017008034

main90170-08034

9017906161

main90179-06161

9018906172

main90189-06172

9046707132

main90467-07132

9046708029

main90467-08029

9046713035

main90467-13035

9095001181

main90950-01181

9095001362

main90950-01362

9095001443

main90950-01443

9095001557

main90950-01557

9095001871

main90950-01871

9161640816

main91616-40816

9165140612

main91651-40612

9165140616

main91651-40616

9165140814

main91651-40814

9165140816

main91651-40816

9165640616

main91656-40616

9165640816

main91656-40816

9166140612

main91661-40612

44 parts on this diagram · 1 diagram in section
