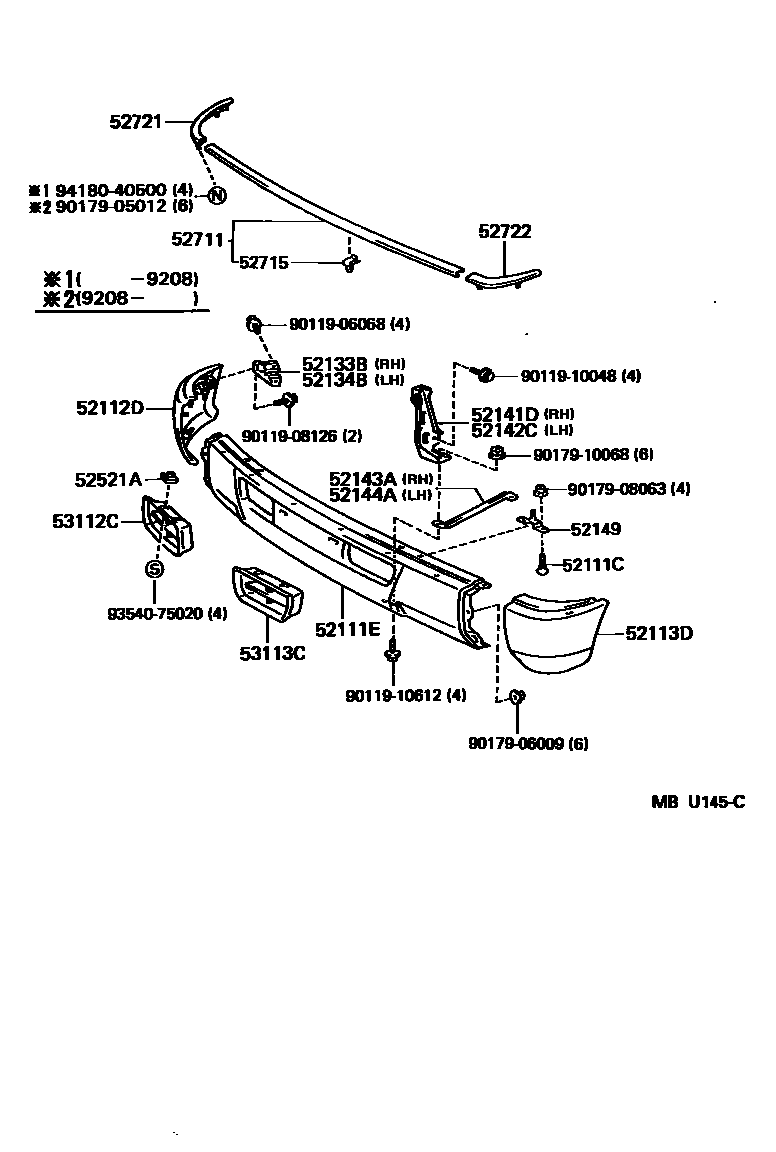

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52111CBOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)

main90112-08073iFJ80,FZJ80¥160199001-199801

52111EBAR, FRONT BUMPER

main52111-60220iFJ80¥43,100199001-199208

main52111-60370iFZJ80¥36,000199208-199501

main52111-60540iFZJ80¥36,100199501-199801

52112DEXTENSION, FRONT BUMPER, RH

main52102-60030iFJ80¥9,100199001-199208

main52102-60110iFZJ80¥15,900199208-199501

main52102-60210iFZJ80¥12,100199501-199801

52113DEXTENSION, FRONT BUMPER, LH

main52103-60030iFJ80¥9,100199001-199208

main52103-60110iFZJ80¥15,900199208-199501

main52103-60210iFZJ80¥12,100199501-199801

52133BBRACKET, FRONT BUMPER EXTENSION MOUNTING, RH

main52061-60010iFJ80,FZJ80¥1,250199001-199501

main52133-60031iFJ80¥1,320199204-199206

sub52061-60010¥1,250

52134BBRACKET, FRONT BUMPER EXTENSION MOUNTING, LH

main52062-60010iFJ80,FZJ80¥1,250199001-199501

main52134-60031iFJ80¥1,320199204-199206

sub52062-60010¥1,250

52141DSTAY, FRONT BUMPER, RH

main52141-60060iFJ80,FZJ80¥3,530199001-199501

main52141-60070iFZJ80¥3,500199501-199801

52142CSTAY, FRONT BUMPER, LH

main52142-60050iFJ80,FZJ80¥3,530199001-199501

main52142-60060iFZJ80¥3,500199501-199801

52143AARM, FRONT BUMPER, INNER RH

main52143-60020iFJ80,FZJ80¥2,740199001-199311

main52143-60040iFZJ80¥6,800199501-199801

52144AARM, FRONT BUMPER, INNER LH

main52143-60040iFZJ80¥6,800199501-199801

main52144-60020iFJ80,FZJ80¥2,740199001-199311

52149BRACKET, FRONT BUMPER, INNER

main52149-60020iFJ80,FZJ80¥660199001-199501

main52149-60030iFZJ80¥1,170199501-199801

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-04018iFJ80,FZJ80¥120199001-199501

52711MOULDING, FRONT BUMPER

main52711-60010iFJ80¥6,500199001-199208

main52711-60020iFZJ80¥6,300199208-199501

52715RETAINER, FRONT BUMPER MOULDING, NO.1

main52715-60010iFZJ80¥400199001-199501

52721MOULDING, FRONT BUMPER EXTENSION, RH

main52721-60010iFJ80¥4,680199001-199208

main52721-60020iFZJ80¥4,680199208-199501

52722MOULDING, FRONT BUMPER EXTENSION, LH

main52722-60010iFJ80¥4,680199001-199208

main52722-60020iFZJ80¥4,680199208-199501

53112CGRILLE, RADIATOR, LOWER RH

main53112-60020iFJ80,FZJ80¥3,510199001-199501

main53112-60030iFZJ80¥2,710199501-199801

53113CGRILLE, RADIATOR, LOWER LH

main53113-60010iFJ80,FZJ80¥3,510199001-199501

main53113-60020iFZJ80¥2,710199501-199801

9011906068

main90119-06068¥130

9011908126

main90119-08126¥200

9011910048

main90119-10048¥230

9011910612

main90119-10612¥200

9017905012

main90179-05012¥120

9017906009

main90179-06009¥120

9017908063

main90179-08063¥160

9017910068

main90179-10068¥90

9354075020

main93540-75020¥120

9418040500

main94180-40500¥80

28 parts on this diagram · 2 diagrams in section
