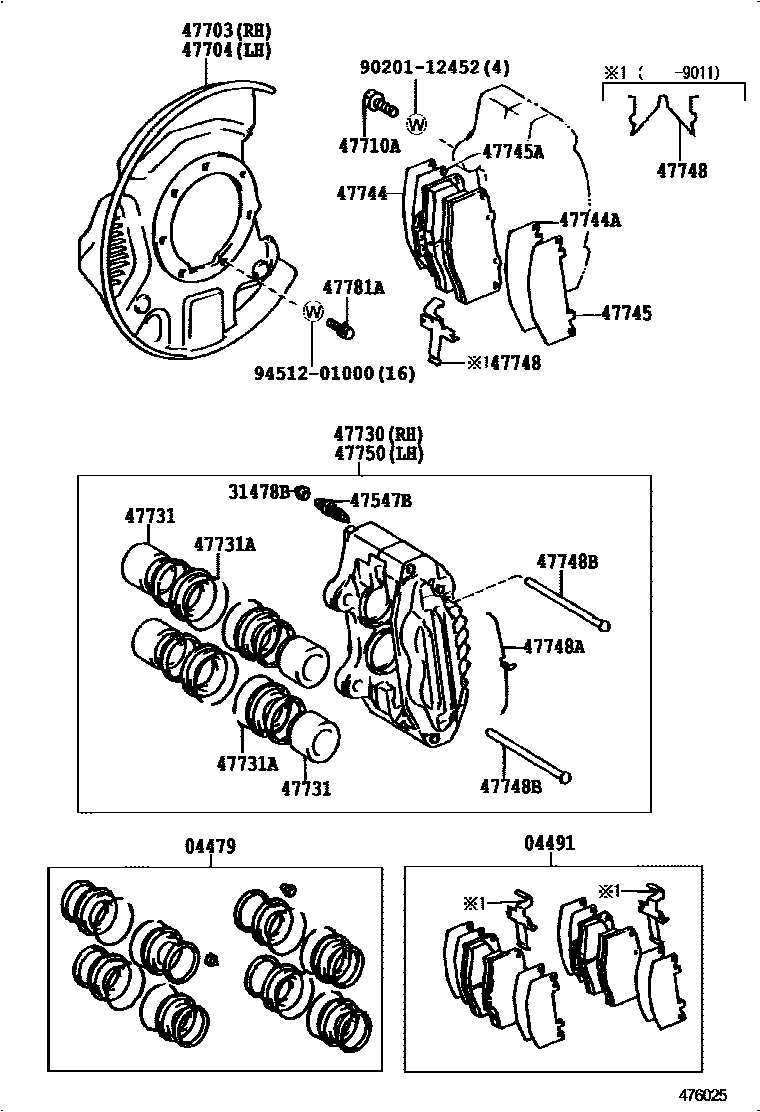

FRONT DISC BRAKE CALIPER & DUST COVER
04479CYLINDER KIT, DISC BRAKE, FRONT
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
*12-1.25PX38-23
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
47731PISTON, FRONT DISC BRAKE
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)
47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)
47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)
47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
47750CYLINDER ASSY, DISC BRAKE, LH
47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
sub90101-10204
9020112452
main90201-12452
9451201000
main94512-01000
21 parts on this diagram · 2 diagrams in section
