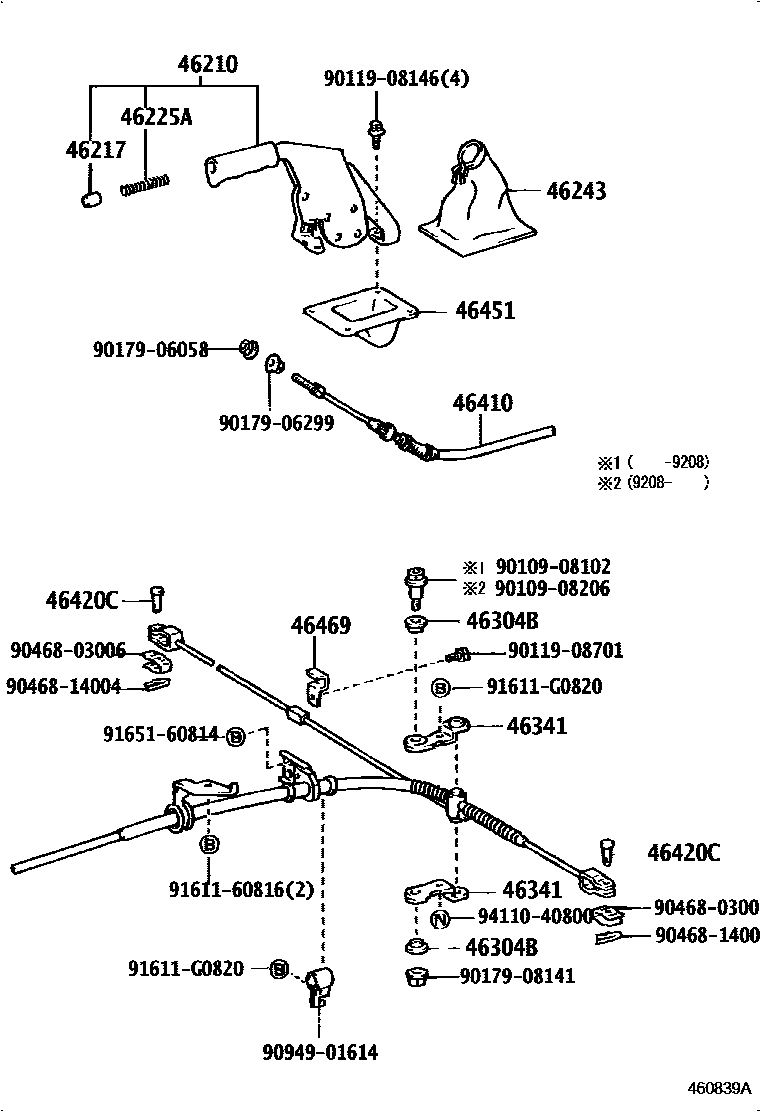

PARKING BRAKE & CABLE
46210LEVER ASSY, PARKING BRAKE
BLUISH GRAY,TRIM1#
BLACK,TRIM1#,4#
SABLE,TRIM4#
46217KNOB, PARKING BRAKE RELEASE ROD
sub46217-20020
46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
46243COVER, PARKING BRAKE LEVER
46304BBUSH(FOR PARKING BRAKE EQUALIZER)
46341EQUALIZER, PARKING BRAKE
46410CABLE ASSY, PARKING BRAKE, NO.1
W(REAR DISC BRAKE)
46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)
46469LEVER, CABLE GUIDE SUPPORT
9010908102
main90109-08102
9010908206
main90109-08206
9011908146
main90119-08146
9011908701
main90119-08701
9017906058
main90179-06058
9017906299
main90179-06299
9017908141
main90179-08141
9046803006
main90468-03006
9046814004
main90468-14004
9094901614
main90949-01614
9161160816
main91611-60816
91611G0820
main91611-G0820
9165160814
main91651-60814
9411040800
main94110-40800
24 parts on this diagram · 2 diagrams in section
