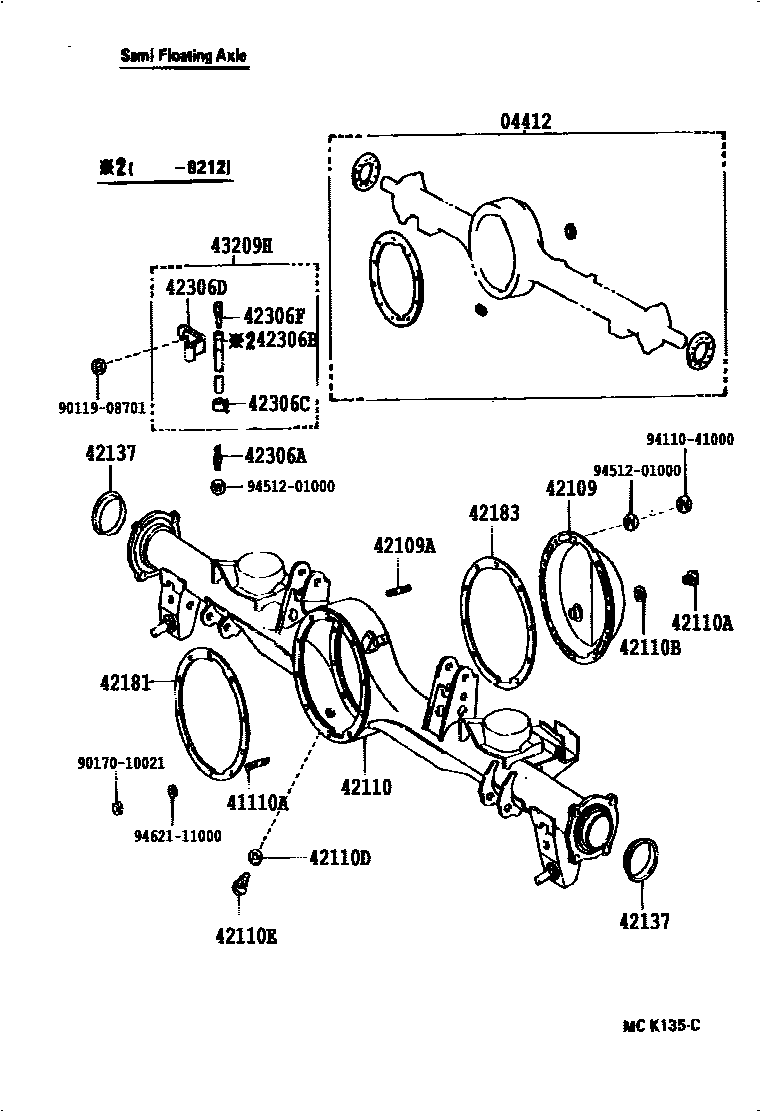

REAR AXLE HOUSING & DIFFERENTIAL
04412GASKET KIT, REAR DIFFERENTIAL CARRIER
W(*66 & *FFA)
W(*66 & *FFA & *DL)
W(*DL)
41110CARRIER ASSY, DIFFERENTIAL, REAR
41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
S=16 & 12.5,L=40.5,W(*DL)
S=16 & 12.5,L=40.5,W(DIFFERENTIAL LOCK)
S=16 & 12.5,L=40.5
S=18 & 12.5,L=53.5,W(*DL)
S=18 & 12.5,L=53.5
S=18 & 12.5,L=53.5,W(DIFFERENTIAL LOCK)
S=32 & 12.5,L=91.4,W(DIFFERENTIAL LOCK)
S=32 & 12.5,L=91.4,W(*DL)
S=28 & 12.5,L=63.5,W(*DL)
S=28 & 12.5,L=63.5,W(DIFFERENTIAL LOCK)
42109COVER SUB-ASSY, REAR AXLE HOUSING
42109ABOLT (FOR REAR AXLE HOUSING COVER SETTING)
42110APLUG (FOR REAR AXLE HOUSING FILLER)
42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)
42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
42110EPLUG (FOR REAR AXLE HOUSING DRAIN)
42137COLLAR, REAR AXLE HOUSING SIDE
42181GASKET, REAR DIFFERENTIAL CARRIER
W(*66 & *FFA)
W(*66 & *FFA & *DL)
W(*DL)
42183GASKET, REAR AXLE HOUSING COVER
42306AUNION (FOR REAR AXLE BREATHER HOUSE)
42306BHOSE (FOR REAR AXLE BREATHER)
W(7JJX15 DISC WHEEL)
42306CCLIP, HOSE (FOR REAR AXLE BREATHER HOSE)
sub96132-51100
42306DCLAMP (FOR REAR AXLE BRATHER HOSE)
42306FPLUG, BREATHER (FOR REAR AXLE)
43209HHOSE, FRONT AXLE BREATHER
W(7JJX15 DISC WHEEL)
9011908701
main90119-08701
9017010021
main90170-10021
9411041000
main94110-41000
9451201000
main94512-01000
9462111000
main94621-11000
24 parts on this diagram · 5 diagrams in section
