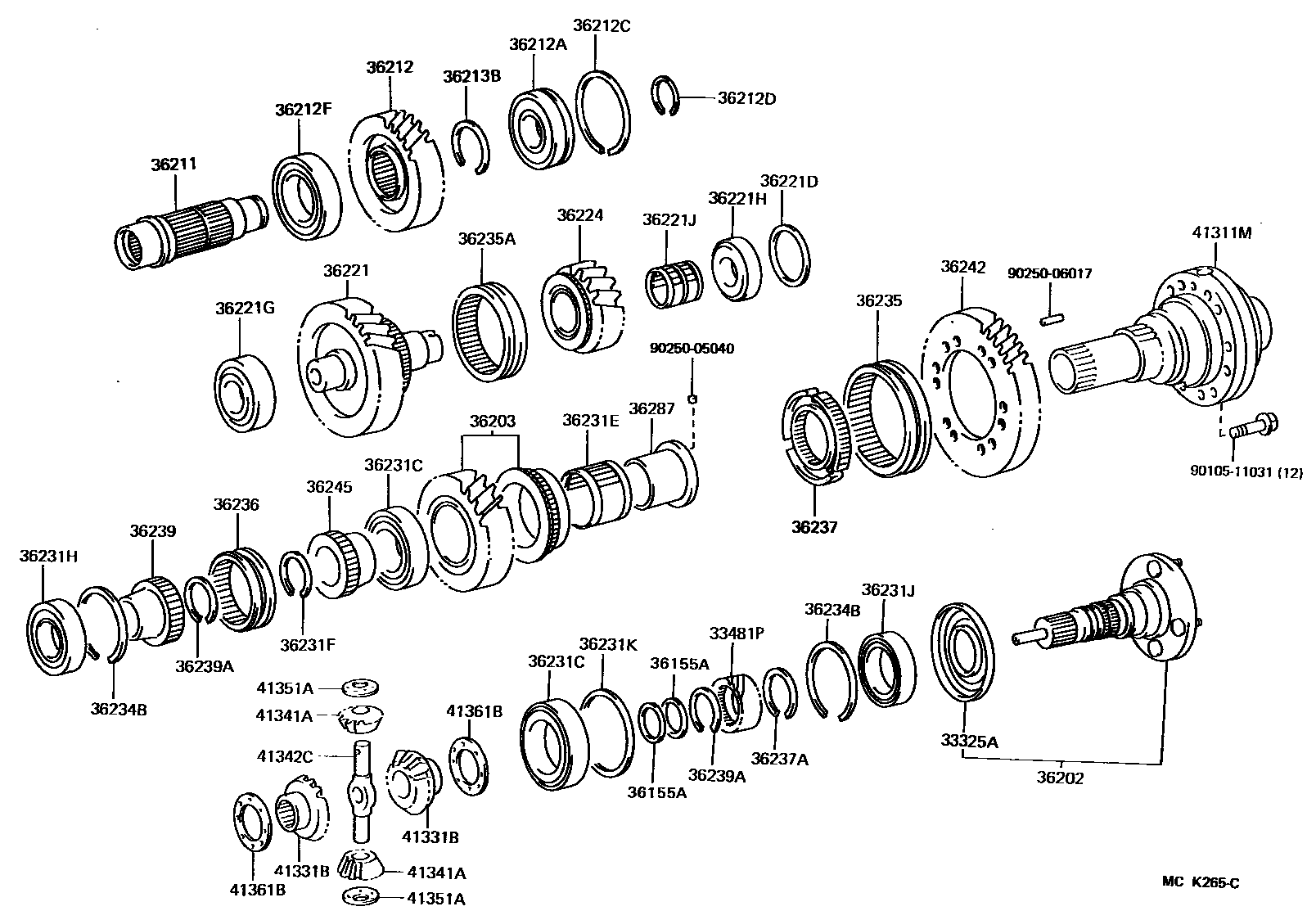

TRANSFER GEAR
33325ADEFLECTOR, DUST (FOR TRANSFER OUTPUT REAR SHAFT)
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
N=11,MARK 11:31-33
N=12,MARK 12:31-33
36155ARING, TRANSFER OIL SEAL
36202SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR
W(*VCD)
36203GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT
36211SHAFT, TRANSFER INPUT
36212GEAR, TRANSFER INPUT
36212CRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR)
T=1.65
36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)
T=2.0,MARK A
T=2.1,MARK B
T=2.2,MARK C
T=2.3,MARK D
T=2.4,MARK E
36212FBEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT)
36213BRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)
T=2.0,MARK A
T=2.1,MARK B
T=2.2,MARK C
T=2.3,MARK D
T=2.4,MARK E
T=2.5,MARK F
T=2.6,MARK G
T=2.7,MARK H
T=2.8,MARK J
36221DWASHER, PLATE(FOR TRANSFER IDLER GEAR)
T=0.29-0.31,MARK 2
T=0.44-0.46,MARK 3
T=2.39-2.41,MARK 4
T=2.59-2.61,MARK 5
T=2.79-2.81,MARK 6
T=2.99-3.01,MARK 7
T=3.19-3.21,MARK 8
T=3.39-3.41,MARK 9
T=3.59-3.61,MARK 10
T=3.79-3.81,MARK 11
T=3.99-4.01,MARK 12
T=0.55,MARK 13
36221GBEARING (FOR TRANSFER ILDER GEAR), FRONT
36221HBEARING (FOR TRANSFER ILDER GEAR), REAR
36221JBEARING (FOR TRANSFER IDLER GEAR LOWER)
36231CBEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)
FR
RR
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
FR
RR
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
T=1.20
T=2.0,MARK A
T=2.1,MARK B
T=2.2,MARK C
T=2.3,MARK D
T=2.4,MARK E
T=2.5,MARK F
T=2.6,MARK G
T=2.7,MARK H
T=2.8,MARK J
T=1.80,MARK A
T=1.95,MARK B
36231HBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT)
sub90363-40083
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
36231KWASHER, PLATE(FOR TRANSFER OUTPUT REAR CASE)
T=2.39-2.41,MARK L
T=2.59-2.61,MARK M
T=0.27-0.33,MARK B
T=0.415-0.485,MARK C
T=0.99-1.01,MARK D
T=1.19-1.21,MARK E
T=1.39-1.41,MARK F
T=1.59-1.61,MARK G
T=1.79-1.81,MARK H
T=1.99-2.01,MARK J
T=2.19-2.21,MARK K
T=0.55,MARK N
36234BRING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)
T=1.7,MARK A
T=1.8,MARK B
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36235ASLEEVE (FOR TRANSFER IDLER GEAR)
36236SLEEVE, FRONT DRIVE CLUTCH
36237HUB, TRANSFER CLUTCH
36237ARING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)
T=1.95,MARK 1
T=2.05,MARK 2
T=2.15,MARK 3
T=2.25,MARK 4
36239HUB, TRANSFER DRIVE CLUTCH
36239ARING, SHAFT SNAP(FOR TRANSFER DRIVE CLUTCH HUB)
T=1.8,MARK A
T=1.9,MARK B
T=2.0,MARK C
T=2.1,MARK D
T=2.2,MARK E
T=1.5
36242GEAR, TRANSFER LOW
sub36242-60170
36245PIECE, TRANSFER FRONT DRIVE GEAR
41341APINION, CENTER DIFFERENTIAL
41342CSHAFT, CENTER DIFFERENTIAL PINION
41351AWASHER, CENTER DIFFERENTIAL PINION TRUST
41361BWASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1
9010511031
main90105-11031
9025005040
main90250-05040
9025006017
main90250-06017
44 parts on this diagram · 2 diagrams in section
