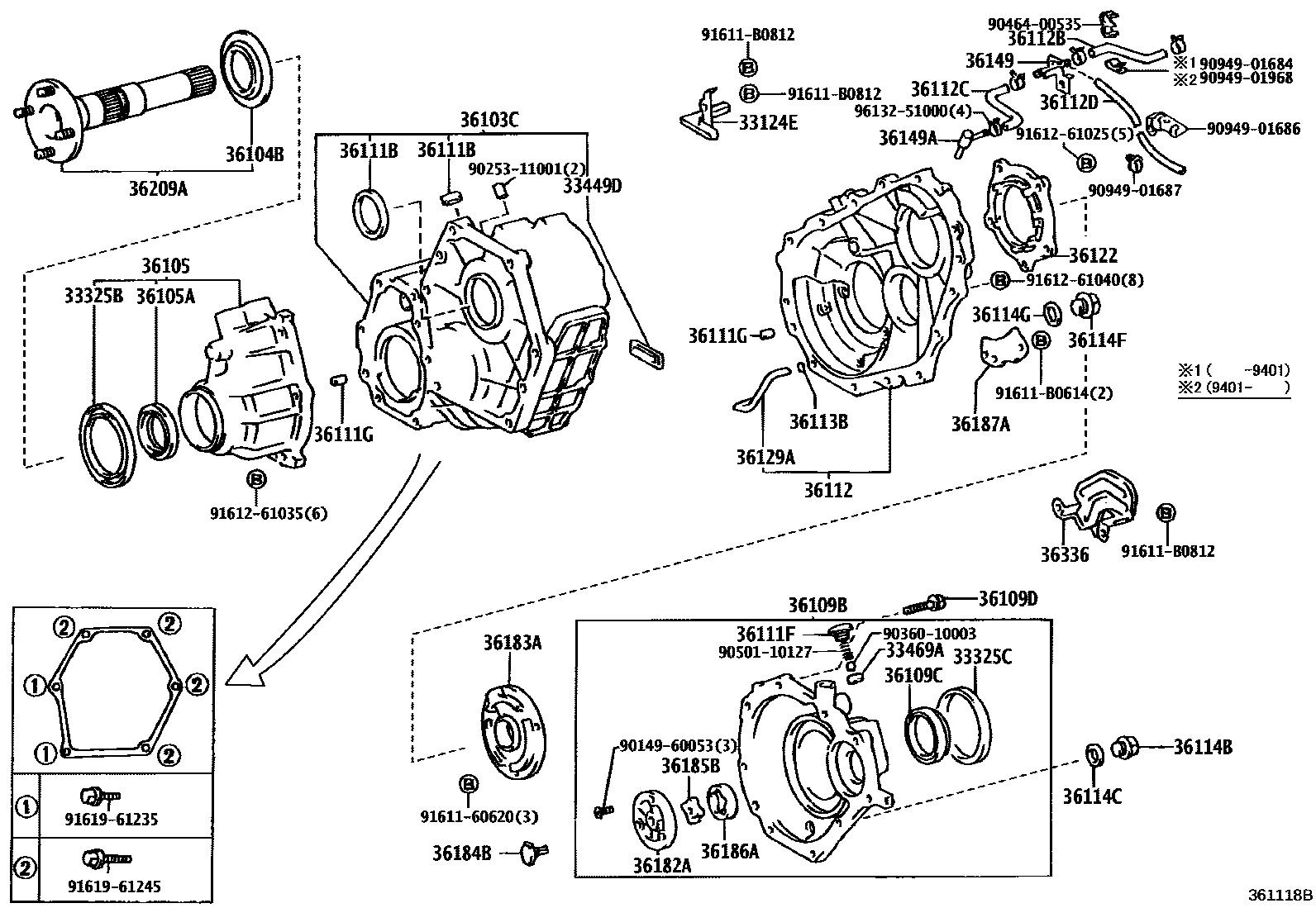

TRANSFER CASE & EXTENSION HOUSING

0001 1HF2A 0002 1HF2AV

33124EPIPE, OIL RECEIVER(FOR TRANSFER)

main33124-60030iFJ80199001-199801

33325BDEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING)

main33325-60050iFJ80199001-199801

33325CDEFLECTOR, DUST (FOR TRANSFER EXTENSION REAR HOUSING)

main33325-60070iFJ80199001-199801

33449DMAGNET (FOR TRANSFER CASE)

main33449-60010iFJ80199001-199801

33469ASEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING)

main33469-60010iFJ80199001-199801

36103CCASE, TRANSFER, FRONT

main36103-60230iFJ80199001-199801

36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

main33325-60040iFJ80199001-199801

36105HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT

main36105-60020iFJ80199001-199801

36105ASEAL, OIL (TRANSFER EXTENSION FRONT HOUSING SUB-ASSY)

main90311-50014iFJ80199001-199801

36109BHOUSING SUB-ASSY, TRANSFER EXTENSION, REAR

main36109-60020iFJ80199001-199501

sub36109-60061

sub33325-60110

main36109-60030iFZJ80199208-199501

W(*VCD)

sub36109-60031

sub90119-10311

main36109-60031iFZJ80199501-199801

36109CSEAL, OIL (TRANSFER EXTENSION REAR HOUSING SUB-ASSY)

main90311-58008iFZJ80199001-199801

36109DBOLT (FOR TRANSFER EXTENSION REAR HOUSING)

main90119-10180iFJ80199001-199801

*10-1.25PX75-30

main90119-10311iFZJ80199501-199801

*10-1.25PX97-30

main90119-10390iFZJ80199001-199801

*10-1.25PX35-30

36111BSEAL, OIL (FOR TRANSFER CASE)

main90310-16001iFJ80199001-199801

LEVER SIDE

main90311-48016iFJ80199001-199604

SHAFT SIDE

main90311-48018iFZJ80199605-199801

SHAFT SIDE

sub90311-48025

36111FPLUG (FOR TRANSFER CASE)

main90341-18039iFJ80199001-199801

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-12002iFJ80199001-199801

L=16,OD=12

36112CASE, TRANSFER, REAR

main36104-60020iFZJ80199001-199501

main36104-60030iFZJ80199208-199501

W(*VCD)

main36104-60030iFZJ80199501-199801

36112BHOSE, NO.1 (FOR TRANSFER REAR CASE)

main90445-10075iFZJ80199501-199801

main90445-11111iFJ80199001-199208

main90445-11120iFZJ80199208-199308

main90445-11122iFZJ80199308-199501

36112CHOSE, NO.2 (FOR TRANSFER REAR CASE)

main90445-11108iFJ80199001-199501

main90445-11134iFZJ80199501-199801

36112DHOSE, NO.3 (FOR TRANSFER REAR CASE)

main90445-08277iFZJ80199001-199801

36113BRING, O (FOR TRANSFER CASE PLUG)

main90301-07012iFJ80199001-199501

ID=6.0

main90301-09015iFZJ80199208-199501

ID=9.5,W(*VCD)

main90301-09015iFZJ80199501-199801

ID=9.5

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iFJ80199001-199801

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008iFJ80199001-199801

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18057iFJ80199001-199801

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main90430-18008iFJ80199001-199801

36122COVER, TRANSFER CASE, NO.2

main36122-36010iFJ80199001-199801

36129ATUBE, TRANSFER OIL

main36129-60030iFJ80199001-199501

main36129-60040iFZJ80199208-199501

W(*VCD)

main36129-60040iFZJ80199501-199801

36149PIPE, TRANSFER BREATHER

main36149-60010iFJ80199001-199801

36149APIPE, TRANSFER BREATHER, NO.2

main36149-60020iFJ80199002-199801

main90407-07001iFJ80199001-199002

sub36149-60020

36182ACOVER, TRANSFER OIL PUMP

main36182-60010iFJ80199001-199212

sub36182-60011

main36182-60011iFZJ80199208-199212

W(FULL TIME 4WD)

main36182-60011iFZJ80199212-199801

36183APLATE, TRANSFER OIL PUMP

main36183-60010iFJ80199001-199212

sub36183-60011

main36183-60011iFZJ80199208-199212

W(FULL TIME 4WD)

sub36183-60012

main36183-60011iFZJ80199212-199401

sub36183-60012

main36183-60012iFZJ80199401-199801

36184BSHAFT, TRANSFER OIL PUMP DRIVE

main36184-60010iFJ80199001-199801

sub36184-60060

36185BROTOR, TRANSFER OIL PUMP DRIVE

main36185-60010iFZJ80199501-199801

main36185-60030iFZJ80199001-199501

36186AROTOR, TRANSFER OIL PUMP DRIVEN

main36186-60010iFJ80199001-199501

main36186-60020iFZJ80199208-199501

W(*VCD)

main36186-60020iFZJ80199501-199801

36187ASTRAINR, TRANSFER OIL, NO.1

main36187-60010iFJ80199001-199501

main36187-60070iFZJ80199208-199501

W(*VCD)

main36187-60070iFZJ80199501-199801

36209ASHAFT, TRANSFER OUTPUT, FRONT

main36209-60020iFJ80199001-199801

36336INSULATOR, TRANSFER HEAT

main36336-60010iFJ80199001-199208

9014960053

main90149-60053

9025311001

main90253-11001

9036010003

main90360-10003

9046400535

main90464-00535

9050110127

main90501-10127

9094901684

main90949-01684

9094901686

main90949-01686

9094901687

main90949-01687

9094901968

main90949-01968

9161160620

main91611-60620

91611B0614

main91611-B0614

91611B0812

main91611-B0812

9161261025

main91612-61025

9161261035

main91612-61035

9161261040

main91612-61040

9161961235

main91619-61235

9161961245

main91619-61245

9613251000

main96132-51000

54 parts on this diagram · 2 diagrams in section
