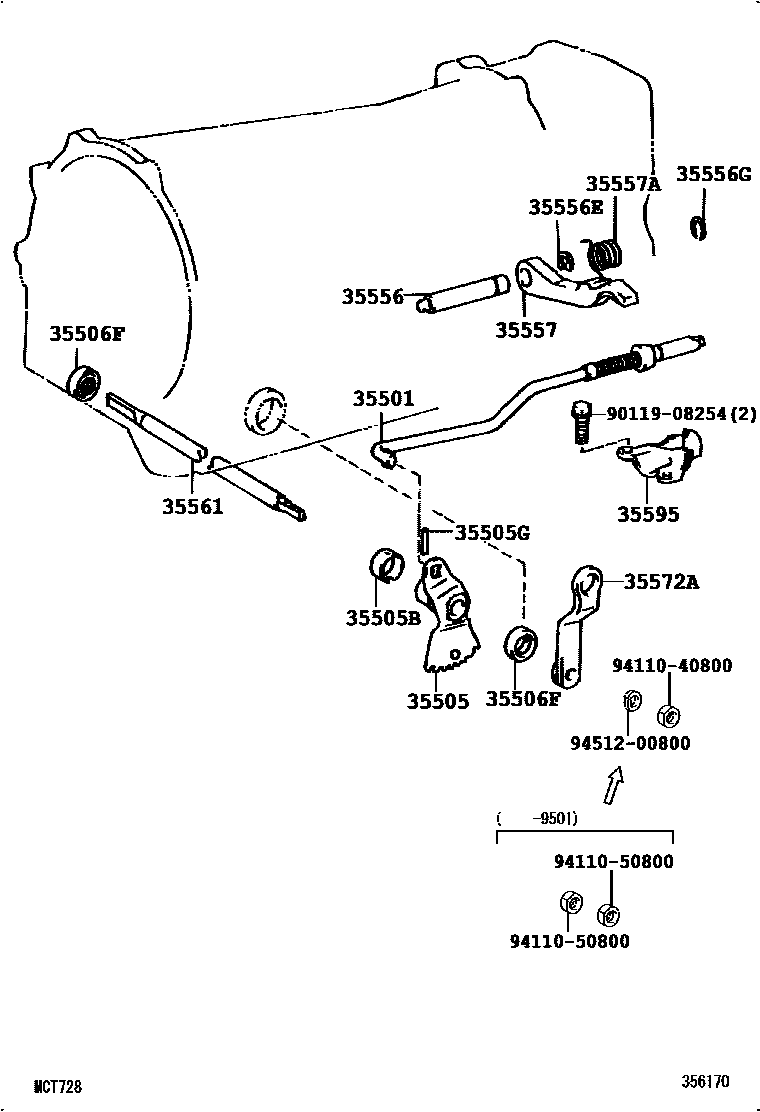

THROTTLE LINK & VALVE LEVER (ATM)

0001 1 0002 1

35501ROD SUB-ASSY, PARKING LOCK

main35501-36010iFJ80,FZJ80199001-199501

main35501-60010iFZJ80199501-199801

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-30020iFZJ80199501-199801

main35505-36030iFZJ80199208-199501

main35505-60010iFJ80199001-199208

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iFZJ80199501-199801

main90560-20008iFJ80199001-199501

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iFZJ80199501-199801

main90254-04012iFJ80,FZJ80199001-199501

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iFJ80199001-199801

35556SHAFT, PARKING LOCK PAWL

main35556-30020iFZJ80199501-199801

main35556-36010iFJ80,FZJ80199001-199501

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iFZJ80199501-199801

35556GRING, SNAP (FOR PARKING LOCK PAWL SHAFT)

main96150-01600iFJ80199001-199208

35557PAWL, PARKING LOCK

main35557-36010iFJ80,FZJ80199001-199501

main35557-60020iFZJ80199501-199801

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iFZJ80199501-199801

main90508-30003iFJ80,FZJ80199001-199501

sub90508-30010

35561SHAFT, MANUAL VALVE LEVER

main35561-30070iFZJ80199501-199801

main35561-60010iFJ80199001-199208

main35561-60020iFZJ80199208-199501

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-60050iFJ80,FZJ80199001-199501

main35572-60060iFZJ80199501-199801

35595BRACKET, PARKING LOCK PAWL

main35595-36010iFJ80,FZJ80199001-199501

main35595-60010iFZJ80199501-199801

9011908254

main90119-08254

9411040800

main94110-40800

9411050800

main94110-50800

9451200800

main94512-00800

17 parts on this diagram · 2 diagrams in section
