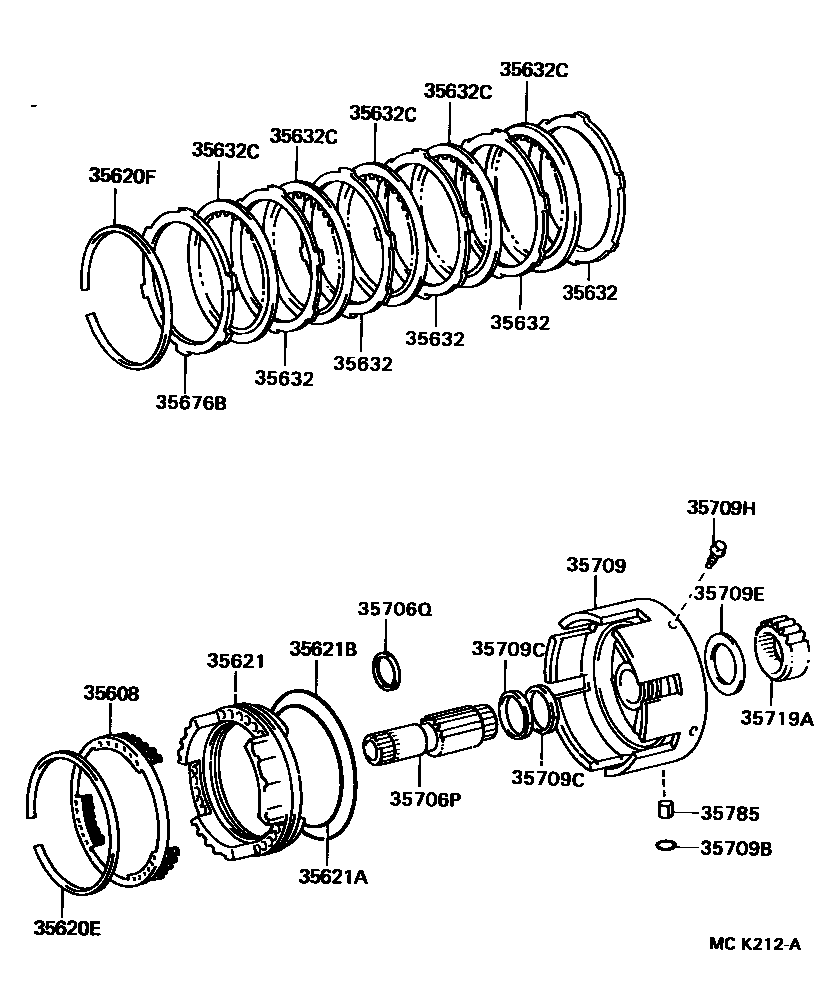

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35621PISTON, BRAKE, NO.1
35621ARING, O (FOR BRAKE PISTON OUTER)
35621BRING, O (FOR BRAKE PISTON INNER)
35676FLANGE, BRAKE (FOR 2ND BRAKE)
T=3.0
35676BFLANGE, BRAKE, NO.1
T=5.0
T=5.2
T=5.4
T=5.6
35706PGEAR SUB-ASSY, FRONT PLANETARY SUN
35706QRING, SHAFT SNAP (FOR FRONT PLANETARY SUN GEAR)
35709BRING, O (FOR CENTER SUPPORT)
35709CRING, OIL SEAL (FOR CENTER SUPPORT)
35709EWASHER (FOR CENTER SUPPORT)
T=1.5
T=1.8
T=2.1
T=2.4
T=2.7
35785RETAINER, CENTER SUPPORT RING
19 parts on this diagram · 2 diagrams in section
