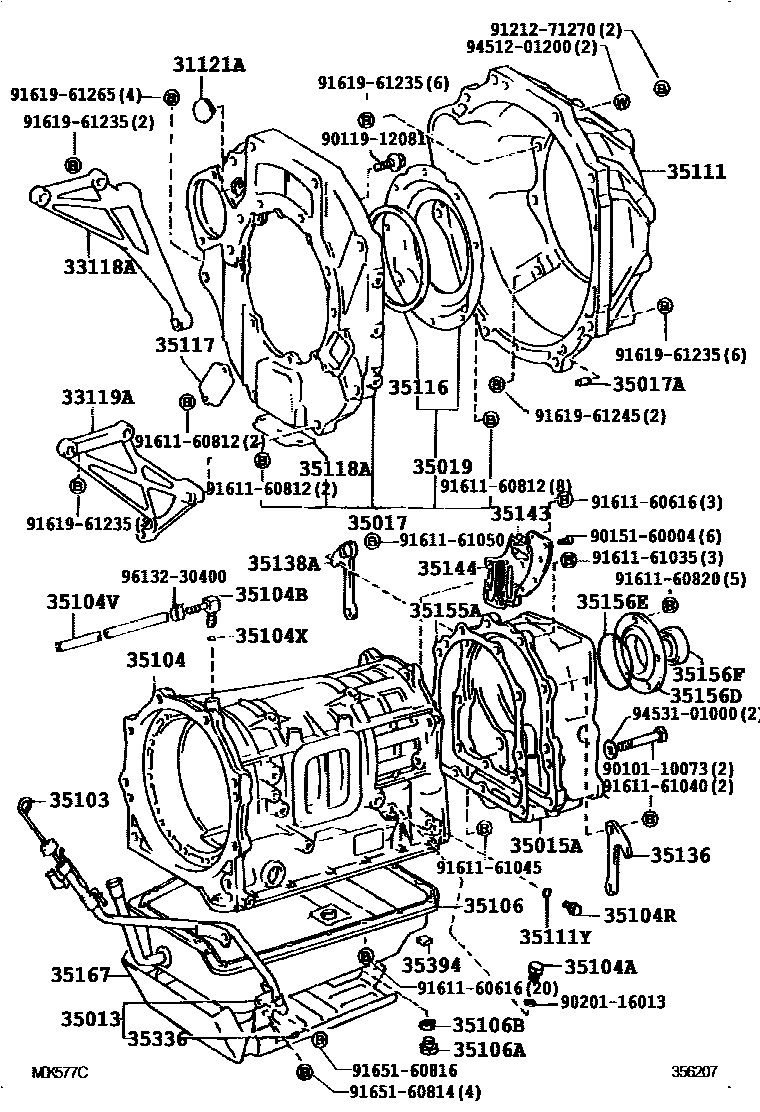

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A440F 0002 1A442F 0003 1A343F

31121ACOVER, TRANSMISSION HOUSING ADAPTER

main31121-60030iFJ80199001-199208

33118APLATE, STIFFENER, RH(ATM)

main33118-60020iFJ80199001-199208

33119APLATE, STIFFENER, LH(ATM)

main33119-60020iFJ80199001-199208

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-60050iFJ80199001-199208

main35013-60100iFZJ80199208-199501

main35013-60130iFZJ80199501-199801

35015AADAPTER SUB-ASSY, TRANSMISSION CASE, REAR

main35015-60020iFJ80199001-199208

sub35015-60021

sub90119-08A43

main35015-60050iFZJ80199208-199501

sub35015-60051

sub90119-08A43

main35015-60070iFZJ80199501-199801

35017ADAPTER SUB-ASSY, TRANSMISSION HOUSING, FRONT

main35017-60020iFJ80199001-199208

35017APIN, STRAIGHT(FOR TRANSMISSION HOUSING ADAPTER, FRONT)

main90250-10192iFJ80199001-199208

35019COVER SUB-ASSY, TRANSMISSION CASE DUST

main35019-60010iFJ80199001-199208

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-60040iFJ80199001-199208

main35103-60070iFZJ80199208-199501

main35103-60090iFZJ80199501-199601

main35103-60100iFZJ80199601-199603

main35103-60101iFZJ80199603-199801

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-28040iFZJ80199501-199801

main35104-60030iFJ80199001-199104

sub35104-60031

main35104-60031iFJ80199104-199208

main35104-60050iFJ80199001-199104

W(CRUISE CONTROL)

sub35104-60051

main35104-60051iFJ80199104-199208

W(CRUISE CONTROL)

main35104-60080iFZJ80199208-199501

sub35104-60081

sub35517-36011

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iFZJ80199501-199801

main90341-16010iFZJ80199001-199501

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03094iFJ80,FZJ80199001-199501

main90930-03098iFZJ80199501-199801

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-08001iFZJ80199001-199501

35104VHOSE (FOR BREATHER PLUG)

main90445-11072iFJ80199001-199208

main90445-11114iFZJ80199208-199501

main90445-11125iFZJ80199501-199801

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iFZJ80199001-199501

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-60030iFZJ80199208-199501

main35106-60080iFJ80199001-199207

sub35106-60090

main35106-60090iFJ80199207-199208

main35106-60100iFZJ80199501-199801

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iFZJ80199501-199801

sub90341-10011

main90341-18057iFJ80199001-199501

35106BGASKET, DRAIN PLUG (ATM)

main12157-10010iFJ80,FZJ80199001-199501

main35178-30010iFZJ80199501-199801

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-60050iFJ80199001-199208

main35111-60070iFZJ80199208-199407

sub35111-60071

main35111-60071iFZJ80199407-199501

sub35111-60072

main35111-60090iFZJ80199501-199801

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iFJ80199001-199801

35116SEAL, TRANSMISSION CASE DUST

main35116-60010iFJ80199001-199208

35117COVER, ADAPTER, NO.1

main35117-60010iFJ80199001-199208

35118ACOVER, ADAPTER, NO.2

main35118-60010iFJ80199001-199208

35136HANGER, TRANSMISSION,NO.1

main35136-60020iFJ80,FZJ80199001-199501

main35136-60050iFZJ80199501-199801

35138AHANGER, TRANSMISSION, NO.2

main35136-60020iFJ80,FZJ80199001-199501

35143COVER, TRANSMISSION CASE, REAR

main35143-36010iFJ80,FZJ80199001-199407

main35143-36011iFZJ80199407-199501

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-36010iFJ80199001-199208

sub35144-60010

main35144-60010iFZJ80199208-199407

main35144-60011iFZJ80199407-199501

35155AGASKET, TRANSMISSION CASE ADAPTER

main35182-36010iFJ80199001-199208

sub35182-60010

main35182-60010iFZJ80199208-199501

35156DCOVER, TRANSMISSION CASE REAR ADAPTER

main35156-60010iFJ80,FZJ80199001-199501

35156ERING, O(FOR TRANSMISSION CASE REAR ADAPTER COVER)

main90301-81005iFJ80199001-199501

35156FSEAL, OIL(FOR TRANSMISSION CASE REAR ADAPTER COVER)

main90311-48016iFJ80199001-199801

35167PROTECTOR, TRANSMISSION OIL PAL

main35167-60020iFJ80199001-199207

sub35167-60030

main35167-60030iFJ80,FZJ80199207-199302

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iFJ80,FZJ80199001-199801

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iFJ80199001-199801

9010110073

main90101-10073

9011912081

main90119-12081

9015160004

main90151-60004

9020116013

main90201-16013

9121271270

main91212-71270

9161160616

main91611-60616

9161160812

main91611-60812

9161160820

main91611-60820

9161161035

main91611-61035

9161161040

main91611-61040

9161161045

main91611-61045

9161161050

main91611-61050

9161961235

main91619-61235

9161961245

main91619-61245

9161961265

main91619-61265

9165160814

main91651-60814

9165160816

main91651-60816

9451201200

main94512-01200

9453101000

main94531-01000

9613230400

main96132-30400

54 parts on this diagram · 3 diagrams in section
