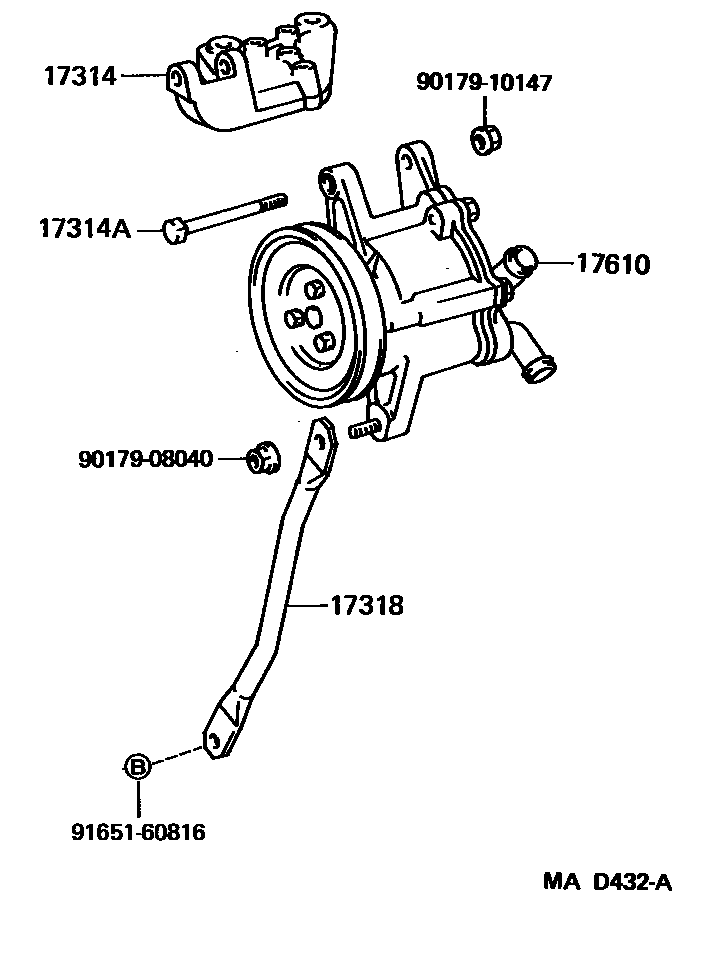

AIR PUMP

17314BRACKET, AIR PUMP

main17314-61040i3FE..FJ80199001-199208

17314ABOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)

main90105-10221i3FE..FJ80199001-199208

17318BAR, AIR PUMP ADJUSTING, NO.2

main17318-61060i3FE..FJ80199001-199208

17610PUMP ASSY, AIR

main17610-61050i3FE..FJ80199001-199208

9017908040

main90179-08040

9017910147

main90179-10147

9165160816

main91651-60816

7 parts on this diagram · 1 diagram in section
