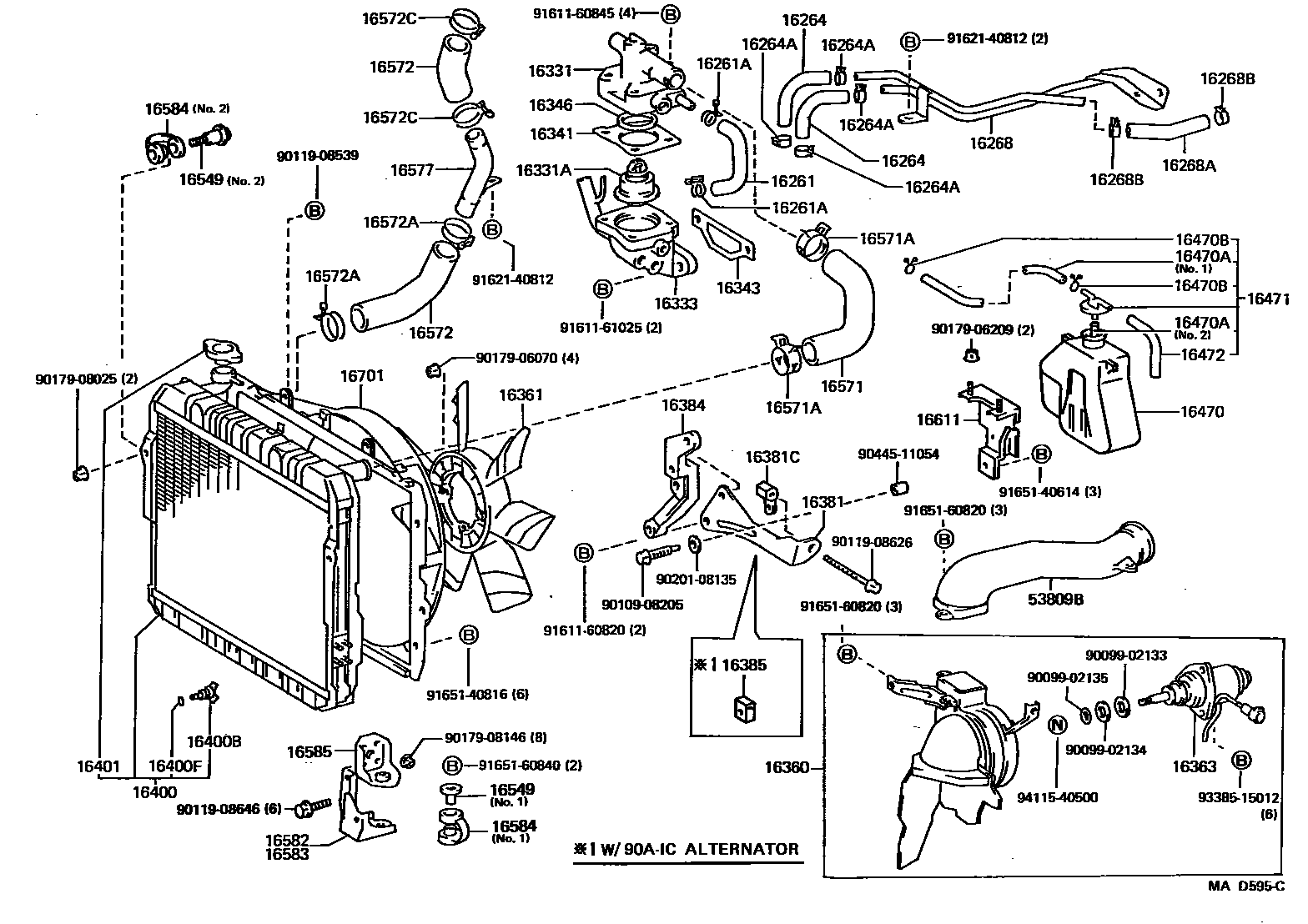

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51300
16268PIPE, WATER BY-PASS, NO.1
16268AHOSE(FOR WATER BY-PASS PIPE)
16268BCLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)
sub96135-51300
16331ATHERMOSTAT
*WAX 88-100
*WAX 82-95
16333HOUSING, WATER OUTLET
16341GASKET, WATER OUTLET
16343GASKET, WATER OUTLET HOUSING
16346GASKET, THERMOSTAT
16360BLOWER ASSY, W/SHROUD
16363MOTOR, COOLING FAN
16381BAR, FAN BELT ADJUSTING
W(12V-90AIC ALTERNATOR)
16381CBAR, FAN BELT ADJUSTING, NO.2
16384BRACKET, FAN BELT ADJUSTING BAR
16385SLIDER, FAN BELT ADJUSTING
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
sub16401-54750
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=600
L=600,NO.2
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16549COLLAR, RADIATOR SUPPORT, NO.2
NO.1
NO.2
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-41002
16572HOSE, RADIATOR, OUTLET
WATER PUMP SIDE
RADIATOR SIDE
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
16582BRACKET, RADIATOR, NO.1
16583BRACKET, RADIATOR, NO.2
16584INSULATOR, RADIATOR MOUNTING
NO.1
16585BRACKET, RADIATOR, NO.3
16611BRACKET, RADIATOR RESERVE TANK
16701SHROUD SUB-ASSY, FAN
53809BDUCT SUB-ASSY, COOLING FAN AIR
9009902133
main90099-02133
9009902134
main90099-02134
9009902135
main90099-02135
9010908205
main90109-08205
9011908539
main90119-08539
9011908626
main90119-08626
9011908646
main90119-08646
9017906070
main90179-06070
9017906209
main90179-06209
9017908025
main90179-08025
9017908146
main90179-08146
9020108135
main90201-08135
9044511054
main90445-11054
9161160820
main91611-60820
9161160845
main91611-60845
9161161025
main91611-61025
9162140812
main91621-40812
9165140614
main91651-40614
9165140816
main91651-40816
9165160820
main91651-60820
9165160840
main91651-60840
9338515012
main93385-15012
9411540500
main94115-40500
66 parts on this diagram · 4 diagrams in section
