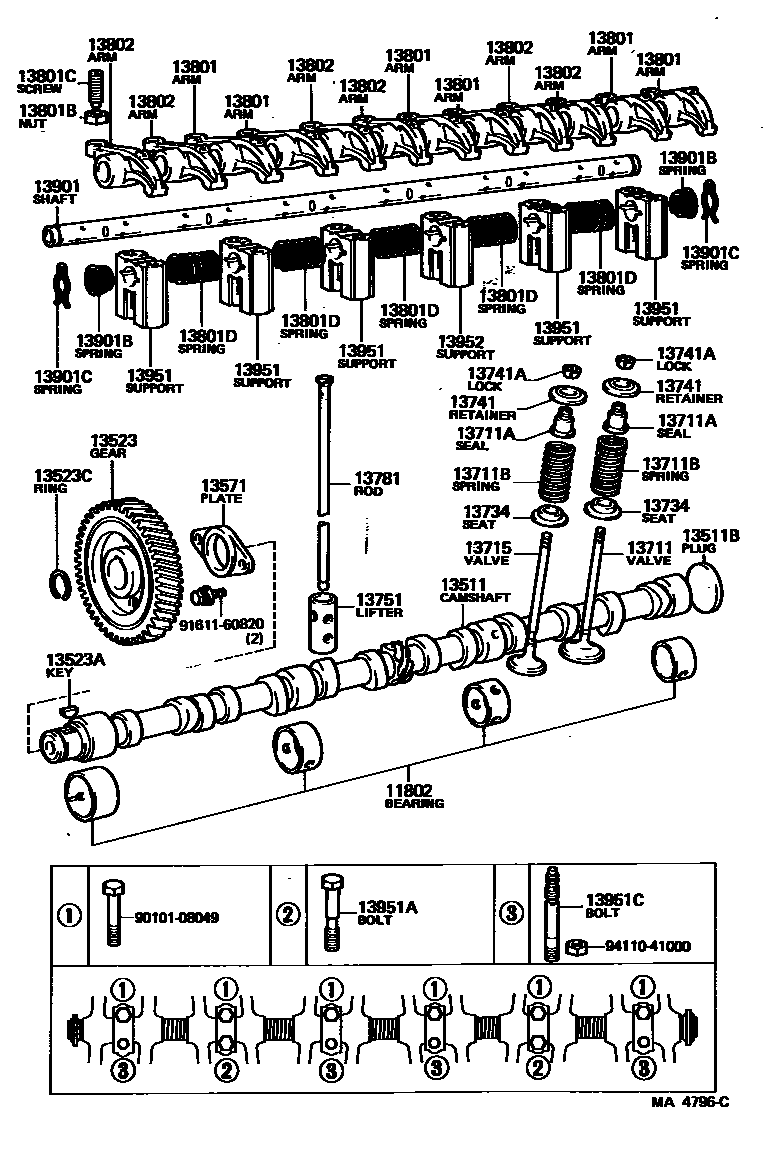

CAMSHAFT & VALVE
11802BEARING SET, CAMSHAFT
STD
U/S 0.25
U/S 0.50
13511BPLUG, EXPANSION(FOR CAMSHAFT)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13523CRING, SNAP CAMSHAFT(FOR TIMING GEAR)
13571PLATE, CAMSHAFT THRUST
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
INTAKE SIDE
EXHAUST SIDE
13711BSPRING, COMPRESSION(FOR INNER)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
INTAKE
EXHAUST
13741ALOCK, VALVE SPRING RETAINER
EXHAUST
INTAKE
13751LIFTER, VALVE
STD,STD
O/S 0.05,O/S 0.05
13781ROD, VALVE PUSH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
13801CSCREW, VALVE ADJUSTING
13801DSPRING, COMPRESSION(FOR ROCKER ARM)
13802ARM SUB-ASSY, VALVE ROCKER, NO.2
13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901BSPRING, CONICAL(FOR VALVE ROCKER SHAFT)
13901CSPRING, RETAINER(FOR VALVE ROCKER SHAFT)
13951SUPPORT, VALVE ROCKER, NO.1
13951ABOLT(FOR ROCKER SUPPORT SET)
*10-1.25PX72-20
*10-1.25PX74-20
13951CBOLT, STUD(FOR ROCKER SUPPORT)
13952SUPPORT, VALVE ROCKER, NO.2
9010108049
main90101-08049
9161160820
main91611-60820
9411041000
main94110-41000
31 parts on this diagram · 2 diagrams in section
