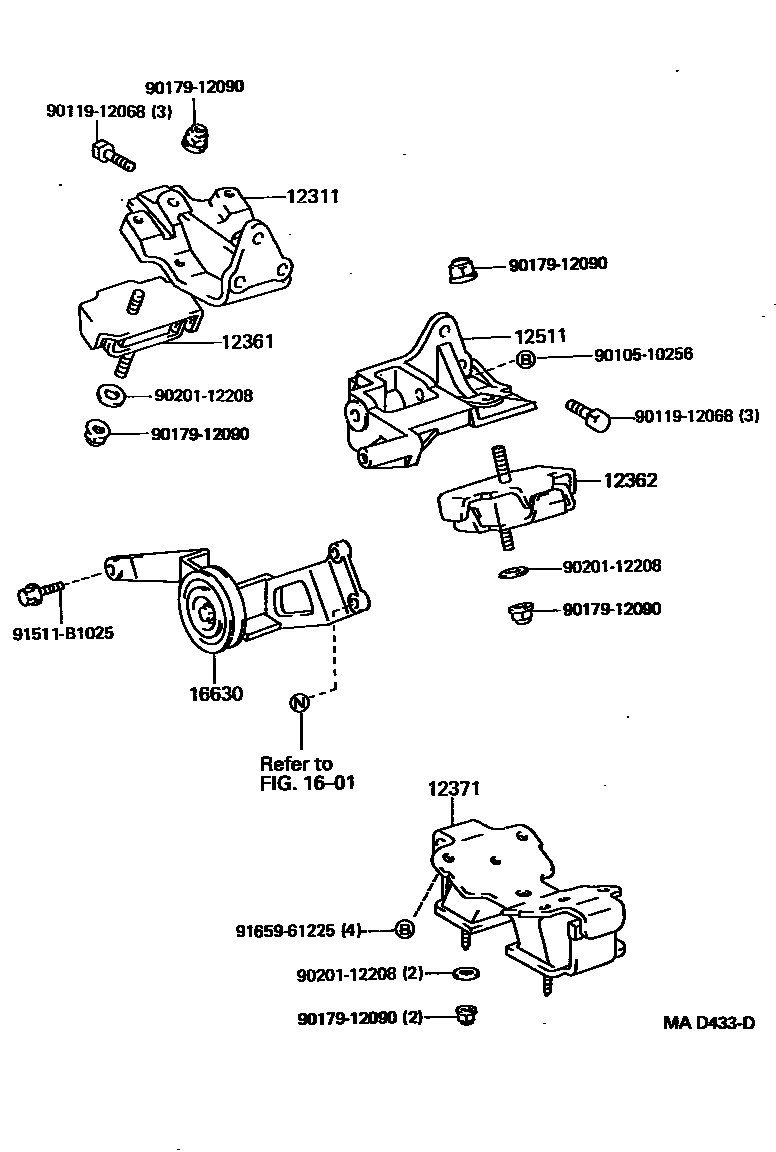

MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-61090i3FE..FJ80199001-199208

main12311-66030i1FZFE..FZJ80199208-199801

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-17011i1FZFE..FZJ80199505-199801

main12361-61050i3FE..FJ80199001-199208

main12361-66030i1FZFE..FZJ80199208-199505

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-61010i3FE..FJ80199001-199208

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-61060i3FE..FJ80199001-199208

sub12371-58060

main12371-66030i1FZFE..FZJ80199208-199801

12511BRACKET, ALTERNATOR, NO.1

main12511-61061i3FE..FJ80199001-199208

main12511-61070i3FE..FJ80199001-199201

W(12V-90AIC ALTERNATOR)

main12511-66010i1FZFE..FZJ80199208-199801

1601

16630PULLEY ASSY, IDLER

main16630-61030i3FE..FJ80199001-199208

9010510256

main90105-10256

9011912068

main90119-12068

9017912090

main90179-12090

9020112208

main90201-12208

91511B1025

main91511-B1025

9165961225

main91659-61225

13 parts on this diagram · 2 diagrams in section
