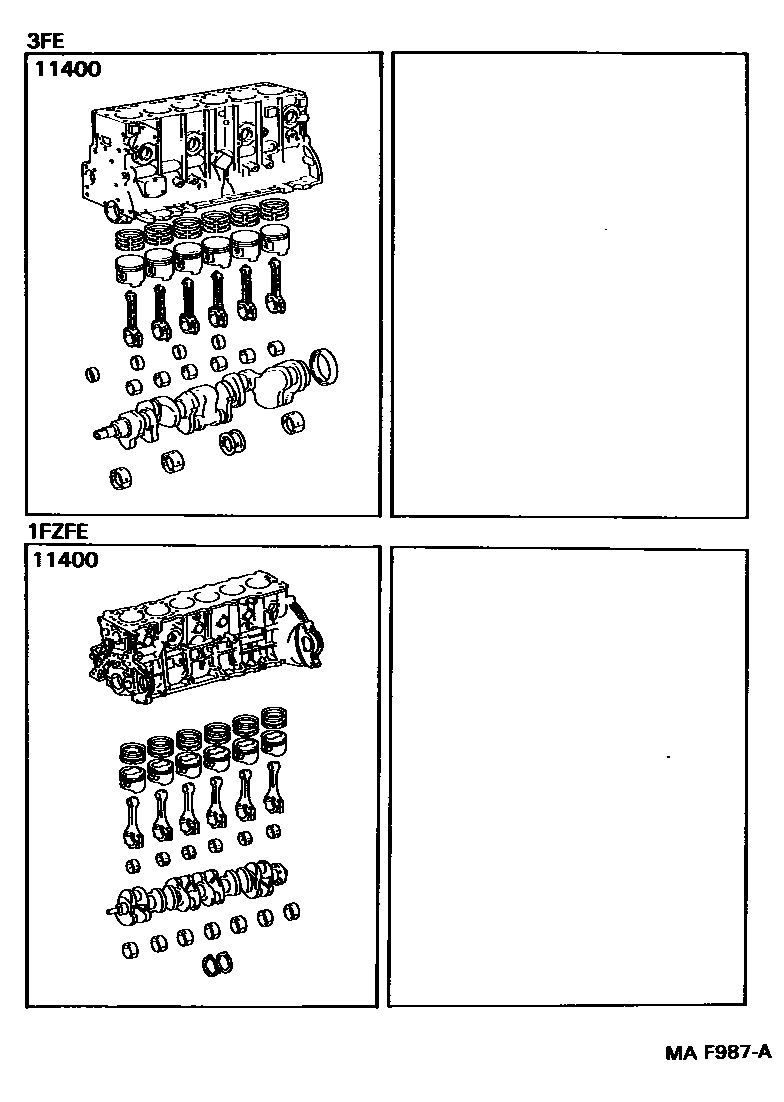

SHORT BLOCK ASSEMBLY

Parts diagram

11400BLOCK ASSY, SHORT

main11400-61122i199001-199208

main11400-66040i199208-199711

main11400-66041i199711-199801

1 parts on this diagram · 1 diagram in section
