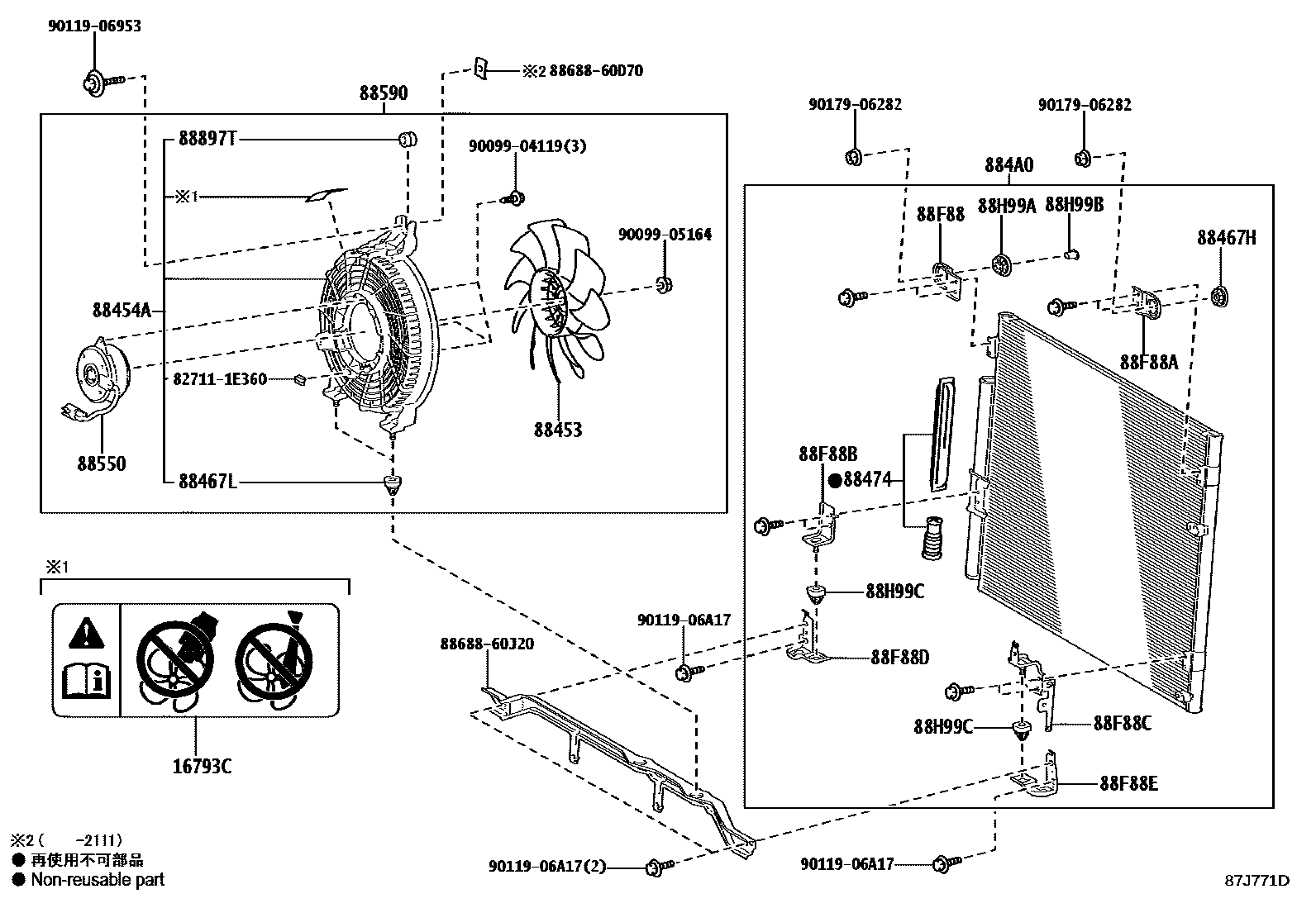

HEATING & AIR CONDITIONING - COOLER PIPING
16793CLABEL, COOLING FAN CAUTION
SUN VISOR-WITH(MIRROR & BULB LAMP & SLIDE )&AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)
88453FAN, COOLING (FOR CONDENSER)
SUN VISOR-WITH(MIRROR & BULB LAMP & SLIDE )&AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)
88454ASHROUD, FAN
SUN VISOR-WITH(MIRROR & BULB LAMP & SLIDE )&AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)
sub88454-60111
SUN VISOR-WITH(MIRROR & BULB LAMP & SLIDE )&AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)
88467HCUSHION, CONDENSER BRACKET, NO.1
main88467-35040iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
88467LCUSHION, COOLER, NO.1
SUN VISOR-WITH(MIRROR & BULB LAMP & SLIDE )&AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)
88474DRYER, COOLER
884A0CONDENSER ASSY, COOLER
main884A0-60030iVJA300..5S..S;VJA300..S..GEN;FJA300..7S..Z..GEN;FJA300..Z..(ARL,EUR);VJA300..(A,V,Z)..(EUR,GEN);FJA300..(A,G,S,V)..(ARL,EUR,GEN)202104-202411
INDIA SPEC
88550MOTOR ASSY, BLOWER (FOR CONDENSER)
SUN VISOR-WITH(MIRROR & BULB LAMP & SLIDE )&AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)
88590BLOWER ASSY, W/SHROUD
SUN VISOR-WITH(MIRROR & BULB LAMP & SLIDE )&AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)
sub88590-60111
SUN VISOR-WITH(MIRROR & BULB LAMP & SLIDE )&AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)
88897TGROMMET, COOLER
SUN VISOR-WITH(MIRROR & BULB LAMP & SLIDE )&AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)
SUN VISOR-WITH(MIRROR & BULB LAMP & SLIDE )&AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)
88F88BRACKET, CONDENSER, NO.1
main88688-60C40iVJA300..5S..S;VJA300..S..GEN;FJA300..Z..EUR;FJA300..7S..(EUR,GEN);VJA300..(A,V,Z)..(EUR,GEN);FJA300..5S..(A,G,S,V)..(EUR,GEN)202411
INDIA SPEC
88F88ABRACKET, CONDENSER, NO.2
INDIA SPEC
main88688-60C50iVJA300..5S..S;VJA300..S..GEN;FJA300..7S..Z..GEN;FJA300..Z..(ARL,EUR);VJA300..(A,V,Z)..(EUR,GEN);FJA300..(A,G,S,V)..(ARL,EUR,GEN)202104-202411
88F88BBRACKET, CONDENSER, NO.3
main88688-60C60iVJA300..5S..S;VJA300..S..GEN;FJA300..7S..Z..GEN;FJA300..Z..(ARL,EUR);VJA300..(A,V,Z)..(EUR,GEN);FJA300..(A,G,S,V)..(ARL,EUR,GEN)202104-202411
main88688-60C60iVJA300..5S..S;VJA300..S..GEN;FJA300..Z..EUR;FJA300..7S..(EUR,GEN);VJA300..(A,V,Z)..(EUR,GEN);FJA300..5S..(A,G,S,V)..(EUR,GEN)202411
INDIA SPEC
88F88CBRACKET, CONDENSER, NO.4
main88688-60C70iVJA300..5S..S;VJA300..S..GEN;FJA300..Z..EUR;FJA300..7S..(EUR,GEN);VJA300..(A,V,Z)..(EUR,GEN);FJA300..5S..(A,G,S,V)..(EUR,GEN)202411
INDIA SPEC
main88688-60C70iVJA300..5S..S;VJA300..S..GEN;FJA300..7S..Z..GEN;FJA300..Z..(ARL,EUR);VJA300..(A,V,Z)..(EUR,GEN);FJA300..(A,G,S,V)..(ARL,EUR,GEN)202104-202411
88F88DBRACKET, CONDENSER, NO.5
88F88EBRACKET, CONDENSER, NO.6
88H99ABUSH, CONDENSER BRACKET, NO.1
main88899-60530iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
88H99BBUSH, CONDENSER BRACKET, NO.2
main88899-60540iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
88H99CBUSH, CONDENSER BRACKET, NO.3
main88899-60550iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
8868860D70BRACKET, COOLER DIAPHRAGM
main88688-60D70
8868860J20BRACKET, COOLER DIAPHRAGM
main88688-60J20
9009904119
main90099-04119
9009905164
main90099-05164
9011906953
main90119-06953
9011906A17
main90119-06A17
9017906282
main90179-06282
27 parts on this diagram · 23 diagrams in section
