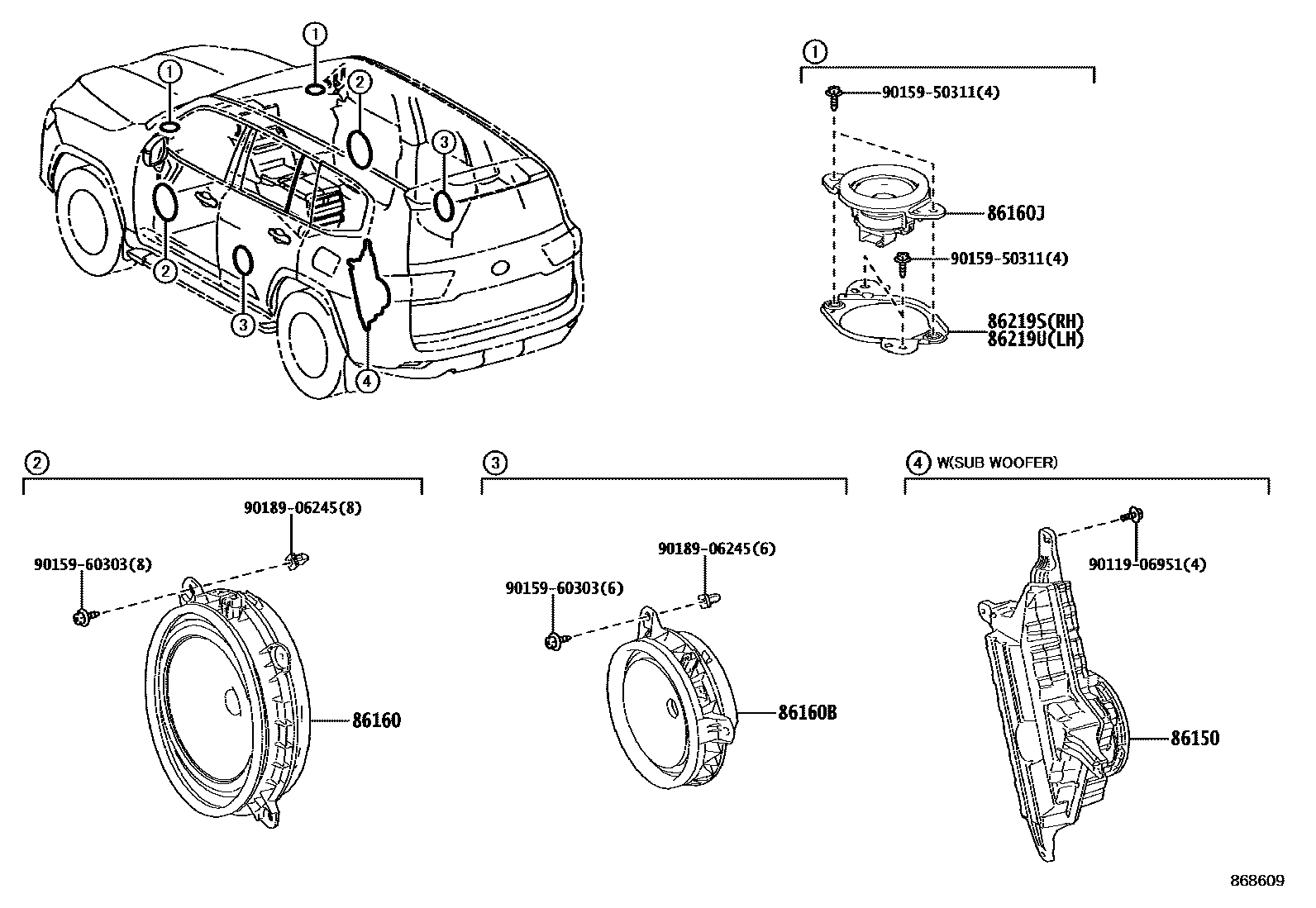

SPEAKER
86150SPEAKER ASSY, W/BOX, NO.1
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
INDIA SPEC,TYPE A:REFER ILLUST.
AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),TYPE B:REFER ILLUST.
86160SPEAKER ASSY, FRONT NO.1
AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER
AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
86160BSPEAKER ASSY, REAR
main86160-30E00×2iGRJ300..A,V;FJA300..(A,G)..ARL;FJA300,VJA300..A..GCC;FJA300,VJA300..(A,S,Z)..EUR;FJA300,VJA300..V..(EUR,GCC,GEN)202104
AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER
86160JSPEAKER ASSY, FRONT NO.3
AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 14SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
86219SBRACKET, STEREO SPEAKER, RH
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 14SPEAKER
86219UBRACKET, STEREO SPEAKER, LH
AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER
9011906951
main90119-06951
9015950311
main90159-50311
9015960303
main90159-60303
9018906245
main90189-06245
10 parts on this diagram · 5 diagrams in section
