WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-60480supersedes 85110-60470iVJA300..RHD..(S,Z);FJA300..RHD..(A,S,Z)..GEN202411

LESO,BOTS,NAMI,SWAZI SPEC

main85110-60490iFJA300..5S..Z..GEN202104

main85110-60500iGRJ300202411

UZBEKISTAN SPEC&COLD AREA SPEC

85160LINK ASSY, WINDSHIELD WIPER

main85150-60420iFJA300,VJA300..RHD202411

main85150-60440iFJA300..G..GEN202411

COLOMBIA SPEC

main85150-60450iGRJ300202411

UZBEKISTAN SPEC&COLD AREA SPEC

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

85211BARM, FRONT WIPER, RH

main85211-60330iVJA300..5S..S;FJA300..Z..EUR;VJA300..LHD..(A,G,V,Z);FJA300,GRJ300..LHD..7S;VJA300..LHD..S..(GCC,GEN);FJA300..LHD..5S..(A,G,S,V)202411

main85211-60350supersedes 85211-60320iVJA300..RHD..(S,Z);FJA300..RHD..(A,S,Z)..GEN202411

LESO,BOTS,NAMI,SWAZI SPEC

85212ABLADE, FR WIPER, RH

main85212-60230iFJA300,VJA300..RHD202411

main85212-60250iVJA300..5S..S;FJA300..Z..EUR;VJA300..LHD..(A,G,V,Z);FJA300,GRJ300..LHD..7S;VJA300..LHD..S..(GCC,GEN);FJA300..LHD..5S..(A,G,S,V)202104-202411

85214ARUBBER, WIPER, RH

main85214-30380iFJA300,VJA300..RHD202104-202411

main85214-53080iVJA300..5S..S;FJA300..Z..EUR;VJA300..LHD..(A,G,V,Z);FJA300,GRJ300..LHD..7S;VJA300..LHD..S..(GCC,GEN);FJA300..LHD..5S..(A,G,S,V)202411

85214BRUBBER, WIPER, LH

main85214-30380iVJA300..5S..S;FJA300..Z..EUR;VJA300..LHD..(A,G,V,Z);FJA300,GRJ300..LHD..7S;VJA300..LHD..S..(GCC,GEN);FJA300..LHD..5S..(A,G,S,V)202104-202411

main85214-53080iFJA300,VJA300..RHD202104-202411

85221BARM, FRONT WIPER, LH

main85221-60350iFJA300,VJA300..RHD202104-202411

main85221-60360iFJA300..G..GEN202411

COLOMBIA SPEC

main85221-60370iGRJ300202411

KAZAKHSTAN SPEC

85222ABLADE, FR WIPER, LH

main85222-35150iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

main85222-60290iFJA300,VJA300..RHD202411

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

89941SENSOR, RAIN

main89941-30040iFJA300,VJA300..S,V,Z;FJA300,VJA300..A..EUR202104

main89941-78020iFJA300..G..ARL202411

WINDSHIELD WIPER CONTROL-INTERMITTENT WIPER & TIME ADJUSTMENT

89943COVER, RAIN SENSOR

main89943-60040iFJA300,VJA300..S,V,Z;FJA300,VJA300..A..EUR202104

main89943-60050iFJA300..G..ARL202411

WINDSHIELD WIPER CONTROL-INTERMITTENT WIPER & TIME ADJUSTMENT

89944TAPE, RAIN SENSOR

main89944-42020iFJA300..G..ARL202411

WINDSHIELD WIPER CONTROL-INTERMITTENT WIPER & TIME ADJUSTMENT

9011906864

main90119-06864

9014860091

main90148-60091

9413060600

main94130-60600

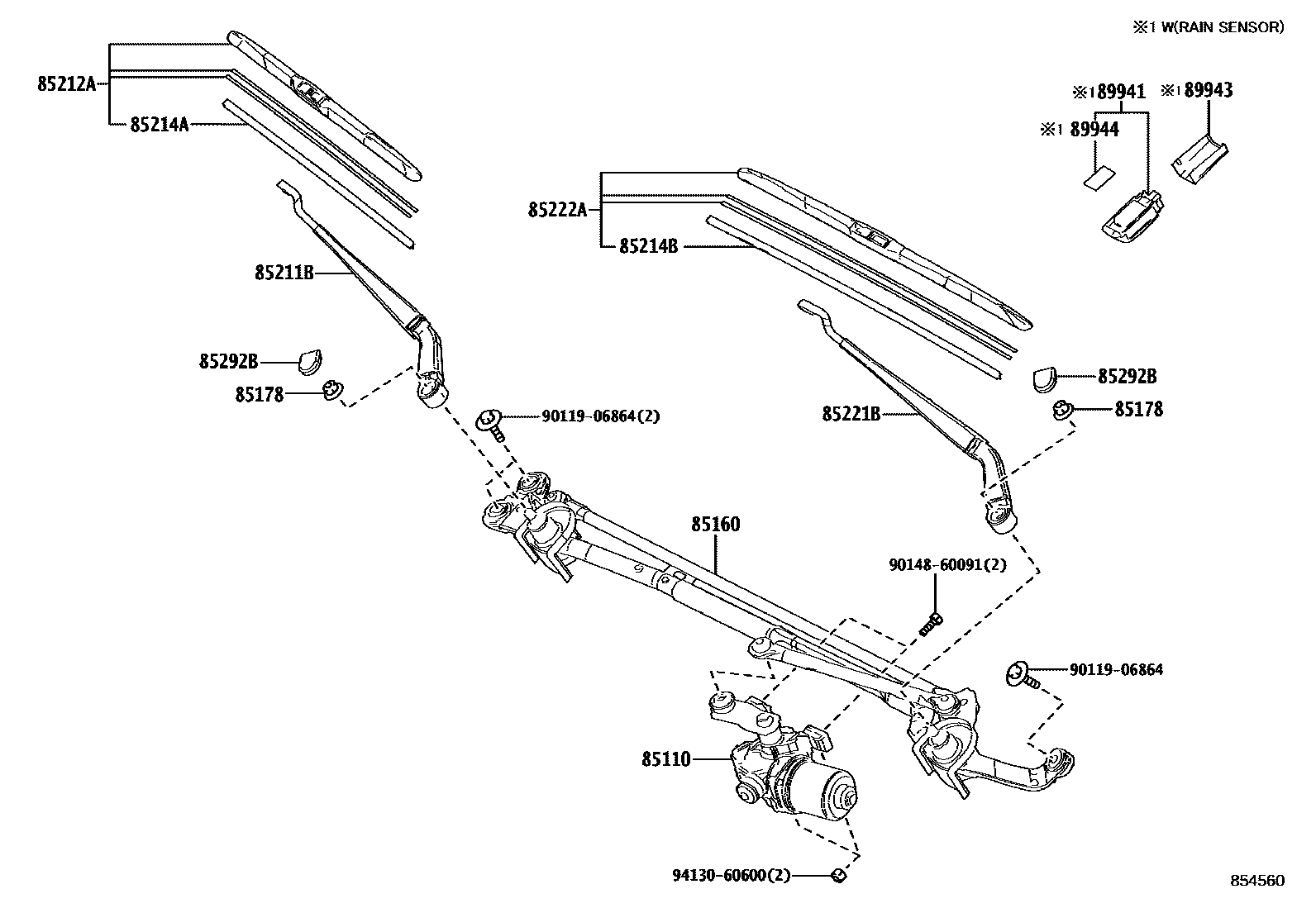

16 parts on this diagram · 2 diagrams in section
