AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-60D70iVJA300..7S..V..EUR202104-202411

*614

main89170-60D70iVJA300..7S..V..EUR202104-202411

TAJIKISTAN, TURKMENISTAN SPEC,*614

main89170-60D70iFJA300,VJA300..7S..(S,V,Z)..(ARL,GCC,GEN)202104-202411

UKRAINE SPEC,*614

main89170-60D70iFJA300,VJA300..7S..(S,V,Z)..(ARL,GCC,GEN)202104-202411

ECUADOR SPEC,*614

main89170-60D70iFJA300,VJA300..7S..(S,V,Z)..(ARL,GCC,GEN)202104-202411

VIETNAM SPEC,*614

main89170-60D70iFJA300,VJA300..7S..(S,V,Z)..(ARL,GCC,GEN)202104-202411

AZER, GEORGIA SPEC,*614

main89170-60D70iFJA300,VJA300..7S..(S,V,Z)..(ARL,GCC,GEN)202104-202411

UZBEKISTAN SPEC,*614

main89170-60D80iGRJ300..V;FJA300..A..ARL202104-202310

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),*614

main89170-60D80iGRJ300..V;FJA300..A..ARL202104-202310

*614

main89170-60F80iFJA300,VJA300..5S..(S,V,Z)..EUR202104-202411

*614

main89170-60F90iFJA300..(S,Z)..ARL;FJA300..5S..S..GEN202107-202411

*614

main89170-60G00iFJA300..G;FJA300..A..(GCC,GEN);GRJ300,VJA300..7S..(A,G)202104-202310

VIETNAM SPEC,*614

main89170-60G00iFJA300..G;FJA300..A..(GCC,GEN);GRJ300,VJA300..7S..(A,G)202104-202310

AZER, GEORGIA SPEC,*614

main89170-60G00iFJA300,VJA300..A..EUR202104-202310

*614

main89170-60G00iFJA300,VJA300..A..EUR202104-202310

UKRAINE SPEC,*614

main89170-60G20iFJA300,VJA300..A..EUR202104-202411

*614

main89170-60G60iFJA300,VJA300..7S..V..EUR202104-202411

*614

main89170-60N60iFJA300,VJA300..A..EUR202310-202411

AZER, GEORGIA SPEC,*614

main89170-60N60iFJA300,VJA300..A..EUR202310-202411

VIETNAM SPEC,*614

main89170-60N60iFJA300,VJA300..A..EUR202310-202411

UKRAINE SPEC,*614

main89170-60N60iFJA300,VJA300..A..EUR202310-202411

*614

main89170-60N60iVJA300..A..EUR202310-202411

MOLDOVA SPEC,*614

main89170-60N60iVJA300..A..EUR202310-202411

TAJIKISTAN, TURKMENISTAN SPEC,*614

main89170-60N60iVJA300..A..EUR202310-202411

UZBEKISTAN SPEC,*614

main89170-60N90iFJA300,GRJ300,VJA300..A..(GCC,GEN)202310-202411

*614

main89170-60N90iGRJ300..V;FJA300..A..ARL202310-202411

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),*614

main89170-60P00iFJA300,VJA300..A..EUR202411

DATA COMMUNICATION MODULE-WITH(ERA-GLONASS)

main89170-60P20iFJA300,VJA300..5S..(S,V,Z)..EUR202411

main89170-60P30iFJA300,VJA300..7S..V..EUR202411

main89170-60P40iFJA300,VJA300..A..EUR202411

UKRAINE SPEC

main89170-60P40iFJA300..G;FJA300..A..(GCC,GEN);GRJ300,VJA300..7S..(A,G)202411

VIETNAM SPEC

main89170-60P40iFJA300..G;FJA300..A..(GCC,GEN);GRJ300,VJA300..7S..(A,G)202411

AZERBAIJAN, GEORGEA SPEC

main89170-60P40iFJA300..G;FJA300..A..(GCC,GEN);GRJ300,VJA300..7S..(A,G)202411

UZBEKISTAN SPEC

main89170-60P40iFJA300..G;FJA300..A..(GCC,GEN);GRJ300,VJA300..7S..(A,G)202411

TAJIKISTAN, TURKMENISTAN SPEC

main89170-60P40iFJA300..G;FJA300..A..(GCC,GEN);GRJ300,VJA300..7S..(A,G)202411

MOLDOVA SPEC

main89170-60P50iFJA300..RHD..A..GEN;FJA300,GRJ300,VJA300..A..GCC202411

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)

main89170-60P60iFJA300,VJA300..5S..(S,V,Z)..EUR202411

UZBEKISTAN SPEC

main89170-60P60iFJA300,VJA300..5S..(S,V,Z)..EUR202411

AZERBAIJAN, GEORGEA SPEC

main89170-60P60iFJA300,VJA300..5S..(S,V,Z)..EUR202411

UKRAINE SPEC

main89170-60P60iFJA300,VJA300..5S..(S,V,Z)..EUR202411

MOLDOVA SPEC

main89170-60P60iFJA300,VJA300..5S..(S,V,Z)..EUR202411

TAJIKISTAN, TURKMENISTAN SPEC

main89170-60P70iVJA300..7S..V..EUR202411

VIETNAM SPEC

main89170-60P70iVJA300..7S..V..EUR202411

ECUADOR SPEC

main89170-60P70iVJA300..7S..V..EUR202411

UKRAINE SPEC

main89170-60P70iVJA300..7S..V..EUR202411

MOLDOVA SPEC

main89170-60P70iVJA300..7S..V..EUR202411

UZBEKISTAN SPEC

main89170-60P70iVJA300..7S..V..EUR202411

AZERBAIJAN, GEORGEA SPEC

main89170-60P70iFJA300,VJA300..7S..V..EUR202411

TAJIKISTAN, TURKMENISTAN SPEC

89173ASENSOR, AIRBAG, FRONT RH

main89173-59335iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

89174ASENSOR, AIRBAG, FRONT LH

main89173-59335iGRJ300;FJA300,VJA300..(A,G)..(ARL,GCC,GEN)202104-202411

89831DSENSOR, FLOOR SIDE AIRBAG, RH

main89831-28030iFJA300,GRJ300,VJA300..A..(GCC,GEN)202310-202411

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)

main89831-52130iVJA300..V,Z;VJA300..5S..S;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300..(S,V,Z)..(ARL,EUR,GCC)202104-202411

main89831-52130iVJA300..V,Z;VJA300..5S..S;FJA300..(A,G)..ARL;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300,GRJ300..(S,V,Z)..(ARL,EUR,GCC)202104-202310

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)

89831ESENSOR, FLOOR SIDE AIRBAG, LH

main89831-28030iFJA300,GRJ300,VJA300..A..(GCC,GEN)202310-202411

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)

main89831-52130iGRJ300..V;FJA300..(A,G)..ARL202104-202310

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)

main89831-52130iVJA300..V,Z;VJA300..5S..S;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300..(S,V,Z)..(ARL,EUR,GCC)202104-202411

89837ASENSOR, REAR FLOOR SIDE AIRBAG

main89831-62010iVJA300..V,Z;VJA300..5S..S;FJA300..(A,G)..ARL;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300,GRJ300..(S,V,Z)..(ARL,EUR,GCC)202104-202310

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)

main89831-62010iVJA300..V,Z;VJA300..5S..S;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300..(S,V,Z)..(ARL,EUR,GCC)202104-202411

main89837-28040iFJA300,GRJ300,VJA300..A..(GCC,GEN)202310-202411

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)

89839ACOVER, REAR FLOOR SIDE AIRBAG SENSOR

main89839-28020iVJA300..V,Z;VJA300..5S..S;FJA300..(A,G)..ARL;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300,GRJ300..(S,V,Z)..(ARL,EUR,GCC)202104-202411

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)

main89839-28020iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-12030iVJA300..V,Z;VJA300..5S..S;FJA300..(A,G)..ARL;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300,GRJ300..(S,V,Z)..(ARL,EUR,GCC)202411

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)

main8983A-52011iVJA300..V,Z;VJA300..5S..S;FJA300..(A,G)..ARL;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300,GRJ300..(S,V,Z)..(ARL,EUR,GCC)202104-202411

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)

main8983A-52011iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-12030iVJA300..V,Z;VJA300..5S..S;FJA300..(A,G)..ARL;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300,GRJ300..(S,V,Z)..(ARL,EUR,GCC)202411

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)

main8983A-52011iVJA300..V,Z;VJA300..5S..S;FJA300..(A,G)..ARL;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300,GRJ300..(S,V,Z)..(ARL,EUR,GCC)202104-202411

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)

main8983A-52011iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-28060iGRJ300..V;FJA300..(A,G)..ARL202310-202411

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)

main89831-60080iVJA300..V,Z;VJA300..5S..S;FJA300..(A,G)..ARL;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300,GRJ300..(S,V,Z)..(ARL,EUR,GCC)202104-202310

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)

main89831-60080iVJA300..V,Z;VJA300..5S..S;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300..(S,V,Z)..(ARL,EUR,GCC)202104-202411

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-28060iFJA300,GRJ300,VJA300..A..(GCC,GEN)202310-202411

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)

main89831-60080iGRJ300..V;FJA300..(A,G)..ARL202104-202310

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)

main89831-60080iVJA300..V,Z;VJA300..5S..S;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300..(S,V,Z)..(ARL,EUR,GCC)202104-202411

9011908C89

main90119-08C89

9046709077

main90467-09077

91553A0620

main91553-A0620

9415180640

main94151-80640

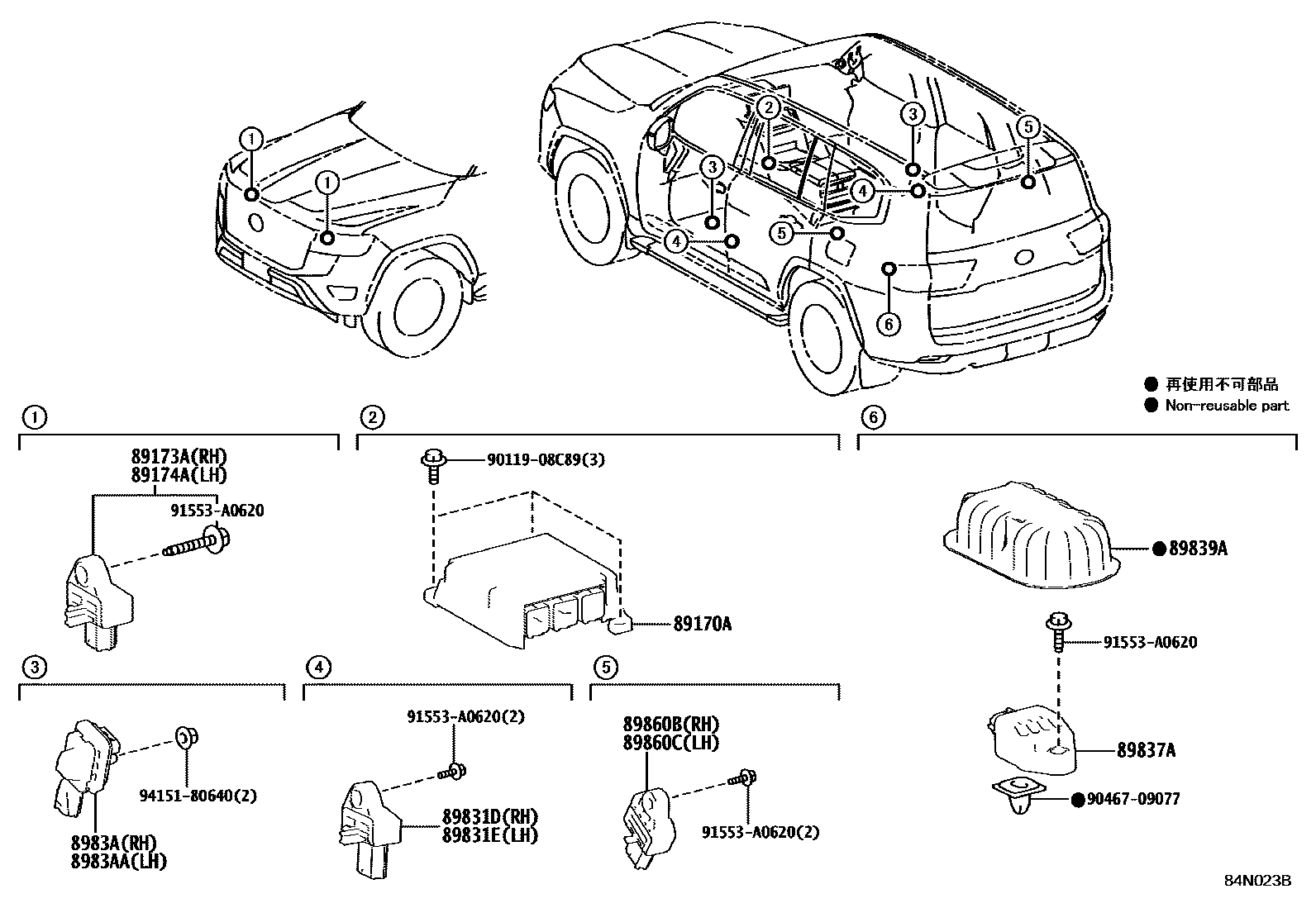

15 parts on this diagram · 1 diagram in section
