ABS & VSC

8401

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-42020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

main89510-47030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

89542SENSOR, SPEED, FRONT RH

main89542-60070iFJA300,GRJ300,VJA300..A,G,V202104-202411

main89542-60080iVJA300..Z;FJA300..7S..Z;FJA300..Z..(ARL,EUR)202104-202411

main89542-60090iVJA300..7S..S..EUR202107-202411

main89542-60090iFJA300..S;VJA300..5S..S;VJA300..S..(GCC,GEN)202411

SUSPENSION-E-KDSS

89543SENSOR, SPEED, FRONT LH

main89543-60040iFJA300,GRJ300,VJA300..A,G,V202104-202411

main89543-60060iFJA300,VJA300..5S..V202104-202411

SUSPENSION-E-KDSS

main89543-60060iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

89545SENSOR, SPEED, REAR RH

main89542-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

main89545-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

89546SENSOR, SPEED, REAR LH

main89543-60050iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

main89546-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

9011906A60

main90119-06A60

9011908D62

main90119-08D62

92112C0616

main92112-C0616

9415010641

main94150-10641

9415180600

main94151-80600

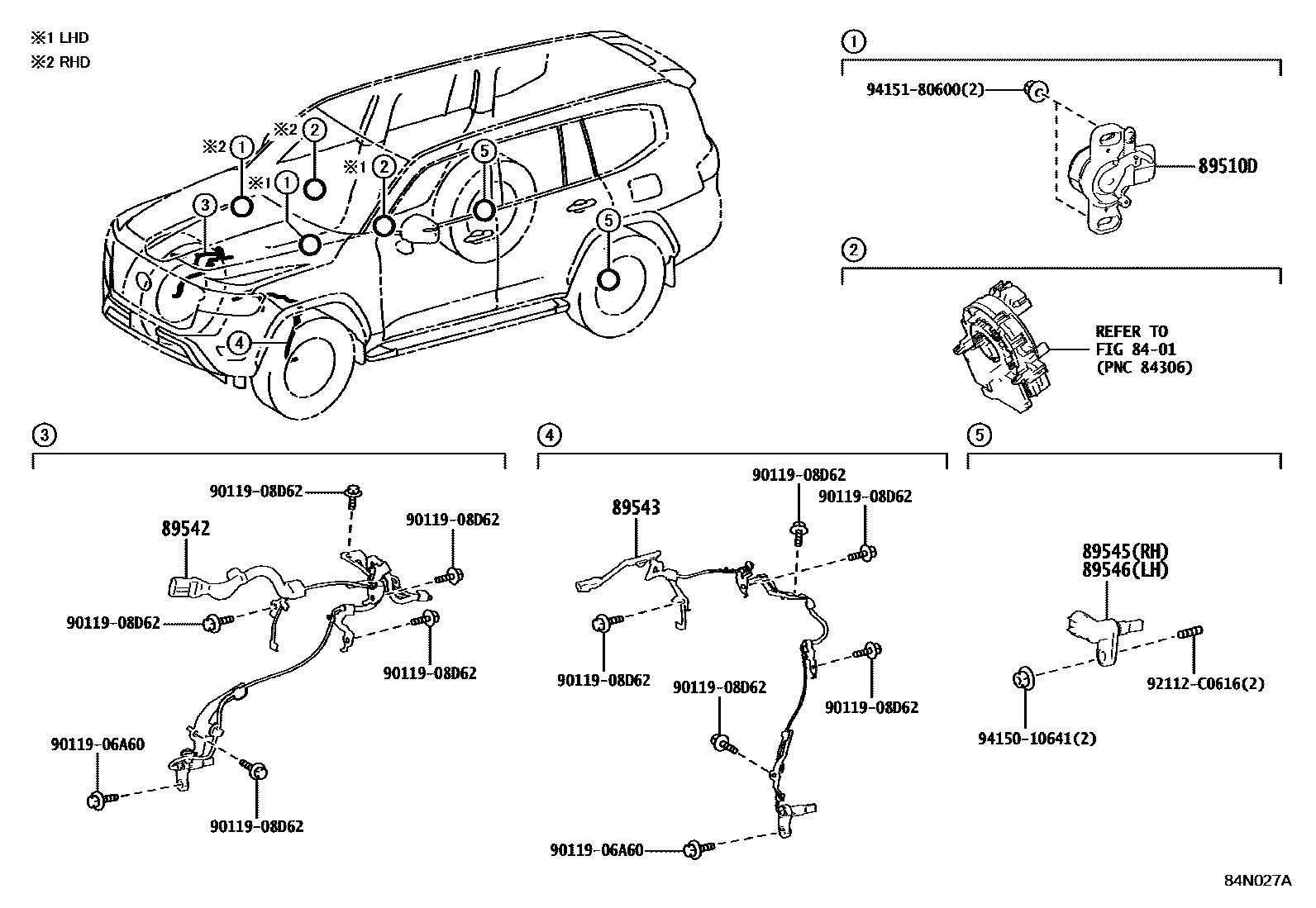

11 parts on this diagram · 1 diagram in section
