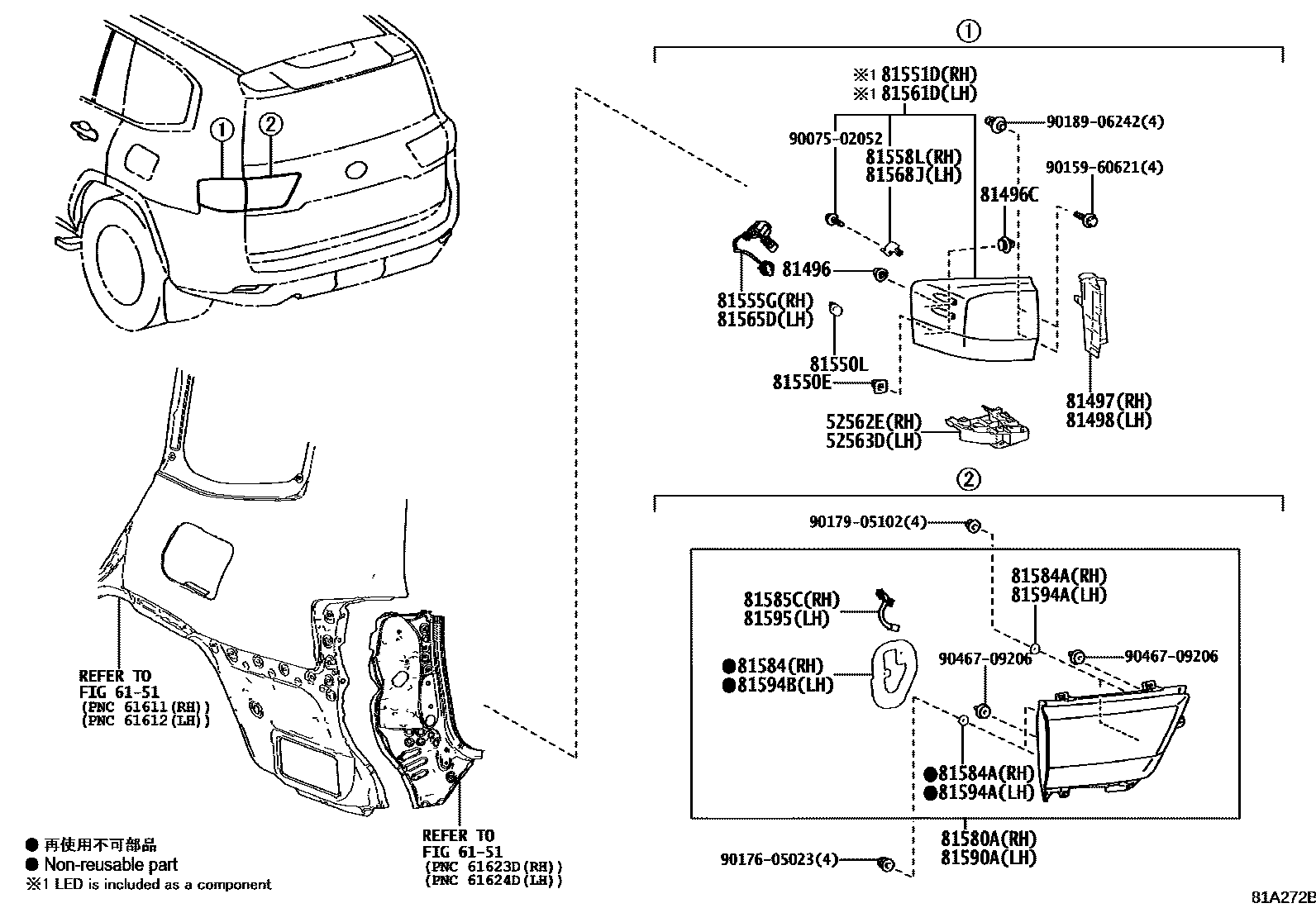

REAR COMBINATION LAMP

0001 1 0002 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-60120iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-60120iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010×4iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

81497COVER, REAR COMBINATION LAMP, RH

main81497-60030iFJA300,VJA300..A..EUR;FJA300,GRJ300,VJA300..(A,G,V)..(ARL,GCC,GEN)202104-202411

main81497-60040iVJA300..5S..S;VJA300..(V,Z)..EUR;FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,V,Z)..(ARL,EUR,GCC)202411

BACK DOOR-WITH(POWER BACK DOOR)

81498COVER, REAR COMBINATION LAMP, LH

main81498-60030iFJA300..A,G;FJA300..V..GEN;VJA300..A..EUR;GRJ300,VJA300..(A,G,V)..(GCC,GEN)202411

BACK DOOR-HATCH DOOR TYPE

main81498-60040iVJA300..5S..S;FJA300..V..EUR;VJA300..(V,Z)..EUR;FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202104-202411

BACK DOOR-WITH(POWER BACK DOOR)

81550ECLIP(FOR REAR COMBINATION LAMP)

main76817-26040×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2iFJA300,GRJ300,VJA300..A,G202411

12V 21W,AMBER

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-60D30iFJA300,GRJ300,VJA300..V202104-202411

main81551-60D40iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

main81551-60D50iFJA300,GRJ300,VJA300..A,G202104-202411

81555GCORD, REAR COMBINATION LAMP, RH

main81555-60D30iFJA300,GRJ300,VJA300..V202411

main81555-60D40iFJA300..V..ARL202411

AUSTRALIA SAHARA PACKAGE

main81555-60D50iFJA300,GRJ300,VJA300..A,G202411

81558LPROTECTOR, REAR COMBINATION LAMP, RH

main81558-60D40iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-60D30iFJA300,GRJ300,VJA300..V202411

main81561-60D40iFJA300..V..ARL202411

AUSTRALIA SAHARA PACKAGE

main81561-60D50iFJA300,GRJ300,VJA300..A,G202411

81565DCORD, REAR COMBINATION LAMP, LH

main81565-60D30iFJA300,GRJ300,VJA300..V202411

main81565-60D40iVJA300..5S..(S,Z);FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202104-202411

main81565-60D50iFJA300,GRJ300,VJA300..A,G202104-202411

81568JPROTECTOR, REAR COMBINATION LAMP, LH

main81568-60D40iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

81580ALAMP ASSY, REAR

main81580-60510supersedes 81580-60520iFJA300,VJA300..(A,G,V)..EUR;FJA300,GRJ300,VJA300..G..(GCC,GEN)202411

REAR FOG LAMP-WITH

main81580-60520iFJA300..RHD..(A,G,V);VJA300..(A,V)..(GCC,GEN);FJA300,GRJ300..LHD..(A,V)..(GCC,GEN)202411

main81580-60530supersedes 81580-60540iFJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;FJA300..(S,Z)..(ARL,GCC);VJA300..(S,Z)..(GCC,GEN)202104-202411

REAR FOG LAMP-WITH

81584PACKING, REAR LAMP RH

main81582-60530iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

81584AGASKET, REAR LAMP RH

main81584-24050×4iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-60510iFJA300,GRJ300,VJA300..A,G,V202411

main81585-60530iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

81590ALAMP ASSY, REAR, LH

main81590-60510supersedes 81590-60520iFJA300,VJA300..(A,G,V)..EUR;FJA300,GRJ300,VJA300..G..(GCC,GEN)202411

REAR FOG LAMP-WITH

main81590-60520iFJA300..RHD..(A,G,V);VJA300..(A,V)..(GCC,GEN);FJA300,GRJ300..LHD..(A,V)..(GCC,GEN)202411

main81590-60530supersedes 81590-60540iFJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;FJA300..(S,Z)..(ARL,GCC);VJA300..(S,Z)..(GCC,GEN)202104-202411

REAR FOG LAMP-WITH

81594AGASKET, REAR LAMP LH

main81584-24050×4iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

81594BPACKING, REAR LAMP LH

main81592-60530iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

81595SOCKET & WIRE, REAR LAMP, LH

main81595-60510iFJA300,GRJ300,VJA300..A,G,V202411

main81595-60530iVJA300..5S..(S,Z);FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202104-202411

9007502052

main90075-02052

9015960621

main90159-60621

9017605023

main90176-05023

9017905102

main90179-05102

9018906242

main90189-06242

9046709206

main90467-09206

29 parts on this diagram · 2 diagrams in section
