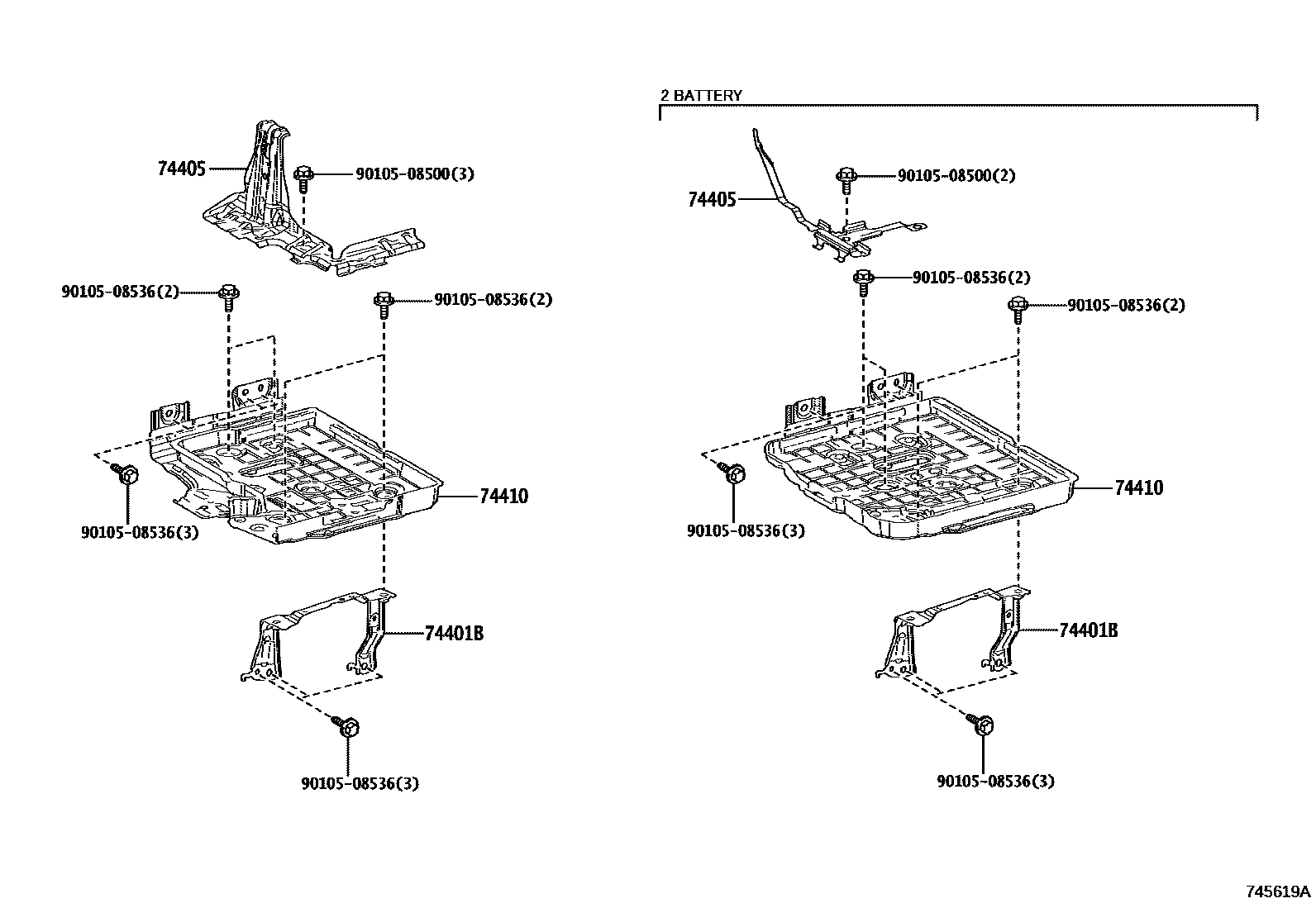

BATTERY CARRIER

0001 1 0002 1

74401BBRACKET SUB-ASSY, BATTERY CARRIER

main74401-60080iVJA300..5S..S;FJA300..Z..EUR;VJA300..LHD..(A,G,V,Z);FJA300,GRJ300..LHD..7S;VJA300..LHD..S..(GCC,GEN);FJA300..LHD..5S..(A,G,S,V)202104-202411

main74401-60090iFJA300,VJA300..RHD202104-202411

74405CLAMP SUB-ASSY, BATTERY, NO.2

main74405-60080iFJA300..EUR;FJA300..5S..S..GEN202411

AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC

main74405-60080iFJA300..EUR;FJA300..5S..S..GEN202107-202411

COLD AREA SPEC

main74405-60100iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

main74405-60100iVJA300..5S..S;FJA300..5S..GCC;VJA300..LHD..(A,G,V,Z);VJA300..LHD..S..(GCC,GEN);FJA300,GRJ300..LHD..7S..(GCC,GEN)202411

WITHOUT(COLD AREA SPEC)

74410CARRIER ASSY, BATTERY

main74410-60010iFJA300..5S..S..GEN;FJA300..LHD..(A,V)..GEN202107-202411

COLD AREA SPEC

main74410-60010iFJA300..EUR;FJA300..5S..S..GEN202411

AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC

main74410-60020iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

main74410-60020iVJA300..5S..S;FJA300..5S..GCC;VJA300..LHD..(A,G,V,Z);VJA300..LHD..S..(GCC,GEN);FJA300,GRJ300..LHD..7S..(GCC,GEN)202411

WITHOUT(COLD AREA SPEC)

main74410-60040iFJA300,VJA300..RHD202104-202411

9010508500

main90105-08500

9010508536

main90105-08536

5 parts on this diagram · 2 diagrams in section
