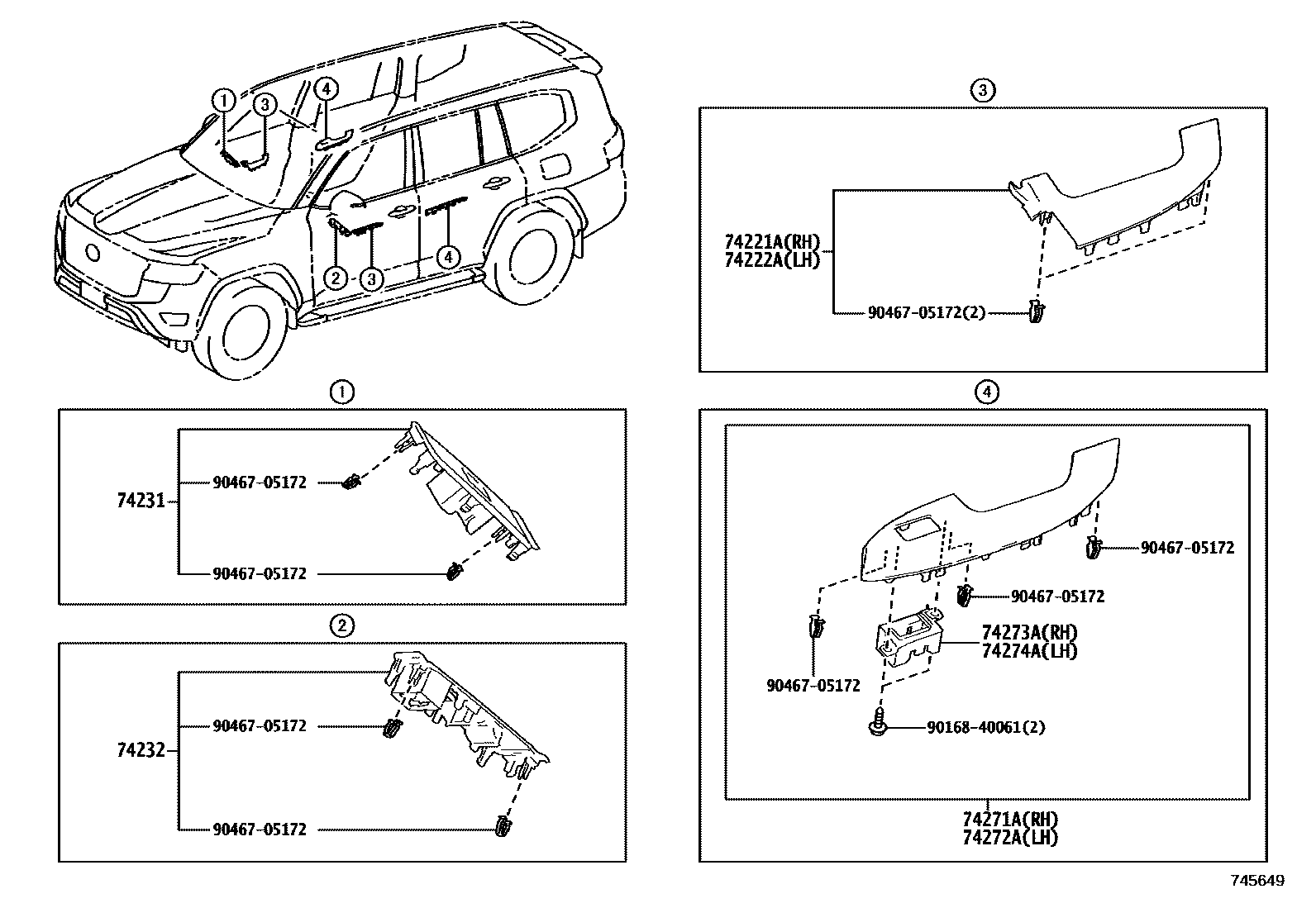

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74221ACOVER, FRONT DOOR ARMREST, RH

main67711-60440iFJA300,GRJ300,VJA300..A,G202104-202411

main67711-60450iFJA300,GRJ300,VJA300..V202411

UPGRADE PACKAGE(AERO)

main67711-60470iVJA300..5S..(S,Z);FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202411

main67711-60460iFJA300,VJA300..Z..GCC202411

AZERBAIJAN, GEORGEA SPEC&FRONT CONSOLE BOX-WOOD

74222ACOVER, FRONT DOOR ARMREST, LH

main67712-60480iFJA300,GRJ300,VJA300..A,G202411

main67712-60490iFJA300,GRJ300,VJA300..V202104-202411

UPGRADE PACKAGE(AERO)

main67712-60510iVJA300..5S..(S,Z);FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202411

main67712-60500iFJA300,VJA300..Z..GCC202411

AZERBAIJAN, GEORGEA SPEC&FRONT CONSOLE BOX-WOOD

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-60880iFJA300,GRJ300,VJA300..LHD..(A,G)202104-202411

main74231-60A60iVJA300..5S..S;FJA300..Z..EUR;VJA300..LHD..S..GEN;FJA300..LHD..5S..(S,V);VJA300..LHD..(V,Z)..(EUR,GEN);FJA300..LHD..7S..(S,V,Z)..(EUR,GEN)202104-202411

UPGRADE PACKAGE(AERO)

main74231-60A70iFJA300,GRJ300,VJA300..(S,V,Z)..GCC202104-202411

SAUDI ARABIA SPEC&UPGRADE PACKAGE

main74231-60A80iFJA300,VJA300..RHD..(A,G)202104-202411

main74231-60A90iFJA300,VJA300..RHD..(S,V,Z)202411

main74231-60A50iGRJ300..G;FJA300,VJA300..(A,G)..GCC202411

SAUDI ARABIA SPEC

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-60840iFJA300,GRJ300,VJA300..LHD..(A,G)202104-202411

main74232-60880iVJA300..5S..S;FJA300..Z..EUR;VJA300..LHD..(V,Z);FJA300..LHD..5S..(S,V);VJA300..LHD..S..(GCC,GEN);FJA300,GRJ300..LHD..7S..(S,V,Z)202411

UPGRADE PACKAGE(AERO)

main74232-60890iFJA300,VJA300..RHD..(A,G)202104-202411

main74232-60A20iFJA300,VJA300..RHD..(S,V,Z)202411

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-60410iFJA300,GRJ300,VJA300..A,G202104-202411

main74271-60440iFJA300,GRJ300,VJA300..V202411

UPGRADE PACKAGE(AERO)

main74271-60460iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

main74271-60450iFJA300..5S..Z..GEN202104

FRONT CONSOLE BOX-WOOD

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-60410iFJA300,GRJ300,VJA300..A,G202411

main74272-60440iFJA300,GRJ300,VJA300..V202411

UPGRADE PACKAGE(AERO)

main74272-60460iVJA300..5S..(S,Z);FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202411

main74272-60450iGRJ300..V202104-202411

TAJIKISTAN, TURKMENISTAN SPEC&FRONT CONSOLE BOX-WOOD

74273APANEL, REAR DOOR ARMREST BASE, LOWER RH

main74273-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

74274APANEL, REAR DOOR ARMREST BASE, LOWER LH

main74274-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

9016840061

main90168-40061

9046705172

main90467-05172

10 parts on this diagram · 2 diagrams in section
