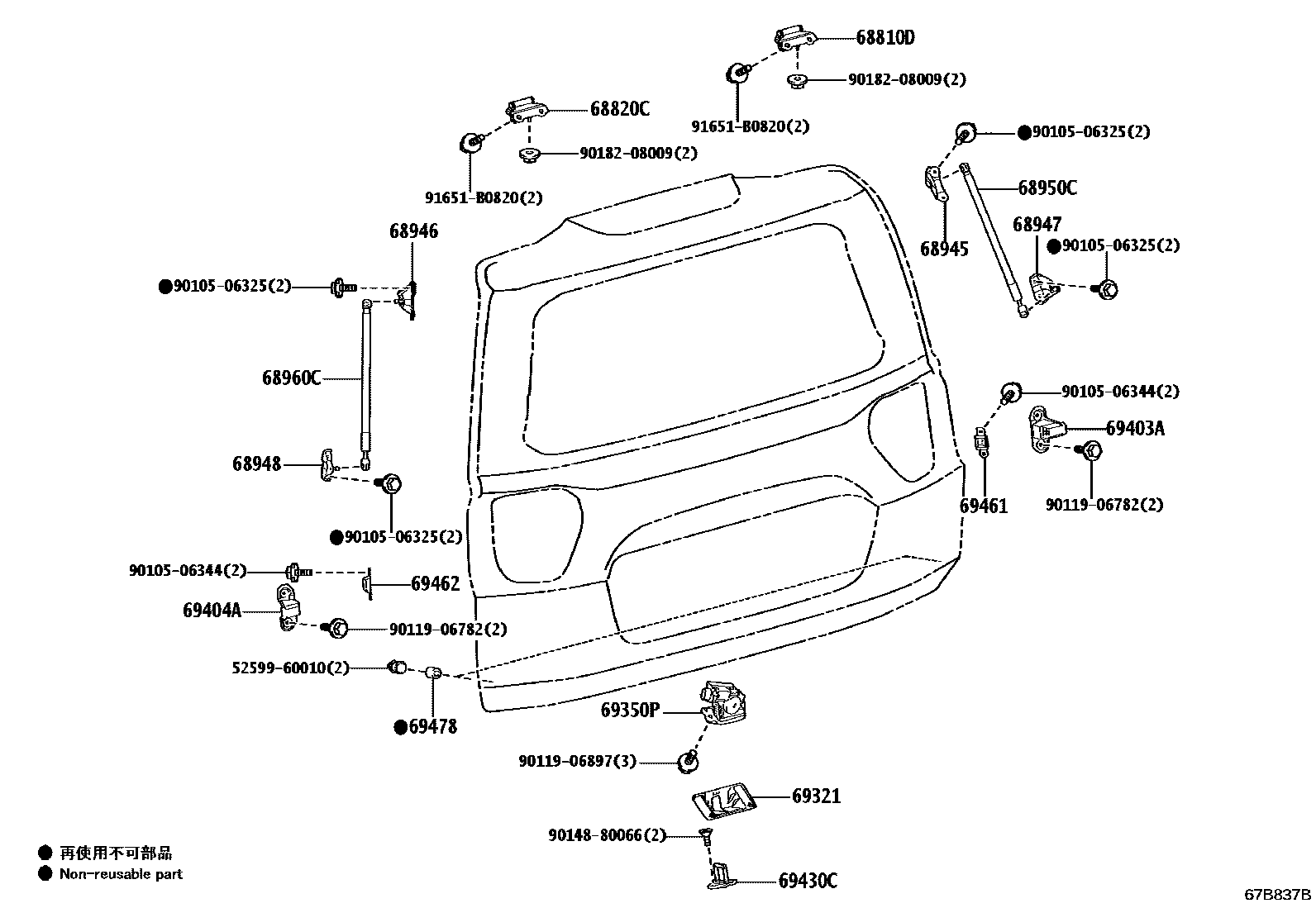

BACK DOOR LOCK & HINGE

0001 1W/O(POWER BACK DOOR) 0002 1W(POWER BACK DOOR)

68810DHINGE ASSY, BACK DOOR, RH

main68810-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

PAD T=1.5

main68810-60070iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

PAD T=1.0

main68810-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

PAD T=2.0

68820CHINGE ASSY, BACK DOOR, LH

main68810-60060iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

PAD T=1.5

main68810-60070iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

PAD T=1.0

main68810-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

PAD T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-60040iFJA300..V..GCC202411

BACK DOOR-HATCH DOOR TYPE

main68945-60040iFJA300,VJA300..A..EUR;FJA300,GRJ300,VJA300..(A,G,V)..(ARL,GCC,GEN)202104-202411

main68945-60050iFJA300..V..GEN;FJA300..LHD..7S..A;GRJ300,VJA300..LHD..(A,V)..(GCC,GEN)202104-202411

BACK DOOR-WITH(POWER BACK DOOR)

main68945-60050iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-60030iFJA300..A,G;FJA300..V..GEN;VJA300..A..EUR;GRJ300,VJA300..(A,G,V)..(GCC,GEN)202411

BACK DOOR-HATCH DOOR TYPE

main68946-60030iFJA300,VJA300..A..EUR;FJA300,GRJ300,VJA300..(A,G,V)..(ARL,GCC,GEN)202104-202411

main68946-60040iFJA300..V..GEN;FJA300..LHD..7S..A;GRJ300,VJA300..LHD..(A,V)..(GCC,GEN)202104-202411

BACK DOOR-WITH(POWER BACK DOOR)

main68946-60040iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-60010iFJA300,VJA300..A..EUR;FJA300,GRJ300,VJA300..(A,G,V)..(ARL,GCC,GEN)202104-202411

main68947-60010iFJA300..A,G;FJA300..V..GEN;VJA300..A..EUR;GRJ300,VJA300..(A,G,V)..(GCC,GEN)202411

BACK DOOR-HATCH DOOR TYPE

main68947-60020iVJA300..5S..S;FJA300..V..EUR;VJA300..(V,Z)..EUR;FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202104-202411

BACK DOOR-WITH(POWER BACK DOOR)

main68947-60020iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-60030iFJA300,VJA300..A..EUR;FJA300,GRJ300,VJA300..(A,G,V)..(ARL,GCC,GEN)202104-202411

main68948-60030iFJA300..V..GCC202411

BACK DOOR-HATCH DOOR TYPE

main68948-60040iFJA300..V..GEN;FJA300..LHD..7S..A;GRJ300,VJA300..LHD..(A,V)..(GCC,GEN)202104-202411

BACK DOOR-WITH(POWER BACK DOOR)

main68948-60040iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W730iFJA300..A,G;FJA300..V..GEN;VJA300..A..EUR;GRJ300,VJA300..(A,G,V)..(GCC,GEN)202411

BACK DOOR-HATCH DOOR TYPE

main68950-0W730iFJA300,VJA300..A..EUR;FJA300,GRJ300,VJA300..(A,G,V)..(ARL,GCC,GEN)202104-202411

68960CSTAY SET, BACK DOOR, LH

main68960-0W730iFJA300..A,G;FJA300..V..GEN;VJA300..A..EUR;GRJ300,VJA300..(A,G,V)..(GCC,GEN)202411

BACK DOOR-HATCH DOOR TYPE

main68960-0W730iFJA300,VJA300..A..EUR;FJA300,GRJ300,VJA300..(A,G,V)..(ARL,GCC,GEN)202104-202411

69321COVER, BACK DOOR LOCK

main69321-60040iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-42080iVJA300..7S..Z;VJA300..(V,Z)..EUR202104-202105

BACK DOOR-WITH(POWER BACK DOOR)

main69350-42090iFJA300..A,G;FJA300..V..GEN;VJA300..A..EUR;GRJ300,VJA300..(A,G,V)..(GCC,GEN)202411

BACK DOOR-HATCH DOOR TYPE

main69350-42090iFJA300,VJA300..A..EUR;FJA300,GRJ300,VJA300..(A,G,V)..(ARL,GCC,GEN)202104-202411

main69350-42101iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202105

main69350-42101iVJA300..5S..S;VJA300..(V,Z)..EUR;FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,V,Z)..(ARL,EUR,GCC)202105-202411

BACK DOOR-WITH(POWER BACK DOOR)

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main67293-60080iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main67294-60020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69461STOPPER, BACK DOOR SIDE MALE, RH

main67281-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69462STOPPER, BACK DOOR SIDE MALE, LH

main67282-60020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69478CUSHION, BACK DOOR LOWER STOPPER

main69478-60040iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

5259960010STOPPER, REAR BUMPER, UPPER

main52599-60010

9010506325

main90105-06325

9010506344

main90105-06344

9011906782

main90119-06782

9011906897

main90119-06897

9014880066

main90148-80066

9018208009

main90182-08009

91651B0820

main91651-B0820

24 parts on this diagram · 2 diagrams in section
