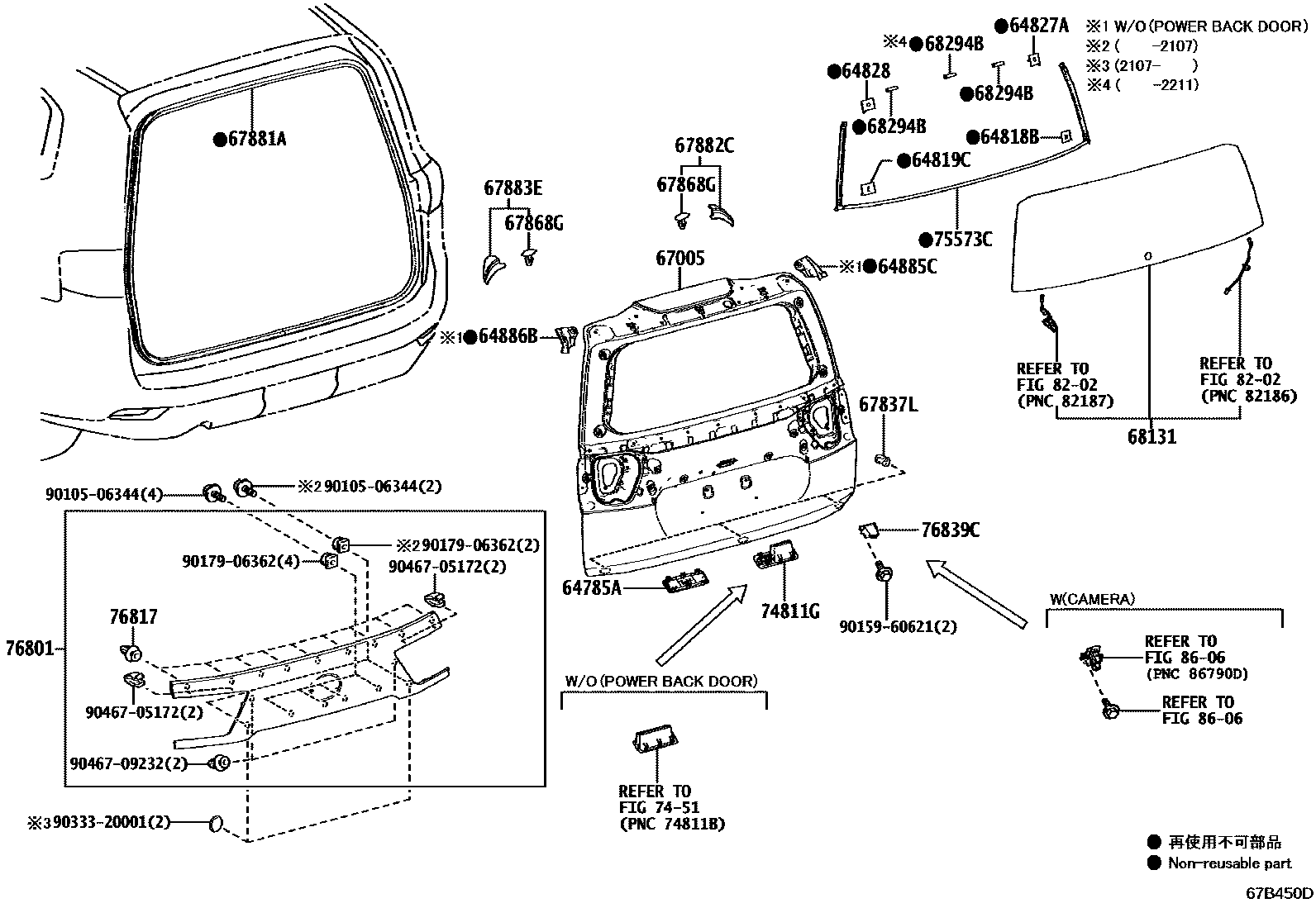

BACK DOOR PANEL & GLASS
64785ABASE, BACK DOOR TRIM
main64785-60010-C0iVJA300..5S..(S,Z);FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202104-202411
BACK DOOR-WITH(POWER BACK DOOR),BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
main64785-60010-E0iVJA300..(V,Z)..EUR;FJA300..Z..(ARL,EUR);FJA300,VJA300..7S..Z;FJA300..V..(ARL,EUR,GCC)202104-202411
NEUTRAL BEIGE,TRIM4#
main64785-60010-E0iVJA300..(V,Z)..EUR;FJA300..Z..(ARL,EUR);FJA300,VJA300..7S..Z;FJA300..V..(ARL,EUR,GCC)202104-202411
BACK DOOR-WITH(POWER BACK DOOR),NEUTRAL BEIGE,TRIM4#
64818BSPACER, BACK DOOR GLASS, NO.1
main64818-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
64819CSPACER, BACK DOOR GLASS, NO.2
main64819-60090iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
64827ACLIP, BACK WINDOW GLASS, RH
64828CLIP, BACK WINDOW GLASS, LH
main64828-60120iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
64885CCHANNEL, BACK DOOR GLASS, RH
BACK DOOR-HATCH DOOR TYPE
BACK DOOR-HATCH DOOR TYPE&REAR SIDE GLASS-PRIVACY(GRAY, TEMPERED)
64886BCHANNEL, BACK DOOR GLASS, LH
BACK DOOR-HATCH DOOR TYPE
BACK DOOR-HATCH DOOR TYPE&REAR SIDE GLASS-PRIVACY(GRAY, TEMPERED)
67005PANEL SUB-ASSY, BACK DOOR
PERIPHERAL MONITOR CAMERA-WITHOUT
PERIPHERAL MONITOR CAMERA-WITH(WITH/BACK GIDE MONITOR)
BACK DOOR-HATCH DOOR TYPE
PERIPHERAL MONITOR CAMERA-WITH(ONLY CAMERA)
BACK DOOR-WITH(POWER BACK DOOR)
BACK MONITOR-WITHOUT
BACK DOOR-WITH(POWER BACK DOOR)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)
main67005-60L70iVJA300..5S..S;VJA300..(V,Z)..EUR;FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,V,Z)..(ARL,EUR,GCC)202411
BACK DOOR-WITH(POWER BACK DOOR)
main67005-60L70iVJA300..5S..S;VJA300..(V,Z)..EUR;FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,V,Z)..(ARL,EUR,GCC)202411
BACK DOOR-WITH(POWER BACK DOOR)&PERIPHERAL MONITOR CAMERA-WITH(WITH/BACK GIDE MONITOR)
main67005-60L70iVJA300..5S..S;VJA300..(V,Z)..EUR;FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,V,Z)..(ARL,EUR,GCC)202411
BACK DOOR-WITH(POWER BACK DOOR)&PERIPHERAL MONITOR CAMERA-WITH(ONLY CAMERA)
main67005-60L70iFJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;FJA300..(S,Z)..(ARL,GCC);VJA300..(S,Z)..(GCC,GEN)202104-202411
BACK DOOR-WITH(POWER BACK DOOR)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)
main67005-60L70iFJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;FJA300..(S,Z)..(ARL,GCC);VJA300..(S,Z)..(GCC,GEN)202104-202411
BACK DOOR-WITH(POWER BACK DOOR)&BACK MONITOR-WITH(WITH/BACK GIDE MONITOR)
main67005-60L70iFJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;FJA300..(S,Z)..(ARL,GCC);VJA300..(S,Z)..(GCC,GEN)202104-202411
BACK DOOR-WITH(POWER BACK DOOR)&BACK MONITOR-WITH(ONLY CAMERA)
main67005-60L70iFJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;FJA300..(S,Z)..(ARL,GCC);VJA300..(S,Z)..(GCC,GEN)202104-202411
BACK DOOR-WITH(POWER BACK DOOR)&BACK MONITOR-WITH(WITH/BACK GIDE MONITOR & WASHER)
main67005-60L70iFJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;FJA300..(S,Z)..(ARL,GCC);VJA300..(S,Z)..(GCC,GEN)202104-202411
BACK MONITOR-WITH(WITH/*PVM & *MTMO)
main67005-60L70iFJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;FJA300..(S,Z)..(ARL,GCC);VJA300..(S,Z)..(GCC,GEN)202104-202411
BACK MONITOR-WITH(WITH/BACK GIDE MONITOR)
main67005-60L70iFJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;FJA300..(S,Z)..(ARL,GCC);VJA300..(S,Z)..(GCC,GEN)202104-202411
BACK MONITOR-WITH(ONLY CAMERA)
main67005-60L70iFJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;FJA300..(S,Z)..(ARL,GCC);VJA300..(S,Z)..(GCC,GEN)202104-202411
BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)
main67005-60L70iFJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;FJA300..(S,Z)..(ARL,GCC);VJA300..(S,Z)..(GCC,GEN)202104-202411
BACK MONITOR-WITH(WITH/BACK GIDE MONITOR & WASHER)
67837LSEAL, DOOR DUST PROOF
main67837-60100iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202111-202411
67868GRETAINER, DOOR WEATHERSTRIP
main67867-12150iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
67881AWEATHERSTRIP, BACK DOOR
sub67881-60181
main67881-60181iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202310-202411
67882CWEATHERSTRIP, BACK DOOR, NO.2
main63191-60020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
67883EWEATHERSTRIP, BACK DOOR, NO.3
68131GLASS, BACK DOOR
main68105-60900iGRJ300..A,V;VJA300..LHD..GEN;FJA300..5S..S..GEN;VJA300..RHD..(S,Z);FJA300..LHD..A..GEN;FJA300,VJA300..V..GCC;FJA300..7S..(S,V,Z)..GEN202104-202411
REAR SIDE GLASS-PRIVACY(GRAY, TEMPERED)
main68105-60900iVJA300..5S..S;FJA300..G..EUR;VJA300..(A,V,Z)..EUR;FJA300..(A,S,V,Z)..(ARL,EUR)202411
BACK DOOR-HATCH DOOR TYPE&REAR SIDE GLASS-PRIVACY(GRAY, TEMPERED)
main68105-60900iVJA300..5S..S;FJA300..G..EUR;VJA300..(A,V,Z)..EUR;FJA300..(A,S,V,Z)..(ARL,EUR)202104-202411
BACK DOOR-WITH(POWER BACK DOOR)&REAR SIDE GLASS-PRIVACY(GRAY, TEMPERED)
REAR SIDE GLASS-UV(GREEN, TEMPERED)
68294BDAM, BACK DOOR GLASS ADHESIVE
main68294-26030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
7451
74811GHANDLE, DOOR PULL
main69291-60050-C0iVJA300..5S..(S,Z);FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202104-202411
BLACK,TRIM2#,3#
main69291-60050-C0iVJA300..5S..(S,Z);FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202104-202411
BLACK,TRIM2#
main69291-60050-C0iVJA300..5S..(S,Z);FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202104-202411
BACK DOOR-WITH(POWER BACK DOOR),BLACK,TRIM2#
main69291-60050-E0iVJA300..(V,Z)..EUR;FJA300..Z..(ARL,EUR);FJA300,VJA300..7S..Z;FJA300..V..(ARL,EUR,GCC)202104-202411
NEUTRAL BEIGE,TRIM4#
main69291-60050-E0iFJA300..V..GEN;FJA300..LHD..7S..A;GRJ300,VJA300..LHD..(A,V)..(GCC,GEN)202104-202411
BACK DOOR-WITH(POWER BACK DOOR),NEUTRAL BEIGE,TRIM4#
75573CMOULDING, BACK WINDOW, OUTSIDE
main75573-60130iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
main76801-60571-A0iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202107-202411
SUPER WHITE 2,040
main76801-60571-A1iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202107-202411
WHITE PEARL CS.,070
PRECIOUS WHITE PEARL,090
main76801-60571-B0iGRJ300,VJA300..A,G,V,Z;FJA300..7S..(A,G,V,Z)..GEN;FJA300..(A,G,V,Z)..(ARL,EUR,GCC)202107-202411
SILVER ME.,1F7
main76801-60571-B1iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202107-202411
GRAY ME.,1G3
main76801-60571-C0iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202107-202411
BLACK,202
main76801-60571-C1iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202107-202411
ATTITUDE BLACK MC.,218
main76801-60571-D0iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202107-202411
DK. RED M.M.,3Q3
AVANT-GARDE BRONZE ME.,4V8
DK. BLUE MC.,8X8
76817CLIP, BACK DOOR OUTSIDE GARNISH
main90467-09206iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
76839CCOVER, BACK DOOR GARNISH
main76839-60020iFJA300..A,G;GRJ300,VJA300..A,G,V;FJA300..V..(EUR,GCC,GEN);FJA300,VJA300..5S..(S,Z)..EUR202104-202411
BACK MONITOR-WITHOUT
PERIPHERAL MONITOR CAMERA-WITHOUT
8202
8606
9010506344
main90105-06344
9015960621
main90159-60621
9017906362
main90179-06362
9033320001
main90333-20001
9046705172
main90467-05172
9046709232
main90467-09232
29 parts on this diagram · 2 diagrams in section
