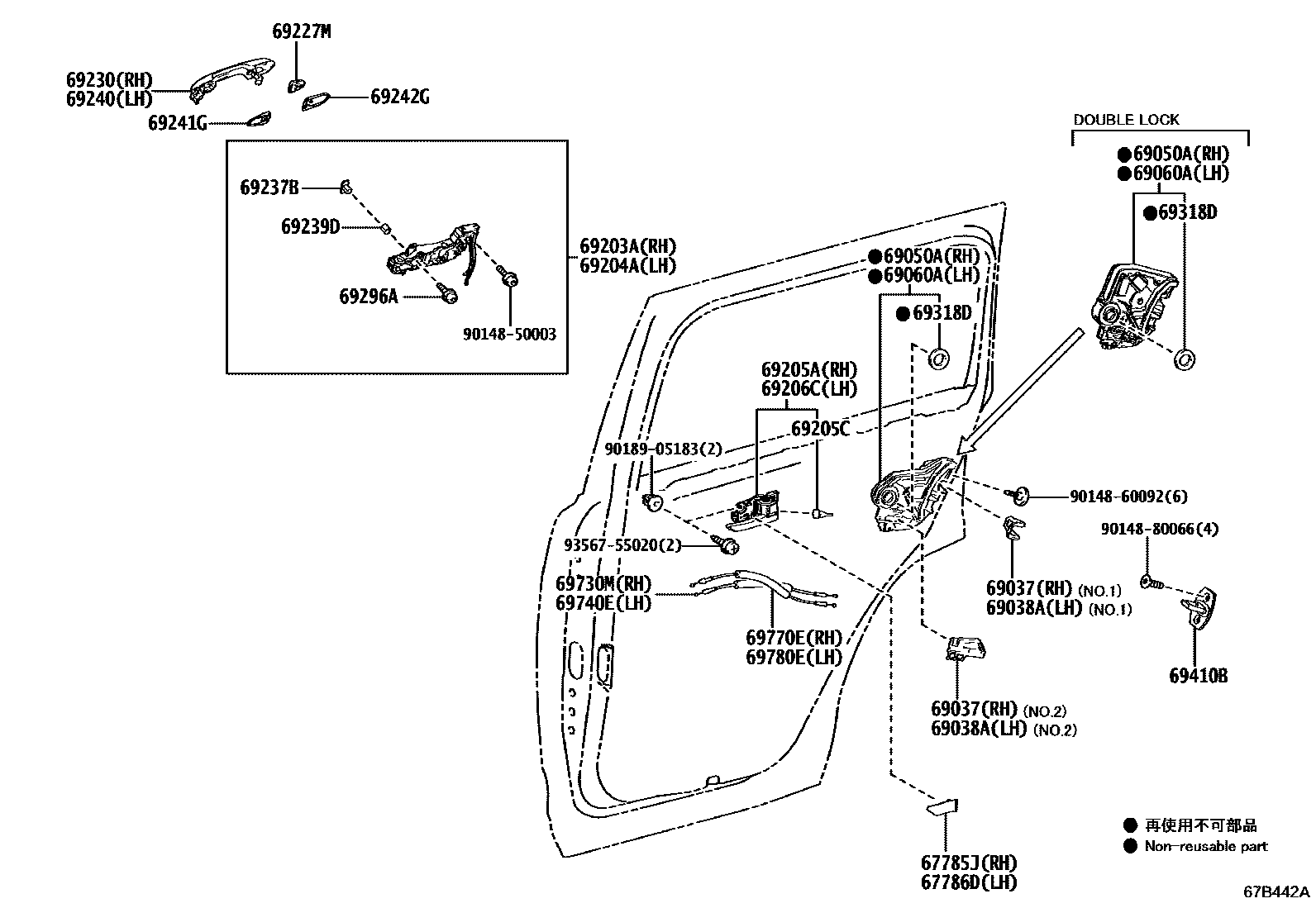

REAR DOOR LOCK & HANDLE

67785JCOVER, REAR DOOR TRIM, UPPER RH

main67785-60050iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

67786DCOVER, REAR DOOR TRIM, UPPER LH

main67786-60050iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69031-76010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

NO.1:REFER ILLUST.

main69037-30010iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

NO.2:REFER ILLUST.

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69032-76010iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

NO.1:REFER ILLUST.

main69038-30010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

NO.2:REFER ILLUST.

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-60160iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

main69050-60160iFJA300..ARL,GCC;FJA300..7S..GEN;FJA300..5S..S..GEN;GRJ300,VJA300..GCC,GEN202104-202411

ECUADOR SPEC

main69050-60160iFJA300..ARL,GCC;FJA300..7S..GEN;FJA300..5S..S..GEN;GRJ300,VJA300..GCC,GEN202104-202411

VIETNAM SPEC

main69050-60170iGRJ300..A202104-202411

KAZAKHSTAN SPEC

main69050-60170iGRJ300..A202411

AZERBAIJAN, GEORGEA SPEC

main69050-60170iGRJ300..A202104-202411

UZBEKISTAN SPEC

main69050-60170iGRJ300..A202104-202411

KYRGYZ SPEC

main69050-60170iGRJ300..A202104-202411

TAJIKISTAN, TURKMENISTAN SPEC

main69050-60170iGRJ300202104-202411

ARMENIA SPEC

main69050-60170iFJA300..EUR;VJA300..5S..S;VJA300..(A,V,Z)..EUR202104-202411

AZER, GEORGIA SPEC

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-60160iVJA300..7S..V..EUR202104-202411

ECUADOR SPEC

main69060-60160iVJA300..7S..V..EUR202104-202411

VIETNAM SPEC

main69060-60160iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

main69060-60170iGRJ300..A202104-202411

KAZAKHSTAN SPEC

main69060-60170iGRJ300..A202104-202411

ARMENIA SPEC

main69060-60170iGRJ300..A202411

AZERBAIJAN, GEORGEA SPEC

main69060-60170iGRJ300..A202104-202411

UZBEKISTAN SPEC

main69060-60170iGRJ300..A202104-202411

KYRGYZ SPEC

main69060-60170iGRJ300..A202104-202411

TAJIKISTAN, TURKMENISTAN SPEC

main69060-60170iFJA300..EUR;VJA300..5S..S;VJA300..(A,V,Z)..EUR202104-202411

AZER, GEORGIA SPEC

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-15010-C1iFJA300,GRJ300,VJA300..A,G202104-202411

BLACK,TRIM2#,4#

main69205-33140-C0iFJA300..S;VJA300..5S..S;VJA300..S..(GCC,GEN)202104-202411

BLACK,TRIM2#,4#

main69205-33140-C0iFJA300..S;VJA300..5S..S;VJA300..S..(GCC,GEN)202107-202411

BLACK,TRIM2#,3#

main69205-33140-C0iFJA300..S;VJA300..5S..S;VJA300..S..(GCC,GEN)202104-202411

BLACK,TRIM2#,3#,4#

main69205-33140-C0iFJA300..S;VJA300..5S..S;VJA300..S..(GCC,GEN)202104-202411

UPGRADE PACKAGE,BLACK,TRIM2#,4#

main69205-33140-C0iFJA300..S;VJA300..5S..S;VJA300..S..(GCC,GEN)202104-202411

UPGRADE PACKAGE(AERO),BLACK,TRIM2#,4#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-15010-C1iFJA300,GRJ300,VJA300..A,G202104-202411

BLACK,TRIM2#,4#

main69206-33150-C0iFJA300,GRJ300,VJA300..A..GCC202107-202411

BLACK,TRIM2#,3#

main69206-33150-C0iFJA300,GRJ300,VJA300..A..GCC202104-202411

BLACK,TRIM2#,4#

main69206-33150-C0iFJA300,GRJ300,VJA300..A..GCC202104-202411

UPGRADE PACKAGE,BLACK,TRIM2#,4#

main69206-33150-C0iFJA300,GRJ300,VJA300..A..GCC202104-202411

UPGRADE PACKAGE(AERO),BLACK,TRIM2#,4#

main69206-33150-C0iFJA300..S;VJA300..5S..S;VJA300..S..(GCC,GEN)202104-202411

BLACK,TRIM2#,3#,4#

69227MCOVER, REAR DOOR OUTSIDE HANDLE

main69227-30130iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-60350-A0iVJA300..LHD..V..(GCC,GEN);FJA300,GRJ300..V..(GCC,GEN)202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,SUPER WHITE 2,040

main69210-60350-A0iVJA300..LHD..V..(GCC,GEN);FJA300,GRJ300..V..(GCC,GEN)202411

AUSTRALIA SAHARA PACKAGE,SUPER WHITE 2,040

main69210-60350-A0iVJA300..LHD..V..(GCC,GEN);FJA300,GRJ300..V..(GCC,GEN)202104-202411

SUPER WHITE 2,040

main69210-60350-A1iFJA300..Z..ARL;FJA300,VJA300..7S..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,WHITE PEARL CS.,070

main69210-60350-A1iFJA300..Z..ARL;FJA300,VJA300..7S..Z202104-202411

WHITE PEARL CS.,070

main69210-60350-A1iFJA300..Z..ARL;FJA300,VJA300..7S..Z202411

AUSTRALIA SAHARA PACKAGE,WHITE PEARL CS.,070

main69210-60350-A2iFJA300..Z..ARL;FJA300,VJA300..7S..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,PRECIOUS WHITE PEARL,090

main69210-60350-A2iFJA300..Z..ARL;FJA300,VJA300..7S..Z202104-202411

PRECIOUS WHITE PEARL,090

main69210-60350-B0iFJA300,GRJ300,VJA300..V..(GCC,GEN)202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,SILVER ME.,1F7

main69210-60350-B0iFJA300..5S..Z..GEN202104-202411

SILVER ME.,1F7

main69210-60350-B0iVJA300..LHD..V..(GCC,GEN);FJA300,GRJ300..V..(GCC,GEN)202411

AUSTRALIA SAHARA PACKAGE,SILVER ME.,1F7

main69210-60350-B1iFJA300..Z..ARL;FJA300,VJA300..7S..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,GRAY ME.,1G3

main69210-60350-B1iFJA300..V..ARL202104-202411

GRAY ME.,1G3

main69210-60350-B1iFJA300..V..ARL202411

AUSTRALIA SAHARA PACKAGE,GRAY ME.,1G3

main69210-60350-C0iFJA300..V..ARL202411

AUSTRALIA SAHARA PACKAGE,BLACK,202

main69210-60350-C0iFJA300..Z..ARL;FJA300,VJA300..7S..Z202104-202411

BLACK,202

main69210-60350-C0iFJA300..Z..ARL;FJA300,VJA300..7S..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,BLACK,202

main69210-60350-C1iFJA300..Z..ARL;FJA300,VJA300..7S..Z202411

AUSTRALIA SAHARA PACKAGE,ATTITUDE BLACK MC.,218

main69210-60350-C1iFJA300..V..ARL202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,ATTITUDE BLACK MC.,218

main69210-60350-C1iFJA300..Z..ARL;FJA300,VJA300..7S..Z202104-202411

ATTITUDE BLACK MC.,218

main69210-60350-D0iVJA300..LHD..V..(GCC,GEN);FJA300,GRJ300..V..(GCC,GEN)202104-202411

DK. RED M.M.,3Q3

main69210-60350-D0iVJA300..LHD..V..(GCC,GEN);FJA300,GRJ300..V..(GCC,GEN)202411

AUSTRALIA SAHARA PACKAGE,DK. RED M.M.,3Q3

main69210-60350-D0iVJA300..LHD..V..(GCC,GEN);FJA300,GRJ300..V..(GCC,GEN)202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,DK. RED M.M.,3Q3

main69210-60350-E0iFJA300..Z..ARL;FJA300,VJA300..7S..Z202104-202411

AVANT-GARDE BRONZE ME.,4V8

main69210-60350-E0iVJA300..LHD..V..(GCC,GEN);FJA300,GRJ300..V..(GCC,GEN)202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,AVANT-GARDE BRONZE ME.,4V8

main69210-60350-E0iVJA300..LHD..V..(GCC,GEN);FJA300,GRJ300..V..(GCC,GEN)202411

AUSTRALIA SAHARA PACKAGE,AVANT-GARDE BRONZE ME.,4V8

main69210-60350-J0iFJA300..5S..Z..GEN202104-202411

DK. BLUE MC.,8X8

main69210-60350-J0iFJA300,GRJ300,VJA300..V..(GCC,GEN)202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,DK. BLUE MC.,8X8

main69210-60400-A0iVJA300..A..GEN202104-202411

SUPER WHITE 2,040

main69210-60400-A0iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202104-202411

SMART ENTRY-WITH(PANIC BUTTON),SUPER WHITE 2,040

main69210-60400-A0iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202104-202411

BACK DOOR-WITH(POWER BACK DOOR),SUPER WHITE 2,040

main69210-60400-A0iFJA300,GRJ300,VJA300..LHD..7S..A202411

SMART ENTRY-WITH(*PBD),SUPER WHITE 2,040

main69210-60400-A0iFJA300..LHD..A..GEN202411

DOOR OUTSIDE HANDLE-COLORED,SUPER WHITE 2,040

main69210-60400-A1iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202104-202411

SMART ENTRY-WITH(PANIC BUTTON),WHITE PEARL CS.,070

main69210-60400-A1iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202104-202411

WHITE PEARL CS.,070

main69210-60400-A1iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202411

SMART ENTRY-WITH(*PBD),WHITE PEARL CS.,070

main69210-60400-A1iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202411

DOOR OUTSIDE HANDLE-COLORED,WHITE PEARL CS.,070

main69210-60400-A1iVJA300..A..GCC;FJA300,GRJ300..A..(GCC,GEN)202104-202411

BACK DOOR-WITH(POWER BACK DOOR),WHITE PEARL CS.,070

main69210-60400-A2iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..V..(EUR,GCC)202104-202411

PRECIOUS WHITE PEARL,090

main69210-60400-A2iFJA300,VJA300..Z..GCC202411

DOOR OUTSIDE HANDLE-COLORED,PRECIOUS WHITE PEARL,090

main69210-60400-B0iVJA300..A..GEN202104-202411

BACK DOOR-WITH(POWER BACK DOOR),SILVER ME.,1F7

main69210-60400-B0iVJA300..A..GEN202104-202411

SMART ENTRY-WITH(PANIC BUTTON),SILVER ME.,1F7

main69210-60400-B0iVJA300..A..GCC;FJA300,GRJ300..A..(GCC,GEN)202104-202411

SILVER ME.,1F7

main69210-60400-B0iFJA300,VJA300..Z..GCC202411

DOOR OUTSIDE HANDLE-COLORED,SILVER ME.,1F7

main69210-60400-B0iFJA300,VJA300..Z..GCC202411

SMART ENTRY-WITH(*PBD),SILVER ME.,1F7

main69210-60400-B1iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202411

DOOR OUTSIDE HANDLE-COLORED,GRAY ME.,1G3

main69210-60400-B1iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202104-202411

GRAY ME.,1G3

main69210-60400-B1iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202411

SMART ENTRY-WITH(*PBD),GRAY ME.,1G3

main69210-60400-B1iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202104-202411

SMART ENTRY-WITH(PANIC BUTTON),GRAY ME.,1G3

main69210-60400-B1iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202104-202411

BACK DOOR-WITH(POWER BACK DOOR),GRAY ME.,1G3

main69210-60400-C0iFJA300,VJA300..Z..GCC202107-202411

BLACK,040 ,070 ,090 ,1G3 ,202 ,3Q3

main69210-60400-C0iFJA300,GRJ300,VJA300..LHD..7S..A202411

DOOR OUTSIDE HANDLE-COLORED,BLACK,202

main69210-60400-C0iFJA300,GRJ300,VJA300..LHD..7S..A202104-202411

SMART ENTRY-WITH(PANIC BUTTON),BLACK,202

main69210-60400-C0iFJA300,GRJ300,VJA300..LHD..7S..A202107-202411

SMART ENTRY-WITH(*PBD),BLACK,202

main69210-60400-C0iFJA300,GRJ300,VJA300..LHD..7S..A202104-202411

BLACK,202

main69210-60400-C0iVJA300..A..GCC;FJA300,GRJ300..A..(GCC,GEN)202104-202411

BACK DOOR-WITH(POWER BACK DOOR),BLACK,202

main69210-60400-C1iVJA300..A..GCC;FJA300,GRJ300..A..(GCC,GEN)202104-202411

SMART ENTRY-WITH(PANIC BUTTON),ATTITUDE BLACK MC.,218

main69210-60400-C1iVJA300..A..GCC;FJA300,GRJ300..A..(GCC,GEN)202104-202411

BACK DOOR-WITH(POWER BACK DOOR),ATTITUDE BLACK MC.,218

main69210-60400-C1iVJA300..A..GCC;FJA300,GRJ300..A..(GCC,GEN)202104-202411

ATTITUDE BLACK MC.,218

main69210-60400-C1iFJA300,VJA300..Z..GCC202411

DOOR OUTSIDE HANDLE-COLORED,ATTITUDE BLACK MC.,218

main69210-60400-C1iFJA300,VJA300..Z..GCC202411

SMART ENTRY-WITH(*PBD),ATTITUDE BLACK MC.,218

main69210-60400-D0iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202104-202411

DK. RED M.M.,3Q3

main69210-60400-D0iFJA300,GRJ300,VJA300..LHD..7S..A202411

SMART ENTRY-WITH(*PBD),DK. RED M.M.,3Q3

main69210-60400-D0iFJA300..LHD..A..GEN202411

DOOR OUTSIDE HANDLE-COLORED,DK. RED M.M.,3Q3

main69210-60400-D0iFJA300..LHD..A..GEN202104-202411

SMART ENTRY-WITH(PANIC BUTTON),DK. RED M.M.,3Q3

main69210-60400-D0iVJA300..A..GEN202104-202411

BACK DOOR-WITH(POWER BACK DOOR),DK. RED M.M.,3Q3

main69210-60400-E0iVJA300..A..GCC;FJA300,GRJ300..A..(GCC,GEN)202104-202411

AVANT-GARDE BRONZE ME.,4V8

main69210-60400-E0iFJA300..LHD..A..GEN202411

DOOR OUTSIDE HANDLE-COLORED,AVANT-GARDE BRONZE ME.,4V8

main69210-60400-E0iFJA300..LHD..A..GEN202411

SMART ENTRY-WITH(*PBD),AVANT-GARDE BRONZE ME.,4V8

main69210-60400-E0iFJA300,VJA300..Z..GCC202104-202411

SMART ENTRY-WITH(PANIC BUTTON),AVANT-GARDE BRONZE ME.,4V8

main69210-60400-E0iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202104-202411

BACK DOOR-WITH(POWER BACK DOOR),AVANT-GARDE BRONZE ME.,4V8

main69210-60400-J0iVJA300..A..GEN202104-202411

BACK DOOR-WITH(POWER BACK DOOR),DK. BLUE MC.,8X8

main69210-60400-J0iVJA300..A..GCC;FJA300,GRJ300..A..(GCC,GEN)202104-202411

DK. BLUE MC.,8X8

main69210-60400-J0iVJA300..A..GCC;FJA300,GRJ300..A..(GCC,GEN)202104-202411

SMART ENTRY-WITH(PANIC BUTTON),DK. BLUE MC.,8X8

main69211-60140-A0iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

SMART ENTRY-WITH,SUPER WHITE 2,040

main69211-60140-A0iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

VIETNAM SPEC&SMART ENTRY-WITH(PANIC BUTTON),SUPER WHITE 2,040

main69211-60140-A0iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

SUPER WHITE 2,040

main69211-60140-A1iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

SMART ENTRY-WITH,WHITE PEARL CS.,070

main69211-60140-A1iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

WHITE PEARL CS.,070

main69211-60140-A1iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

VIETNAM SPEC&SMART ENTRY-WITH(PANIC BUTTON),WHITE PEARL CS.,070

main69211-60140-B0iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

SILVER ME.,1F7

main69211-60140-B0iFJA300,VJA300..A..EUR202104-202411

SMART ENTRY-WITH,SILVER ME.,1F7

main69211-60140-B0iFJA300,VJA300..A..EUR202104-202411

VIETNAM SPEC&SMART ENTRY-WITH(PANIC BUTTON),SILVER ME.,1F7

main69211-60140-B1iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

VIETNAM SPEC&SMART ENTRY-WITH(PANIC BUTTON),GRAY ME.,1G3

main69211-60140-B1iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

SMART ENTRY-WITH,GRAY ME.,1G3

main69211-60140-B1iVJA300..A..EUR202104-202411

GRAY ME.,1G3

main69211-60140-C0iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

SMART ENTRY-WITH,BLACK,202

main69211-60140-C0iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

BLACK,202

main69211-60140-C0iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

VIETNAM SPEC&SMART ENTRY-WITH(PANIC BUTTON),BLACK,202

main69211-60140-C1iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

ATTITUDE BLACK MC.,218

main69211-60140-C1iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

SMART ENTRY-WITH,ATTITUDE BLACK MC.,218

main69211-60140-C1iVJA300..A..EUR202104-202411

VIETNAM SPEC&SMART ENTRY-WITH(PANIC BUTTON),ATTITUDE BLACK MC.,218

main69211-60140-D0iFJA300,VJA300..A..EUR202104-202411

SMART ENTRY-WITH,DK. RED M.M.,3Q3

main69211-60140-D0iFJA300,VJA300..A..EUR202104-202411

VIETNAM SPEC&SMART ENTRY-WITH(PANIC BUTTON),DK. RED M.M.,3Q3

main69211-60140-D0iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

DK. RED M.M.,3Q3

main69211-60140-E0iVJA300..A..EUR202104-202411

AVANT-GARDE BRONZE ME.,4V8

main69211-60140-E0iVJA300..A..EUR202104-202411

SMART ENTRY-WITH,AVANT-GARDE BRONZE ME.,4V8

main69211-60140-E0iFJA300,VJA300..A..EUR202104-202411

VIETNAM SPEC&SMART ENTRY-WITH(PANIC BUTTON),AVANT-GARDE BRONZE ME.,4V8

main69211-60140-J0iVJA300..A..EUR202104-202411

VIETNAM SPEC&SMART ENTRY-WITH(PANIC BUTTON),DK. BLUE MC.,8X8

main69211-60140-J0iVJA300..A..EUR202104-202411

DK. BLUE MC.,8X8

main69211-60140-J0iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

SMART ENTRY-WITH,DK. BLUE MC.,8X8

69237BNUT, REAR DOOR HANDLE

main69237-62010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

sub69237-0E010

69239DBUSH, REAR DOOR HANDLE

main69239-47010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-60350-A0iFJA300..Z..ARL;FJA300,VJA300..7S..Z202104-202411

SUPER WHITE 2,040

main69210-60350-A0iFJA300..Z..ARL;FJA300,VJA300..7S..Z202411

AUSTRALIA SAHARA PACKAGE,SUPER WHITE 2,040

main69210-60350-A0iFJA300..Z..ARL;FJA300,VJA300..7S..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,SUPER WHITE 2,040

main69210-60350-A1iFJA300..5S..Z..GEN202104-202411

WHITE PEARL CS.,070

main69210-60350-A1iFJA300..Z..ARL;FJA300,VJA300..7S..Z202411

AUSTRALIA SAHARA PACKAGE,WHITE PEARL CS.,070

main69210-60350-A1iFJA300..Z..ARL;FJA300,VJA300..7S..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,WHITE PEARL CS.,070

main69210-60350-A2iFJA300..Z..ARL;FJA300,VJA300..7S..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,PRECIOUS WHITE PEARL,090

main69210-60350-A2iFJA300..5S..Z..GEN202104-202411

PRECIOUS WHITE PEARL,090

main69210-60350-B0iVJA300..LHD..V..(GCC,GEN);FJA300,GRJ300..V..(GCC,GEN)202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,SILVER ME.,1F7

main69210-60350-B0iVJA300..LHD..V..(GCC,GEN);FJA300,GRJ300..V..(GCC,GEN)202411

AUSTRALIA SAHARA PACKAGE,SILVER ME.,1F7

main69210-60350-B0iVJA300..LHD..V..(GCC,GEN);FJA300,GRJ300..V..(GCC,GEN)202104-202411

SILVER ME.,1F7

main69210-60350-B1iFJA300..V..ARL202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,GRAY ME.,1G3

main69210-60350-B1iFJA300..Z..ARL;FJA300,VJA300..7S..Z202104-202411

GRAY ME.,1G3

main69210-60350-B1iFJA300..Z..ARL;FJA300,VJA300..7S..Z202411

AUSTRALIA SAHARA PACKAGE,GRAY ME.,1G3

main69210-60350-C0iFJA300..V..ARL202411

AUSTRALIA SAHARA PACKAGE,BLACK,202

main69210-60350-C0iFJA300..Z..ARL;FJA300,VJA300..7S..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,BLACK,202

main69210-60350-C0iFJA300..5S..Z..GEN202104-202411

BLACK,202

main69210-60350-C1iFJA300..V..ARL202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,ATTITUDE BLACK MC.,218

main69210-60350-C1iFJA300..5S..Z..GEN202104-202411

ATTITUDE BLACK MC.,218

main69210-60350-C1iVJA300..LHD..V..(GCC,GEN);FJA300,GRJ300..V..(GCC,GEN)202411

AUSTRALIA SAHARA PACKAGE,ATTITUDE BLACK MC.,218

main69210-60350-D0iFJA300..Z..ARL;FJA300,VJA300..7S..Z202104-202411

DK. RED M.M.,3Q3

main69210-60350-D0iFJA300..Z..ARL;FJA300,VJA300..7S..Z202411

AUSTRALIA SAHARA PACKAGE,DK. RED M.M.,3Q3

main69210-60350-D0iFJA300..Z..ARL;FJA300,VJA300..7S..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,DK. RED M.M.,3Q3

main69210-60350-E0iFJA300..5S..Z..GEN202104-202411

AVANT-GARDE BRONZE ME.,4V8

main69210-60350-E0iVJA300..LHD..V..(GCC,GEN);FJA300,GRJ300..V..(GCC,GEN)202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,AVANT-GARDE BRONZE ME.,4V8

main69210-60350-E0iFJA300..V..ARL202411

AUSTRALIA SAHARA PACKAGE,AVANT-GARDE BRONZE ME.,4V8

main69210-60350-J0iFJA300,GRJ300,VJA300..V..(GCC,GEN)202104-202411

DK. BLUE MC.,8X8

main69210-60350-J0iFJA300,GRJ300,VJA300..V..(GCC,GEN)202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,DK. BLUE MC.,8X8

main69210-60400-A0iVJA300..A..GEN202104-202411

SUPER WHITE 2,040

main69210-60400-A0iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202104-202411

BACK DOOR-WITH(POWER BACK DOOR),SUPER WHITE 2,040

main69210-60400-A0iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202104-202411

SMART ENTRY-WITH(PANIC BUTTON),SUPER WHITE 2,040

main69210-60400-A0iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202411

SMART ENTRY-WITH(*PBD),SUPER WHITE 2,040

main69210-60400-A0iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202411

DOOR OUTSIDE HANDLE-COLORED,SUPER WHITE 2,040

main69210-60400-A1iVJA300..A..GEN202104-202411

BACK DOOR-WITH(POWER BACK DOOR),WHITE PEARL CS.,070

main69210-60400-A1iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202104-202411

SMART ENTRY-WITH(PANIC BUTTON),WHITE PEARL CS.,070

main69210-60400-A1iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202104-202411

WHITE PEARL CS.,070

main69210-60400-A1iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202411

SMART ENTRY-WITH(*PBD),WHITE PEARL CS.,070

main69210-60400-A1iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202411

DOOR OUTSIDE HANDLE-COLORED,WHITE PEARL CS.,070

main69210-60400-A2iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..V..(EUR,GCC)202104-202411

PRECIOUS WHITE PEARL,090

main69210-60400-A2iFJA300,VJA300..Z..GCC202411

DOOR OUTSIDE HANDLE-COLORED,PRECIOUS WHITE PEARL,090

main69210-60400-B0iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202411

DOOR OUTSIDE HANDLE-COLORED,SILVER ME.,1F7

main69210-60400-B0iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202104-202411

SILVER ME.,1F7

main69210-60400-B0iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202411

SMART ENTRY-WITH(*PBD),SILVER ME.,1F7

main69210-60400-B0iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202104-202411

SMART ENTRY-WITH(PANIC BUTTON),SILVER ME.,1F7

main69210-60400-B0iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202104-202411

BACK DOOR-WITH(POWER BACK DOOR),SILVER ME.,1F7

main69210-60400-B1iFJA300..LHD..A..GEN202104-202411

GRAY ME.,1G3

main69210-60400-B1iFJA300,VJA300..Z..GCC202411

DOOR OUTSIDE HANDLE-COLORED,GRAY ME.,1G3

main69210-60400-B1iFJA300,VJA300..Z..GCC202104-202411

SMART ENTRY-WITH(PANIC BUTTON),GRAY ME.,1G3

main69210-60400-B1iFJA300,VJA300..Z..GCC202411

SMART ENTRY-WITH(*PBD),GRAY ME.,1G3

main69210-60400-B1iVJA300..A..GCC;FJA300,GRJ300..A..(GCC,GEN)202104-202411

BACK DOOR-WITH(POWER BACK DOOR),GRAY ME.,1G3

main69210-60400-C0iFJA300,GRJ300,VJA300..LHD..7S..A202411

DOOR OUTSIDE HANDLE-COLORED,BLACK,202

main69210-60400-C0iFJA300..S;VJA300..5S..S;VJA300..S..(GCC,GEN)202107-202411

BLACK,040 ,070 ,090 ,1G3 ,202 ,3Q3

main69210-60400-C0iFJA300..S;VJA300..5S..S;VJA300..S..(GCC,GEN)202104-202411

BLACK,202

main69210-60400-C0iFJA300..S;VJA300..5S..S;VJA300..S..(GCC,GEN)202107-202411

SMART ENTRY-WITH(*PBD),BLACK,202

main69210-60400-C0iFJA300..S;VJA300..5S..S;VJA300..S..(GCC,GEN)202104-202411

SMART ENTRY-WITH(PANIC BUTTON),BLACK,202

main69210-60400-C0iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202104-202411

BACK DOOR-WITH(POWER BACK DOOR),BLACK,202

main69210-60400-C1iVJA300..V;FJA300..Z..EUR;VJA300..5S..(A,S,Z);VJA300..S..(GCC,GEN);FJA300..(A,G,S,V)..(ARL,EUR);FJA300,GRJ300..(S,V)..(GCC,GEN)202104-202411

SMART ENTRY-WITH(PANIC BUTTON),ATTITUDE BLACK MC.,218

main69210-60400-C1iVJA300..A..GEN202104-202411

ATTITUDE BLACK MC.,218

main69210-60400-C1iVJA300..A..GEN202104-202411

BACK DOOR-WITH(POWER BACK DOOR),ATTITUDE BLACK MC.,218

main69210-60400-C1iFJA300,GRJ300,VJA300..LHD..7S..A202411

SMART ENTRY-WITH(*PBD),ATTITUDE BLACK MC.,218

main69210-60400-C1iFJA300..LHD..A..GEN202411

DOOR OUTSIDE HANDLE-COLORED,ATTITUDE BLACK MC.,218

main69210-60400-D0iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202104-202411

BACK DOOR-WITH(POWER BACK DOOR),DK. RED M.M.,3Q3

main69210-60400-D0iFJA300..LHD..A..GEN202104-202411

SMART ENTRY-WITH(PANIC BUTTON),DK. RED M.M.,3Q3

main69210-60400-D0iFJA300..LHD..A..GEN202411

SMART ENTRY-WITH(*PBD),DK. RED M.M.,3Q3

main69210-60400-D0iFJA300..LHD..A..GEN202104-202411

DK. RED M.M.,3Q3

main69210-60400-D0iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202411

DOOR OUTSIDE HANDLE-COLORED,DK. RED M.M.,3Q3

main69210-60400-E0iVJA300..A..GCC;FJA300,GRJ300..A..(GCC,GEN)202104-202411

SMART ENTRY-WITH(PANIC BUTTON),AVANT-GARDE BRONZE ME.,4V8

main69210-60400-E0iFJA300..LHD..A..GEN202104-202411

AVANT-GARDE BRONZE ME.,4V8

main69210-60400-E0iVJA300..A..GEN202104-202411

BACK DOOR-WITH(POWER BACK DOOR),AVANT-GARDE BRONZE ME.,4V8

main69210-60400-E0iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202411

DOOR OUTSIDE HANDLE-COLORED,AVANT-GARDE BRONZE ME.,4V8

main69210-60400-E0iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202411

SMART ENTRY-WITH(*PBD),AVANT-GARDE BRONZE ME.,4V8

main69210-60400-J0iVJA300..V;FJA300..Z..EUR;VJA300..(A,Z)..EUR;FJA300..(A,G,V)..(ARL,EUR);FJA300,GRJ300..V..(GCC,GEN)202104-202411

SMART ENTRY-WITH(PANIC BUTTON),DK. BLUE MC.,8X8

main69210-60400-J0iVJA300..A..GEN202104-202411

DK. BLUE MC.,8X8

main69210-60400-J0iVJA300..A..GEN202104-202411

BACK DOOR-WITH(POWER BACK DOOR),DK. BLUE MC.,8X8

main69211-60140-A0iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

SUPER WHITE 2,040

main69211-60140-A0iFJA300,VJA300..A..EUR202104-202411

SMART ENTRY-WITH,SUPER WHITE 2,040

main69211-60140-A0iFJA300,VJA300..A..EUR202104-202411

VIETNAM SPEC&SMART ENTRY-WITH(PANIC BUTTON),SUPER WHITE 2,040

main69211-60140-A1iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

WHITE PEARL CS.,070

main69211-60140-A1iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

VIETNAM SPEC&SMART ENTRY-WITH(PANIC BUTTON),WHITE PEARL CS.,070

main69211-60140-A1iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

SMART ENTRY-WITH,WHITE PEARL CS.,070

main69211-60140-B0iFJA300,VJA300..A..EUR202104-202411

SILVER ME.,1F7

main69211-60140-B0iFJA300,VJA300..A..EUR202104-202411

SMART ENTRY-WITH,SILVER ME.,1F7

main69211-60140-B0iFJA300,VJA300..A..EUR202104-202411

VIETNAM SPEC&SMART ENTRY-WITH(PANIC BUTTON),SILVER ME.,1F7

main69211-60140-B1iFJA300,VJA300..A..EUR202104-202411

VIETNAM SPEC&SMART ENTRY-WITH(PANIC BUTTON),GRAY ME.,1G3

main69211-60140-B1iFJA300,VJA300..A..EUR202104-202411

SMART ENTRY-WITH,GRAY ME.,1G3

main69211-60140-B1iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

GRAY ME.,1G3

main69211-60140-C0iVJA300..A..EUR202104-202411

BLACK,202

main69211-60140-C0iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

VIETNAM SPEC&SMART ENTRY-WITH(PANIC BUTTON),BLACK,202

main69211-60140-C0iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

SMART ENTRY-WITH,BLACK,202

main69211-60140-C1iFJA300,VJA300..A..EUR202104-202411

ATTITUDE BLACK MC.,218

main69211-60140-C1iFJA300,VJA300..A..EUR202104-202411

SMART ENTRY-WITH,ATTITUDE BLACK MC.,218

main69211-60140-C1iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

VIETNAM SPEC&SMART ENTRY-WITH(PANIC BUTTON),ATTITUDE BLACK MC.,218

main69211-60140-D0iFJA300,VJA300..A..EUR202104-202411

DK. RED M.M.,3Q3

main69211-60140-D0iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

VIETNAM SPEC&SMART ENTRY-WITH(PANIC BUTTON),DK. RED M.M.,3Q3

main69211-60140-D0iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

SMART ENTRY-WITH,DK. RED M.M.,3Q3

main69211-60140-E0iFJA300,VJA300..A..EUR202104-202411

VIETNAM SPEC&SMART ENTRY-WITH(PANIC BUTTON),AVANT-GARDE BRONZE ME.,4V8

main69211-60140-E0iFJA300,VJA300..A..EUR202104-202411

SMART ENTRY-WITH,AVANT-GARDE BRONZE ME.,4V8

main69211-60140-E0iVJA300..A..EUR202104-202411

AVANT-GARDE BRONZE ME.,4V8

main69211-60140-J0iFJA300,VJA300..A..EUR202104-202411

SMART ENTRY-WITH,DK. BLUE MC.,8X8

main69211-60140-J0iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

VIETNAM SPEC&SMART ENTRY-WITH(PANIC BUTTON),DK. BLUE MC.,8X8

main69211-60140-J0iFJA300,GRJ300,VJA300..(A,G)..(GCC,GEN)202104-202411

DK. BLUE MC.,8X8

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-60070iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69296ASCREW, DOOR INSIDE HANDLE

main69296-30010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69730-60070iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69730-60070iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69770-60110iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69770-60110iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

9014850003

main90148-50003

9014860092

main90148-60092

9014880066

main90148-80066

9018905183

main90189-05183

9356755020

main93567-55020

30 parts on this diagram · 1 diagram in section
