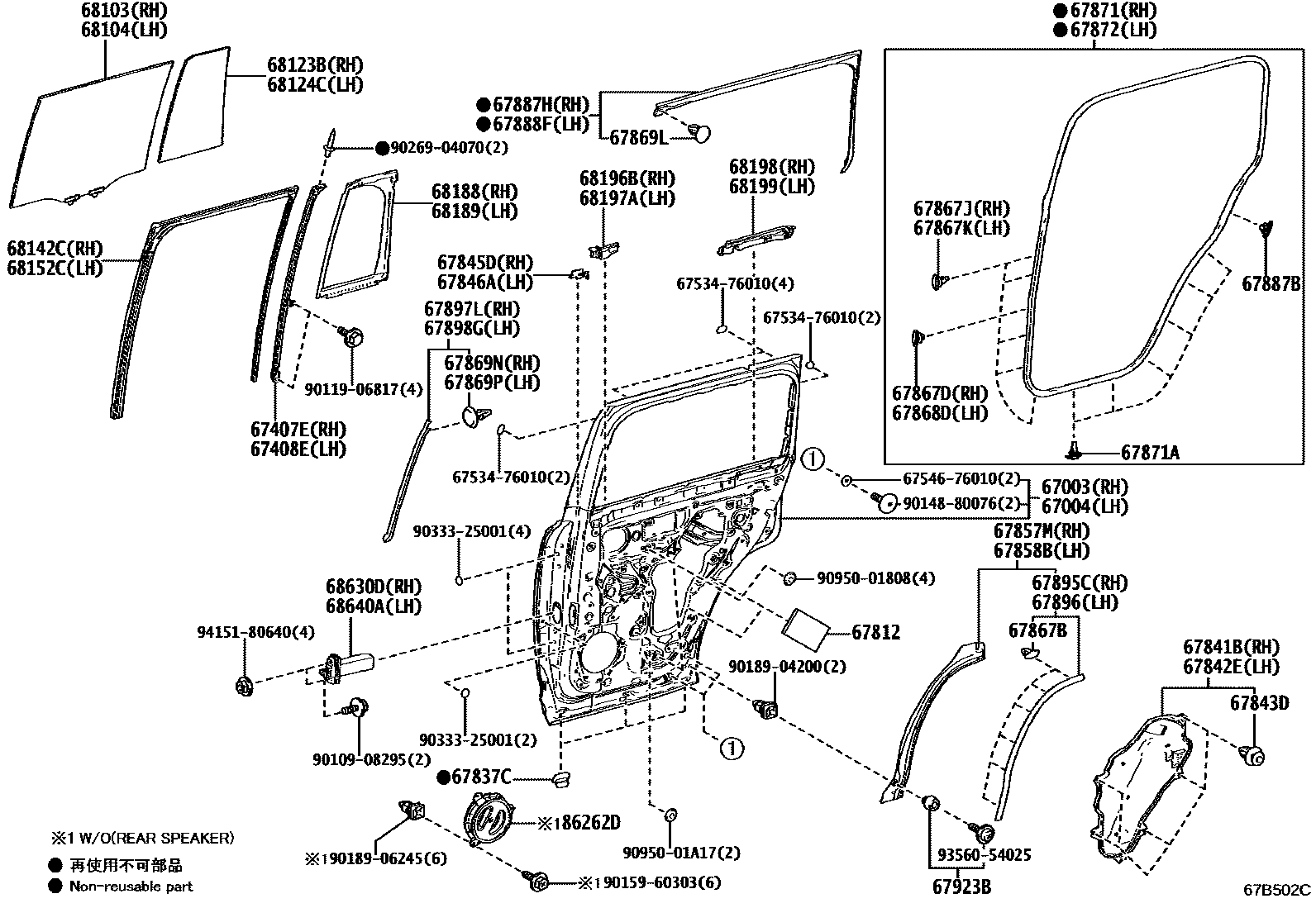

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-60920iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥66,900202104-202411

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-60920iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥66,900202104-202411

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-60090iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥2,390202104-202411

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-60090iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥2,390202104-202411

67812PAD, REAR DOOR SILENCER

main67816-60070iFJA300,GRJ300,VJA300¥3,360202104-202209

67837CSEAL, REAR DOOR DUST PROOF

main67837-60090iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥80202104-202411

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-60150iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥4,360202104-202411

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-60100iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥4,360202104-202411

67843DCLIP, REAR DOOR SERVICE HOLE

main90467-09206iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥80202104-202411

67845DSEAL, REAR DOOR FRONT OUTSIDE, RH

main67845-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥200202104-202411

67846ASEAL, REAR DOOR FRONT OUTSIDE, LH

main67846-60020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥200202104-202411

67857MPROTECTOR, REAR DOOR PANEL, RH

main67850-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥3,060202104-202411

67858BPROTECTOR, REAR DOOR PANEL, LH

main67860-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥3,060202104-202411

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main53145-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥80202104-202411

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-50140iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥100202104-202411

67867JCLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR)

main67867-50170iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥100202104-202411

67867KCLIP, DOOR WEATHERSTRIP, LH(FOR REAR DOOR)

main67867-50170iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥100202104-202411

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-50140iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥100202104-202411

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-33030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥100202104-202411

67869NCLIP, REAR DOOR WEATHERSTRIP, RH

main67869-33030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥100202104-202411

67869PCLIP, REAR DOOR WEATHERSTRIP, LH

main67869-33030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥100202104-202411

67871WEATHERSTRIP, REAR DOOR, RH

main67871-60140iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥4,180202104-202411

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-12150iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥100202104-202411

67872WEATHERSTRIP, REAR DOOR, LH

main67872-60140iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥4,180202104-202411

67887BCLIP(FOR REAR DOOR WEATHERSTRIP)

main90467-04034iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥60202104-202411

67887HWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-60030iGRJ300,VJA300¥2,130202104-202105

sub67887-60031¥2,130

main67887-60031iFJA300,GRJ300,VJA300¥2,130202106-202311

sub67887-60032¥1,940

main67887-60032iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥1,940202312-202411

67888FWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-60030iGRJ300,VJA300¥2,130202104-202105

sub67888-60031¥2,130

main67888-60031iFJA300,GRJ300,VJA300¥2,130202106-202311

sub67888-60032¥1,940

main67888-60032iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥1,940202312-202411

67895CWEATHERSTRIP, REAR DOOR, NO.3 RH

main67895-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥1,280202104-202411

67896WEATHERSTRIP, REAR DOOR, NO.3 LH

main67896-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥1,280202104-202411

67897LWEATHERSTRIP, REAR DOOR, NO.4 RH

main67897-60010iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥1,280202104-202411

67898GWEATHERSTRIP, REAR DOOR, NO.4 LH

main67898-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥1,280202104-202411

67923BCUSHION, REAR DOOR STIFFENER, NO.1

main67923-48060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥190202104-202411

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-60500iVJA300..5S..S;VJA300..(A,V,Z)..EUR;FJA300..(A,S,V,Z)..(ARL,EUR)202104-202411

REAR SIDE GLASS-UV(GREEN, TEMPERED)

main68103-60510iVJA300..5S..S;FJA300..G..EUR;VJA300..(A,V,Z)..EUR;FJA300..(A,S,V,Z)..(ARL,EUR)¥16,300202104-202411

REAR SIDE GLASS-PRIVACY(GRAY, TEMPERED)

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-60490iVJA300..7S..S..EUR202104-202411

REAR SIDE GLASS-UV(GREEN, TEMPERED)

main68104-60500iVJA300..5S..S;FJA300..G..EUR;VJA300..(A,V,Z)..EUR;FJA300..(A,S,V,Z)..(ARL,EUR)¥16,300202104-202411

REAR SIDE GLASS-PRIVACY(GRAY, TEMPERED)

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-60420iVJA300..5S..S;FJA300..7S..EUR;VJA300..(A,V,Z)..EUR;FJA300..5S..(A,S,V,Z)..(ARL,EUR)202104-202411

REAR SIDE GLASS-UV(GREEN, TEMPERED)

main68123-60430iVJA300..7S..S..EUR¥6,000202104-202411

REAR SIDE GLASS-PRIVACY(GRAY, TEMPERED)

68124CGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-60420iFJA300..5S..Z..GEN202104-202411

REAR SIDE GLASS-UV(GREEN, TEMPERED)

main68124-60450iVJA300..7S..S..EUR¥6,000202104-202411

REAR SIDE GLASS-PRIVACY(GRAY, TEMPERED)

68142CRUN, REAR DOOR GLASS, RH

main68142-60080iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥2,660202104-202411

68152CRUN, REAR DOOR GLASS, LH

main68152-60070iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥2,660202104-202411

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-60080iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥2,900202104-202411

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥2,900202104-202411

68196BSEAL, REAR DOOR BELT, FRONT RH

main68196-60010iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥640202104-202411

68197ASEAL, REAR DOOR BELT, FRONT LH

main68197-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥640202104-202411

68198SEAL, REAR DOOR BELT, REAR RH

main68198-60020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥1,190202104-202411

68199SEAL, REAR DOOR BELT, REAR LH

main68199-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥1,190202104-202411

68630DCHECK ASSY, REAR DOOR, RH

main68630-60150iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥3,100202104-202411

68640ACHECK ASSY, REAR DOOR, LH

main68640-60130iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥3,100202104-202411

86262DCOVER, REAR DOOR SPEAKER

main86262-12030iVJA300..A..GEN;FJA300,GRJ300,VJA300..G..(GCC,GEN)¥2,140202104-202411

AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 4SPEAKER

main86262-12030iVJA300..A..GCC;FJA300,GRJ300..A..(GCC,GEN)¥2,140202104-202411

AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 2SPEAKER

main86262-12030iFJA300,VJA300..(A,G)..GEN;FJA300,GRJ300,VJA300..G..GCC¥2,140202104-202411

AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 4SPEAKER

6753476010SEAL, FRONT DOOR DIVISION BAR, LH NO.2

main67534-76010¥80

6754676010CHANNEL, VENT WINDOW DRIP, RH

main67546-76010¥110

9010908295

main90109-08295¥80

9011906817

main90119-06817¥70

9014880076

main90148-80076¥110

9015960303

main90159-60303¥70

9018904200

main90189-04200¥80

9018906245

main90189-06245¥70

9026904070

main90269-04070¥40

9033325001

main90333-25001¥140

9095001808

main90950-01808¥110

9095001A17

main90950-01A17¥100

9356054025

main93560-54025¥70

9415180640

main94151-80640¥60

61 parts on this diagram · 2 diagrams in section
