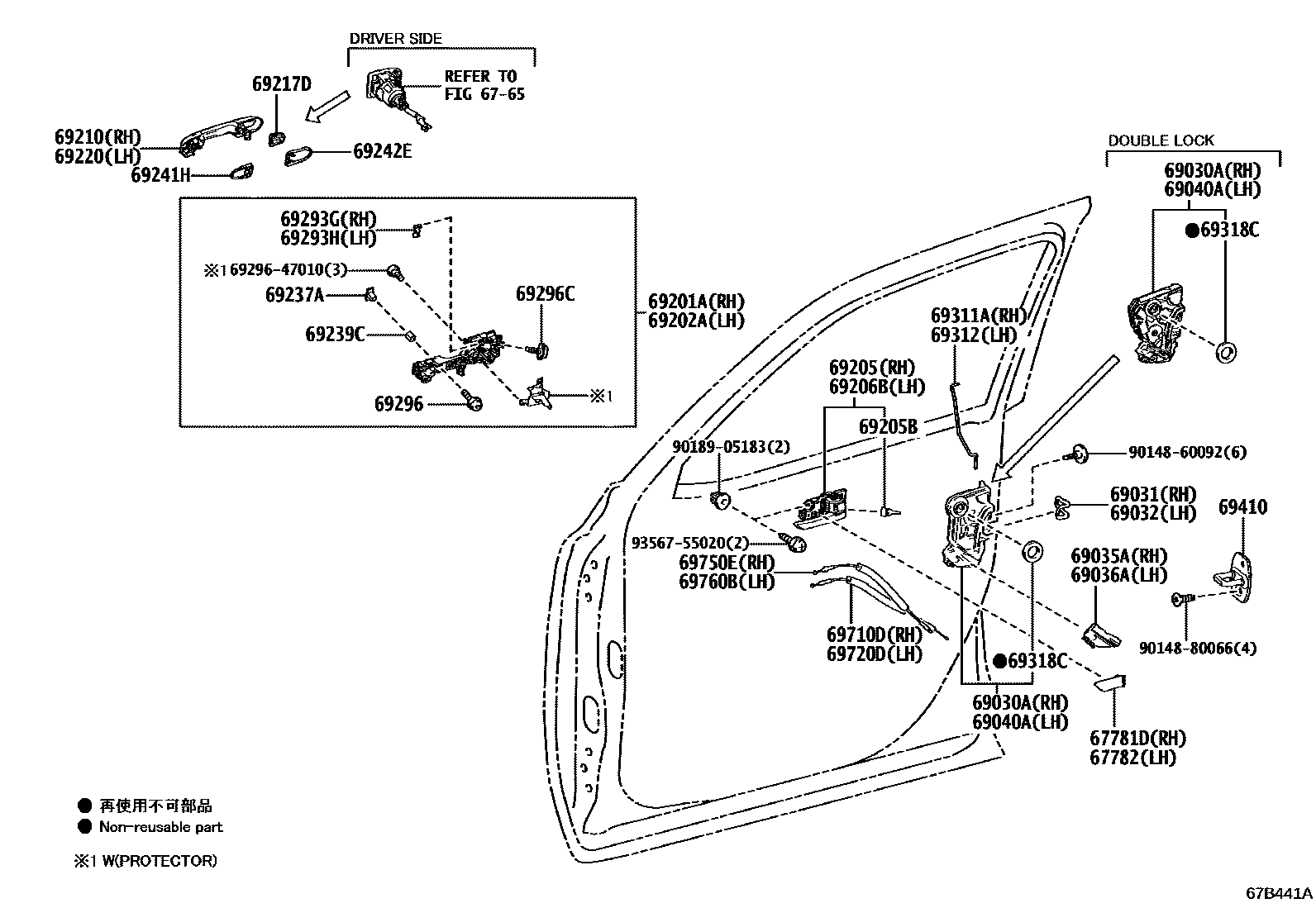

FRONT DOOR LOCK & HANDLE

6765

67781DCOVER, FRONT DOOR TRIM, UPPER RH

main67781-60500iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

67782COVER, FRONT DOOR TRIM, UPPER LH

main67782-60530iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-60290iVJA300..A..EUR;VJA300..7S..V..EUR202104-202411

VIETNAM SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED)

main69030-60290iVJA300..A..EUR;VJA300..7S..V..EUR202104-202411

ECUADOR SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED)

main69030-60290iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

main69030-76011iFJA300,VJA300..RHD202104-202411

main69030-76041iGRJ300..A;FJA300,VJA300..(S,Z)..GCC202411

AZERBAIJAN, GEORGEA SPEC&POWER DOOR LOCK-WITH

main69030-76041iGRJ300..A;FJA300,VJA300..(S,Z)..GCC202104-202411

UZBEKISTAN SPEC&POWER DOOR LOCK-WITH

main69030-76041iGRJ300..A;FJA300,VJA300..(S,Z)..GCC202104-202411

KYRGYZ SPEC&POWER DOOR LOCK-WITH

main69030-76041iGRJ300..A;FJA300,VJA300..(S,Z)..GCC202104-202411

TAJIKISTAN, TURKMENISTAN SPEC&POWER DOOR LOCK-WITH

main69030-76041iGRJ300..A202104-202411

KAZAKHSTAN SPEC&POWER DOOR LOCK-WITH

main69030-76041iGRJ300..A202104-202411

ARMENIA SPEC&POWER DOOR LOCK-WITH

main69030-76041iFJA300..EUR;VJA300..5S..S;VJA300..(A,V,Z)..EUR202104-202411

AZER, GEORGIA SPEC&POWER DOOR LOCK-WITH

69031COVER SET, DOOR LOCK, RH

main69031-76010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69032COVER SET, DOOR LOCK, LH

main69032-76010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-30010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-30010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-52460iFJA300,VJA300..RHD202104-202411

main69040-76031iFJA300..5S..(G,S)..(GCC,GEN);FJA300,GRJ300,VJA300..LHD..7S..(GCC,GEN)202104-202411

VIETNAM SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED)

main69040-76031iVJA300..7S..V..EUR202104-202411

ECUADOR SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED)

main69040-76031iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

main69040-76041iGRJ300..A202104-202411

TAJIKISTAN, TURKMENISTAN SPEC&POWER DOOR LOCK-WITH

main69040-76041iFJA300..EUR;VJA300..5S..S;VJA300..(A,V,Z)..EUR202104-202411

KAZAKHSTAN SPEC&POWER DOOR LOCK-WITH

main69040-76041iFJA300..EUR;VJA300..5S..S;VJA300..(A,V,Z)..EUR202104-202411

ARMENIA SPEC&POWER DOOR LOCK-WITH

main69040-76041iFJA300..EUR;VJA300..5S..S;VJA300..(A,V,Z)..EUR202411

AZERBAIJAN, GEORGEA SPEC&POWER DOOR LOCK-WITH

main69040-76041iFJA300..EUR;VJA300..5S..S;VJA300..(A,V,Z)..EUR202104-202411

UZBEKISTAN SPEC&POWER DOOR LOCK-WITH

main69040-76041iFJA300..EUR;VJA300..5S..S;VJA300..(A,V,Z)..EUR202104-202411

KYRGYZ SPEC&POWER DOOR LOCK-WITH

main69040-76041iFJA300..EUR;VJA300..5S..S;VJA300..(A,V,Z)..EUR202104-202411

AZER, GEORGIA SPEC&POWER DOOR LOCK-WITH

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-60130iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-60080iFJA300..G..EUR;FJA300..7S..GEN;FJA300..ARL,GCC;FJA300..5S..S..GEN;GRJ300,VJA300..GCC,GEN202104-202411

VIETNAM SPEC

main69202-60080iFJA300..G..EUR;FJA300..7S..GEN;FJA300..ARL,GCC;FJA300..5S..S..GEN;GRJ300,VJA300..GCC,GEN202104-202411

VIETNAM SPEC&SMART ENTRY-WITH(PANIC BUTTON)

main69202-60080iFJA300..G..EUR;FJA300..7S..GEN;FJA300..ARL,GCC;FJA300..5S..S..GEN;GRJ300,VJA300..GCC,GEN202411

AZERBAIJAN, GEORGEA SPEC

main69202-60080iFJA300..G..EUR;FJA300..7S..GEN;FJA300..ARL,GCC;FJA300..5S..S..GEN;GRJ300,VJA300..GCC,GEN202104-202411

TAJIKISTAN, TURKMENISTAN SPEC

main69202-60080iFJA300..G..EUR;FJA300..7S..GEN;FJA300..ARL,GCC;FJA300..5S..S..GEN;GRJ300,VJA300..GCC,GEN202411

MOLDOVA SPEC

main69202-60080iVJA300..5S..S;VJA300..(A,V,Z)..EUR;FJA300..(A,S,V,Z)..EUR202104-202411

UKRAINE SPEC

main69202-60080iVJA300..5S..S;VJA300..(A,V,Z)..EUR;FJA300..(A,S,V,Z)..EUR202104-202411

ECUADOR SPEC

main69202-60080iFJA300..ARL,GCC;FJA300..7S..GEN;FJA300..5S..S..GEN;GRJ300,VJA300..GCC,GEN202104-202411

AZER, GEORGIA SPEC

main69202-60080iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

main69202-60090iFJA300..EUR;VJA300..5S..S;VJA300..(A,V,Z)..EUR202104-202411

ARMENIA SPEC

main69202-60090iVJA300..5S..S;VJA300..(A,V,Z)..EUR;FJA300..(A,S,V,Z)..EUR202104-202411

UZBEKISTAN SPEC

main69202-60090iVJA300..5S..S;VJA300..(A,V,Z)..EUR;FJA300..(A,S,V,Z)..EUR202104-202411

KYRGYZ SPEC

main69202-60090iGRJ300..A202104-202411

KAZAKHSTAN SPEC

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-15010-C1iFJA300,GRJ300,VJA300..A,G202104-202411

BLACK,TRIM2#,4#

main69205-33140-C0iFJA300..S;VJA300..5S..S;VJA300..S..(GCC,GEN)202104-202411

BLACK,TRIM2#,3#,4#

main69205-33140-C0iFJA300..S;VJA300..5S..S;VJA300..S..(GCC,GEN)202107-202411

BLACK,TRIM2#,3#

main69205-33140-C0iFJA300..S;VJA300..5S..S;VJA300..S..(GCC,GEN)202104-202411

BLACK,TRIM2#,4#

main69205-33140-C0iFJA300..S;VJA300..5S..S;VJA300..S..(GCC,GEN)202104-202411

UPGRADE PACKAGE,BLACK,TRIM2#,4#

main69205-33140-C0iFJA300..S;VJA300..5S..S;VJA300..S..(GCC,GEN)202104-202411

UPGRADE PACKAGE(AERO),BLACK,TRIM2#,4#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-15010-C1iFJA300,GRJ300,VJA300..A,G202104-202411

BLACK,TRIM2#,4#

main69206-33150-C0iFJA300,GRJ300,VJA300..A..GCC202104-202411

UPGRADE PACKAGE(AERO),BLACK,TRIM2#,4#

main69206-33150-C0iFJA300,GRJ300,VJA300..V202107-202411

BLACK,TRIM2#,3#

main69206-33150-C0iFJA300,GRJ300,VJA300..V202104-202411

BLACK,TRIM2#,3#,4#

main69206-33150-C0iFJA300,GRJ300,VJA300..V202104-202411

BLACK,TRIM2#,4#

main69206-33150-C0iFJA300,GRJ300,VJA300..V202104-202411

UPGRADE PACKAGE,BLACK,TRIM2#,4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-60330-A0iFJA300..V..ARL202104-202411

SUPER WHITE 2,040

main69210-60330-A0iFJA300,VJA300..RHD..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,SUPER WHITE 2,040

main69210-60330-A0iFJA300,VJA300..RHD..Z202411

AUSTRALIA SAHARA PACKAGE,SUPER WHITE 2,040

main69210-60330-A1iFJA300,VJA300..RHD..Z202104-202411

WHITE PEARL CS.,070

main69210-60330-A1iFJA300,VJA300..RHD..Z202411

AUSTRALIA SAHARA PACKAGE,WHITE PEARL CS.,070

main69210-60330-A1iFJA300,VJA300..RHD..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,WHITE PEARL CS.,070

main69210-60330-A2iFJA300,VJA300..RHD..Z202104-202411

PRECIOUS WHITE PEARL,090

main69210-60330-B0iFJA300,VJA300..RHD..Z202104-202411

SILVER ME.,1F7

main69210-60330-B0iFJA300,VJA300..RHD..V..GEN202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,SILVER ME.,1F7

main69210-60330-B0iFJA300,VJA300..RHD..Z202411

AUSTRALIA SAHARA PACKAGE,SILVER ME.,1F7

main69210-60330-B1iFJA300..V..ARL202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,GRAY ME.,1G3

main69210-60330-B1iFJA300..RHD..V..GEN202411

AUSTRALIA SAHARA PACKAGE,GRAY ME.,1G3

main69210-60330-B1iFJA300,VJA300..RHD..V..GEN202104-202411

GRAY ME.,1G3

main69210-60330-C0iFJA300..RHD..V..GEN202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,BLACK,202

main69210-60330-C0iFJA300..V..ARL202104-202411

BLACK,202

main69210-60330-C0iFJA300..V..ARL202411

AUSTRALIA SAHARA PACKAGE,BLACK,202

main69210-60330-C1iFJA300,VJA300..RHD..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,ATTITUDE BLACK MC.,218

main69210-60330-C1iFJA300..RHD..V..GEN202411

AUSTRALIA SAHARA PACKAGE,ATTITUDE BLACK MC.,218

main69210-60330-C1iFJA300..RHD..V..GEN202104-202411

ATTITUDE BLACK MC.,218

main69210-60330-D0iFJA300..V..ARL202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,DK. RED M.M.,3Q3

main69210-60330-D0iFJA300,VJA300..RHD..Z202104-202411

DK. RED M.M.,3Q3

main69210-60330-D0iFJA300,VJA300..RHD..Z202411

AUSTRALIA SAHARA PACKAGE,DK. RED M.M.,3Q3

main69210-60330-E0iFJA300..RHD..V..GEN202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,AVANT-GARDE BRONZE ME.,4V8

main69210-60330-E0iFJA300,VJA300..RHD..Z202104-202411

AVANT-GARDE BRONZE ME.,4V8

main69210-60330-E0iFJA300..RHD..V..GEN202411

AUSTRALIA SAHARA PACKAGE,AVANT-GARDE BRONZE ME.,4V8

main69210-60330-J0iFJA300,VJA300..RHD..V..GEN202104-202411

DK. BLUE MC.,8X8

main69210-60330-J0iFJA300,VJA300..RHD..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,DK. BLUE MC.,8X8

main69210-60350-A0iFJA300,VJA300..LHD..7S..Z202104-202411

SUPER WHITE 2,040

main69210-60350-A0iFJA300,GRJ300,VJA300..LHD..V..(GCC,GEN)202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,SUPER WHITE 2,040

main69210-60350-A1iFJA300,VJA300..LHD..7S..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,WHITE PEARL CS.,070

main69210-60350-A1iFJA300,GRJ300,VJA300..LHD..V..(GCC,GEN)202104-202411

WHITE PEARL CS.,070

main69210-60350-A2iFJA300,GRJ300,VJA300..V..GCC202104-202411

PRECIOUS WHITE PEARL,090

main69210-60350-A2iFJA300,GRJ300,VJA300..V..GCC202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,PRECIOUS WHITE PEARL,090

main69210-60350-B0iFJA300,GRJ300,VJA300..LHD..V..(GCC,GEN)202104-202411

SILVER ME.,1F7

main69210-60350-B0iFJA300,GRJ300,VJA300..LHD..V..(GCC,GEN)202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,SILVER ME.,1F7

main69210-60350-B1iFJA300,GRJ300,VJA300..LHD..V..(GCC,GEN)202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,GRAY ME.,1G3

main69210-60350-B1iFJA300..5S..Z..GEN202104-202411

GRAY ME.,1G3

main69210-60350-C0iFJA300..5S..Z..GEN202104-202411

BLACK,202

main69210-60350-C0iFJA300,VJA300..LHD..7S..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,BLACK,202

main69210-60350-C1iFJA300,VJA300..LHD..7S..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,ATTITUDE BLACK MC.,218

main69210-60350-C1iFJA300..5S..Z..GEN202104-202411

ATTITUDE BLACK MC.,218

main69210-60350-D0iFJA300,VJA300..LHD..7S..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,DK. RED M.M.,3Q3

main69210-60350-D0iFJA300..5S..Z..GEN202104-202411

DK. RED M.M.,3Q3

main69210-60350-E0iFJA300,GRJ300,VJA300..LHD..V..(GCC,GEN)202104-202411

AVANT-GARDE BRONZE ME.,4V8

main69210-60350-E0iFJA300,GRJ300,VJA300..LHD..V..(GCC,GEN)202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,AVANT-GARDE BRONZE ME.,4V8

main69210-60350-J0iFJA300,VJA300..LHD..7S..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,DK. BLUE MC.,8X8

main69210-60350-J0iFJA300,GRJ300,VJA300..LHD..V..(GCC,GEN)202104-202411

DK. BLUE MC.,8X8

main69210-60390-A0iFJA300,VJA300..RHD..(A,G,V)202104-202411

SUPER WHITE 2,040

main69210-60390-A1iFJA300,VJA300..RHD..(A,G,V)202104-202411

WHITE PEARL CS.,070

main69210-60390-B0iFJA300,VJA300..RHD..(A,G,V)202104-202411

SILVER ME.,1F7

main69210-60390-B1iFJA300,VJA300..RHD..(A,G,V)202104-202411

GRAY ME.,1G3

main69210-60390-C0iFJA300,VJA300..RHD..S202107-202411

BLACK,040 ,070 ,090 ,1G3 ,202 ,3Q3

main69210-60390-C0iFJA300,VJA300..RHD..S202104-202411

BLACK,202

main69210-60390-C1iFJA300,VJA300..RHD..(A,G,S,V)202104-202411

ATTITUDE BLACK MC.,218

main69210-60390-D0iFJA300,VJA300..RHD..(A,G,V)202104-202411

DK. RED M.M.,3Q3

main69210-60390-E0iFJA300,VJA300..RHD..(A,G,V)202104-202411

AVANT-GARDE BRONZE ME.,4V8

main69210-60390-J0iFJA300,VJA300..RHD..(A,G,V)202104-202411

DK. BLUE MC.,8X8

main69210-60400-A0iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V)202104-202411

SUPER WHITE 2,040

main69210-60400-A0iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V)202411

DOOR OUTSIDE HANDLE-COLORED,SUPER WHITE 2,040

main69210-60400-A1iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V)202104-202411

WHITE PEARL CS.,070

main69210-60400-A1iFJA300,VJA300..Z..GCC202411

DOOR OUTSIDE HANDLE-COLORED,WHITE PEARL CS.,070

main69210-60400-A2iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..V..(EUR,GCC)202104-202411

PRECIOUS WHITE PEARL,090

main69210-60400-A2iFJA300,VJA300..Z..GCC202411

DOOR OUTSIDE HANDLE-COLORED,PRECIOUS WHITE PEARL,090

main69210-60400-B0iFJA300,VJA300..Z..GCC202104-202411

SILVER ME.,1F7

main69210-60400-B0iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V)202411

DOOR OUTSIDE HANDLE-COLORED,SILVER ME.,1F7

main69210-60400-B1iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V)202104-202411

GRAY ME.,1G3

main69210-60400-B1iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V)202411

DOOR OUTSIDE HANDLE-COLORED,GRAY ME.,1G3

main69210-60400-C0iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V)202104-202411

BLACK,202

main69210-60400-C0iFJA300,VJA300..Z..GCC202411

DOOR OUTSIDE HANDLE-COLORED,BLACK,202

main69210-60400-C0iFJA300,VJA300..Z..GCC202107-202411

BLACK,040 ,070 ,090 ,1G3 ,202 ,3Q3

main69210-60400-C1iFJA300,VJA300..Z..GCC202104-202411

ATTITUDE BLACK MC.,218

main69210-60400-C1iFJA300..Z..EUR;VJA300..5S..(S,Z);VJA300..LHD..(A,G,V);VJA300..LHD..S..(GCC,GEN);FJA300,GRJ300..LHD..(A,G,S,V)202411

DOOR OUTSIDE HANDLE-COLORED,ATTITUDE BLACK MC.,218

main69210-60400-D0iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V)202411

DOOR OUTSIDE HANDLE-COLORED,DK. RED M.M.,3Q3

main69210-60400-D0iFJA300,VJA300..Z..GCC202104-202411

DK. RED M.M.,3Q3

main69210-60400-E0iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V)202104-202411

AVANT-GARDE BRONZE ME.,4V8

main69210-60400-E0iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V)202411

DOOR OUTSIDE HANDLE-COLORED,AVANT-GARDE BRONZE ME.,4V8

main69210-60400-J0iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V)202104-202411

DK. BLUE MC.,8X8

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-30140iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-60330-A0iFJA300,GRJ300,VJA300..LHD..V..(GCC,GEN)202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,SUPER WHITE 2,040

main69210-60330-A0iFJA300,VJA300..LHD..7S..Z202104-202411

SUPER WHITE 2,040

main69210-60330-A1iFJA300..5S..Z..GEN202104-202411

WHITE PEARL CS.,070

main69210-60330-A1iFJA300,VJA300..LHD..7S..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,WHITE PEARL CS.,070

main69210-60330-A2iFJA300,VJA300..LHD..7S..Z202104-202411

PRECIOUS WHITE PEARL,090

main69210-60330-A2iFJA300,VJA300..LHD..7S..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,PRECIOUS WHITE PEARL,090

main69210-60330-B0iFJA300..5S..Z..GEN202104-202411

SILVER ME.,1F7

main69210-60330-B0iFJA300,GRJ300,VJA300..LHD..V..(GCC,GEN)202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,SILVER ME.,1F7

main69210-60330-B1iFJA300,GRJ300,VJA300..LHD..V..(GCC,GEN)202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,GRAY ME.,1G3

main69210-60330-B1iFJA300,VJA300..LHD..7S..Z202104-202411

GRAY ME.,1G3

main69210-60330-C0iFJA300..5S..Z..GEN202104-202411

BLACK,202

main69210-60330-C0iFJA300,VJA300..LHD..7S..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,BLACK,202

main69210-60330-C1iFJA300,GRJ300,VJA300..LHD..V..(GCC,GEN)202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,ATTITUDE BLACK MC.,218

main69210-60330-C1iFJA300,GRJ300,VJA300..LHD..V..(GCC,GEN)202104-202411

ATTITUDE BLACK MC.,218

main69210-60330-D0iFJA300..5S..Z..GEN202104-202411

DK. RED M.M.,3Q3

main69210-60330-D0iFJA300,VJA300..LHD..7S..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,DK. RED M.M.,3Q3

main69210-60330-E0iFJA300,GRJ300,VJA300..LHD..V..(GCC,GEN)202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,AVANT-GARDE BRONZE ME.,4V8

main69210-60330-E0iFJA300,VJA300..LHD..7S..Z202104-202411

AVANT-GARDE BRONZE ME.,4V8

main69210-60330-J0iFJA300..5S..Z..GEN202104-202411

DK. BLUE MC.,8X8

main69210-60330-J0iFJA300,VJA300..LHD..7S..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,DK. BLUE MC.,8X8

main69210-60350-A0iFJA300,VJA300..RHD..Z202104-202411

SUPER WHITE 2,040

main69210-60350-A0iFJA300,VJA300..RHD..Z202411

AUSTRALIA SAHARA PACKAGE,SUPER WHITE 2,040

main69210-60350-A0iFJA300,VJA300..RHD..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,SUPER WHITE 2,040

main69210-60350-A1iFJA300,VJA300..RHD..V..GEN202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,WHITE PEARL CS.,070

main69210-60350-A1iFJA300,VJA300..RHD..V..GEN202104-202411

WHITE PEARL CS.,070

main69210-60350-A1iFJA300,VJA300..RHD..Z202411

AUSTRALIA SAHARA PACKAGE,WHITE PEARL CS.,070

main69210-60350-A2iFJA300,VJA300..RHD..Z202104-202411

PRECIOUS WHITE PEARL,090

main69210-60350-B0iFJA300,VJA300..RHD..Z202104-202411

SILVER ME.,1F7

main69210-60350-B0iFJA300,VJA300..RHD..Z202411

AUSTRALIA SAHARA PACKAGE,SILVER ME.,1F7

main69210-60350-B0iFJA300,VJA300..RHD..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,SILVER ME.,1F7

main69210-60350-B1iFJA300..RHD..V..GEN202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,GRAY ME.,1G3

main69210-60350-B1iFJA300..RHD..V..GEN202104-202411

GRAY ME.,1G3

main69210-60350-B1iFJA300..V..ARL202411

AUSTRALIA SAHARA PACKAGE,GRAY ME.,1G3

main69210-60350-C0iFJA300,VJA300..RHD..V..GEN202104-202411

BLACK,202

main69210-60350-C0iFJA300,VJA300..RHD..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,BLACK,202

main69210-60350-C0iFJA300..RHD..V..GEN202411

AUSTRALIA SAHARA PACKAGE,BLACK,202

main69210-60350-C1iFJA300,VJA300..RHD..Z202104-202411

ATTITUDE BLACK MC.,218

main69210-60350-C1iFJA300..V..ARL202411

AUSTRALIA SAHARA PACKAGE,ATTITUDE BLACK MC.,218

main69210-60350-C1iFJA300..V..ARL202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,ATTITUDE BLACK MC.,218

main69210-60350-D0iFJA300,VJA300..RHD..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,DK. RED M.M.,3Q3

main69210-60350-D0iFJA300,VJA300..RHD..Z202411

AUSTRALIA SAHARA PACKAGE,DK. RED M.M.,3Q3

main69210-60350-D0iFJA300,VJA300..RHD..Z202104-202411

DK. RED M.M.,3Q3

main69210-60350-E0iFJA300..V..ARL202411

AUSTRALIA SAHARA PACKAGE,AVANT-GARDE BRONZE ME.,4V8

main69210-60350-E0iFJA300..V..ARL202104-202411

AVANT-GARDE BRONZE ME.,4V8

main69210-60350-E0iFJA300,VJA300..RHD..Z202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,AVANT-GARDE BRONZE ME.,4V8

main69210-60350-J0iFJA300,VJA300..RHD..V..GEN202104-202411

DOOR OUTSIDE HANDLE-COLORED & PLATING,DK. BLUE MC.,8X8

main69210-60350-J0iFJA300,VJA300..RHD..V..GEN202104-202411

DK. BLUE MC.,8X8

main69210-60390-A0iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V)202104-202411

SUPER WHITE 2,040

main69210-60390-A0iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V)202411

DOOR OUTSIDE HANDLE-COLORED,SUPER WHITE 2,040

main69210-60390-A1iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V)202104-202411

WHITE PEARL CS.,070

main69210-60390-A1iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V)202411

DOOR OUTSIDE HANDLE-COLORED,WHITE PEARL CS.,070

main69210-60390-A2iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..V..(EUR,GCC)202411

DOOR OUTSIDE HANDLE-COLORED,PRECIOUS WHITE PEARL,090

main69210-60390-A2iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..V..(EUR,GCC)202104-202411

PRECIOUS WHITE PEARL,090

main69210-60390-B0iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V)202104-202411

SILVER ME.,1F7

main69210-60390-B0iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V)202411

DOOR OUTSIDE HANDLE-COLORED,SILVER ME.,1F7

main69210-60390-B1iFJA300,VJA300..Z..GCC202411

DOOR OUTSIDE HANDLE-COLORED,GRAY ME.,1G3

main69210-60390-B1iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V)202104-202411

GRAY ME.,1G3

main69210-60390-C0iFJA300,VJA300..Z..GCC202107-202411

BLACK,040 ,070 ,090 ,1G3 ,202 ,3Q3

main69210-60390-C0iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V)202104-202411

BLACK,202

main69210-60390-C0iFJA300,VJA300..Z..GCC202411

DOOR OUTSIDE HANDLE-COLORED,BLACK,202

main69210-60390-C1iVJA300..7S..S..EUR202104-202411

ATTITUDE BLACK MC.,218

main69210-60390-C1iFJA300,VJA300..Z..GCC202411

DOOR OUTSIDE HANDLE-COLORED,ATTITUDE BLACK MC.,218

main69210-60390-D0iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V)202104-202411

DK. RED M.M.,3Q3

main69210-60390-D0iFJA300,VJA300..Z..GCC202411

DOOR OUTSIDE HANDLE-COLORED,DK. RED M.M.,3Q3

main69210-60390-E0iFJA300,VJA300..Z..GCC202104-202411

AVANT-GARDE BRONZE ME.,4V8

main69210-60390-E0iFJA300,VJA300..Z..GCC202411

DOOR OUTSIDE HANDLE-COLORED,AVANT-GARDE BRONZE ME.,4V8

main69210-60390-J0iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V)202104-202411

DK. BLUE MC.,8X8

main69210-60400-A0iFJA300,VJA300..RHD..(A,G,V)202104-202411

SUPER WHITE 2,040

main69210-60400-A1iFJA300,VJA300..RHD..(A,G,V)202104-202411

WHITE PEARL CS.,070

main69210-60400-B0iFJA300,VJA300..RHD..(A,G,V)202104-202411

SILVER ME.,1F7

main69210-60400-B1iFJA300,VJA300..RHD..(A,G,V)202104-202411

GRAY ME.,1G3

main69210-60400-C0iFJA300,VJA300..RHD..(A,G,V)202104-202411

BLACK,202

main69210-60400-C0iFJA300,VJA300..RHD..(A,G,V)202107-202411

BLACK,040 ,070 ,090 ,1G3 ,202 ,3Q3

main69210-60400-C1iFJA300,VJA300..RHD..(A,G,S,V)202104-202411

ATTITUDE BLACK MC.,218

main69210-60400-D0iFJA300,VJA300..RHD..(A,G,V)202104-202411

DK. RED M.M.,3Q3

main69210-60400-E0iFJA300,VJA300..RHD..(A,G,V)202104-202411

AVANT-GARDE BRONZE ME.,4V8

main69210-60400-J0iFJA300,VJA300..RHD..(A,G,V)202104-202411

DK. BLUE MC.,8X8

69237ANUT, FRONT DOOR HANDLE

main69237-62010iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

sub69237-0E010

69239CBUSH, FRONT DOOR HANDLE

main69239-47010iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-60070iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69296SCREW, DOOR INSIDE HANDLE

main69296-30010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69296CSCREW, DOOR INSIDE HANDLE

main90148-50003iGRJ300..A202104-202411

ARMENIA SPEC,RH

main90148-50003iGRJ300..A202104-202411

UZBEKISTAN SPEC,RH

main90148-50003iGRJ300..A202104-202411

KYRGYZ SPEC,RH

main90148-50003iGRJ300..A202104-202411

UKRAINE SPEC

main90148-50003iGRJ300..A202104-202411

ECUADOR SPEC

main90148-50003iGRJ300..A202104-202411

VIETNAM SPEC

main90148-50003iGRJ300..A202104-202411

VIETNAM SPEC&SMART ENTRY-WITH(PANIC BUTTON)

main90148-50003iGRJ300..A202104-202411

AZER, GEORGIA SPEC

main90148-50003iGRJ300..A202104-202411

TAJIKISTAN, TURKMENISTAN SPEC

main90148-50003iGRJ300..A202104-202411

RH

main90148-50003iGRJ300..A202104-202411

KAZAKHSTAN SPEC,RH

main90148-50003iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

main90148-50008iFJA300..EUR;VJA300..5S..S;VJA300..(A,V,Z)..EUR202104-202411

LH

main90148-50008iFJA300..EUR;VJA300..5S..S;VJA300..(A,V,Z)..EUR202104-202411

ARMENIA SPEC,LH

main90148-50008iFJA300..EUR;VJA300..5S..S;VJA300..(A,V,Z)..EUR202104-202411

UZBEKISTAN SPEC,LH

main90148-50008iFJA300..EUR;VJA300..5S..S;VJA300..(A,V,Z)..EUR202104-202411

KYRGYZ SPEC,LH

main90148-50008iGRJ300..A202104-202411

KAZAKHSTAN SPEC,LH

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-60070iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-60070iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

6929647010SCREW, DOOR INSIDE HANDLE

main69296-47010

9014860092

main90148-60092

9014880066

main90148-80066

9018905183

main90189-05183

9356755020

main93567-55020

38 parts on this diagram · 1 diagram in section
