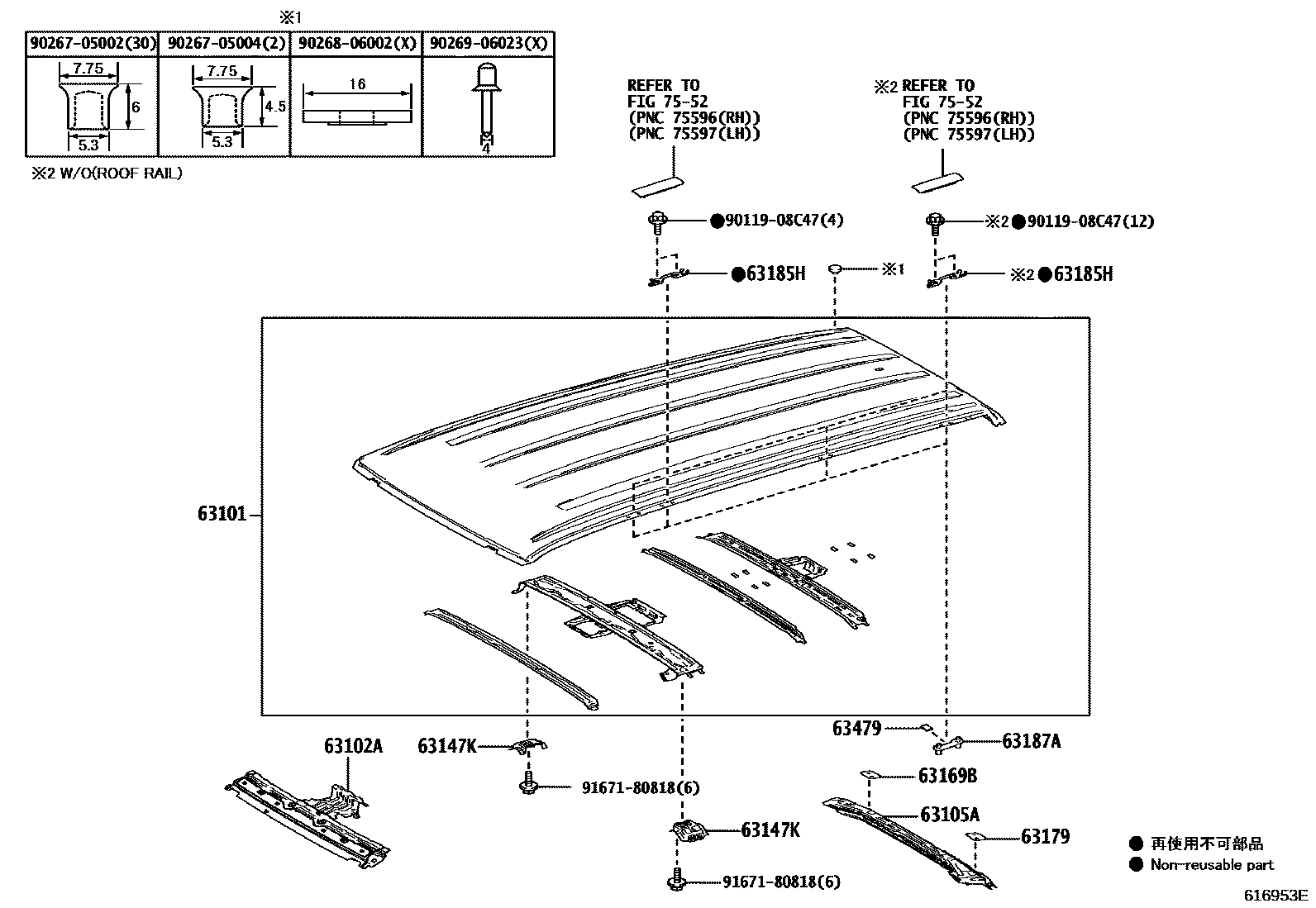

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1ROOF PANEL(MOON ROOF) 0003 1MOON ROOF 0004 1ROOF RAIL 0005 1ROOF RACK

63101PANEL SUB-ASSY, ROOF

main63101-60D10iVJA300..LHD..A;FJA300,GRJ300..A..(EUR,GCC,GEN)202411

MOON ROOF-WITH

main63101-60D20iFJA300..EUR;VJA300..5S..S;VJA300..(V,Z)..EUR202104-202411

QATAR, BAHRAIN SPEC&DATA COMMUNICATION MODULE-WITHOUT

main63101-60D30iVJA300..5S..S;FJA300..V..GEN;FJA300..5S..GCC;VJA300..RHD..(A,S,Z);FJA300..(A,S,Z)..EUR;FJA300..7S..(A,G,S,Z);FJA300..(G,V)..(ARL,EUR);VJA300..LHD..S..(GCC,GEN);GRJ3202411

MOON ROOF-WITHOUT

main63101-60D00supersedes 63101-60D20iVJA300..5S..S;VJA300..(V,Z)..EUR;FJA300..(S,V,Z)..EUR202104-202411

MOON ROOF-WITH

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60190supersedes 63102-60200iVJA300..LHD..A;FJA300,GRJ300..A..(EUR,GCC,GEN)202411

MOON ROOF-WITH

main63102-60200iVJA300..5S..S;FJA300..V..GEN;FJA300..5S..GCC;VJA300..RHD..(A,S,Z);FJA300..(A,S,Z)..EUR;FJA300..7S..(A,G,S,Z);FJA300..(G,V)..(ARL,EUR);VJA300..LHD..S..(GCC,GEN);GRJ3202411

MOON ROOF-WITHOUT

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60290iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

63147KREINFORCEMENT, BACK DOOR OPENING FRAME

main63147-60070×2iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-48010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-48010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

63185HBRACKET, ROOF RACK

main63185-42020×8iGRJ300;VJA300..5S..S;FJA300..7S..G..GCC;VJA300..LHD..S..GEN;VJA300..(A,S,Z)..GCC;VJA300..RHD..(A,S,Z);FJA300..(A,S,Z)..EUR;FJA300..V..(EUR,GEN);FJA300..7S..(A,S,Z).202411

ROOF RACK-ROOF RAIL ONLY(ACCESSORY)

63187ABRACKET, ROOF RACK, REAR

main63187-60040×8iGRJ300,VJA300;FJA300..ARL,GCC,GEN;FJA300..(A,S,V,Z)..EUR202104

63479RETAINER, ROOF INNER RACK

main63479-60020×8iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

ROOF RACK-ROOF RAIL ONLY(ACCESSORY)

7552

9011908C47

main90119-08C47

9026705002

main90267-05002

9026705004

main90267-05004

9026806002

main90268-06002

9026906023

main90269-06023

9167180818

main91671-80818

16 parts on this diagram · 5 diagrams in section
