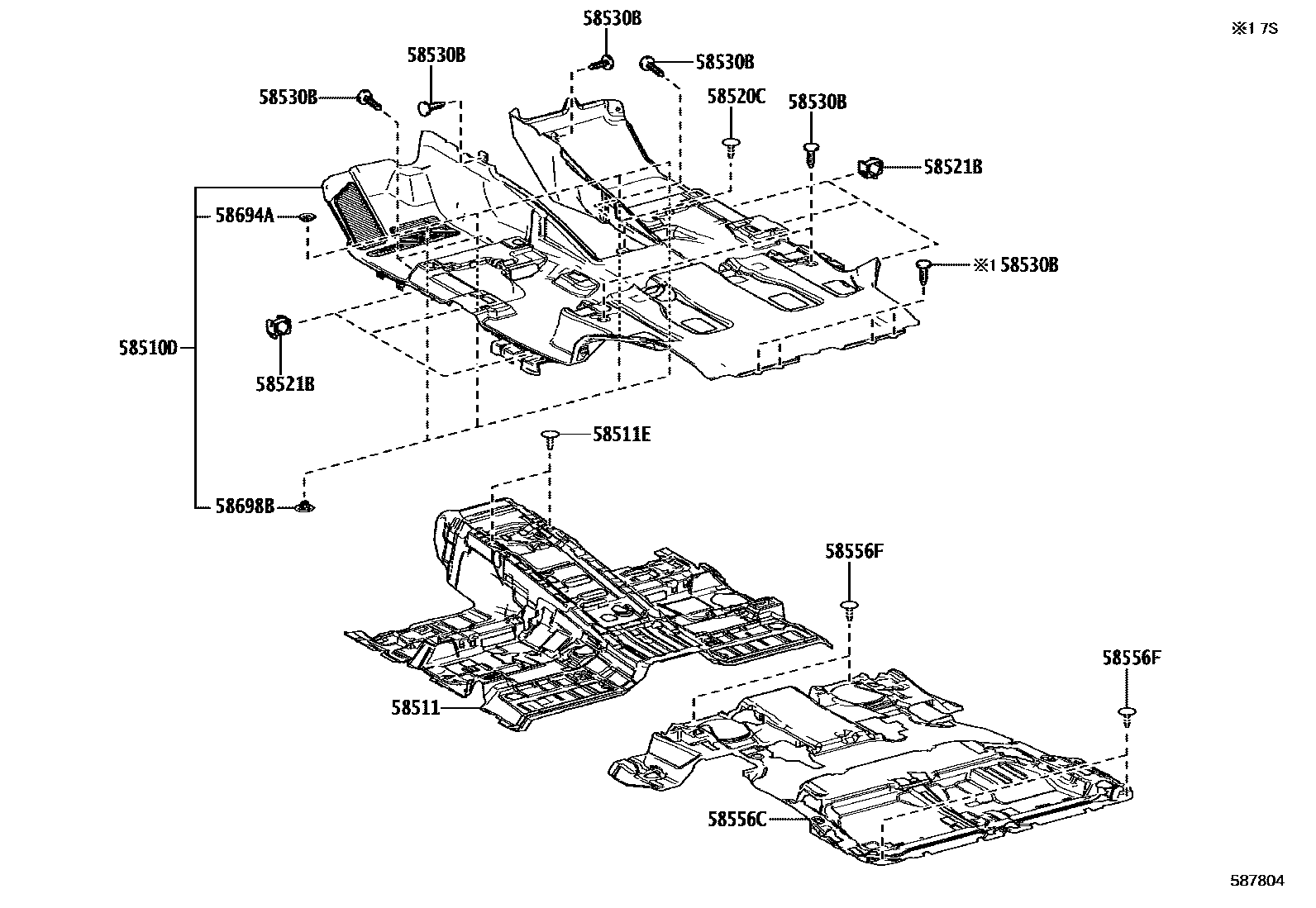

FLOOR MAT & SILENCER PAD

0001 1 0002 1

58510DCARPET ASSY, FLOOR, FRONT

main58510-6AJ70-C0iFJA300,VJA300..LHD..5S..(A,G,V)202104-202411

BLACK,TRIM2#,3#

main58510-6AJ70-C0iFJA300,VJA300..LHD..5S..(A,G,V)202104-202411

BLACK,TRIM2#

main58510-6AJ70-E0iFJA300..5S..Z..GEN202104-202411

NEUTRAL BEIGE,TRIM4#

main58510-6AJ80-C0iFJA300,VJA300..LHD..7S..(S,Z)..(GCC,GEN)202104-202411

BLACK,TRIM2#,3#

main58510-6AJ80-C0iFJA300,VJA300..LHD..7S..(S,Z)..(GCC,GEN)202104-202411

BLACK,TRIM2#

main58510-6AJ80-E0iFJA300,GRJ300,VJA300..LHD..7S..(A,G,V,Z)202104-202411

NEUTRAL BEIGE,TRIM4#

main58510-6AK30-C0iFJA300..(S,Z)..ARL202107-202411

BLACK,TRIM2#

main58510-6AK30-C0iFJA300..(S,Z)..ARL202107-202411

BLACK,TRIM2#,3#

main58510-6AK30-E0iFJA300..(G,Z)..ARL202107-202411

NEUTRAL BEIGE,TRIM4#

main58510-6AK40-C0iFJA300,VJA300..RHD..(S,Z)..GEN202104-202411

BLACK,TRIM2#,3#

main58510-6AK40-C0iFJA300,VJA300..RHD..(S,Z)..GEN202104-202411

BLACK,TRIM2#

main58510-6AK40-E0iFJA300,VJA300..RHD..7S..(A,V,Z)202104-202411

NEUTRAL BEIGE,TRIM4#

58511MAT, FLOOR, FRONT

main58511-60A00iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

main58511-60A01iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-05164-C7iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

BLACK

sub90467-05164

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-E2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

GREGE

sub90467-05164

58521BHOOK, FLOOR CARPET

main58521-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23iFJA300,VJA300..5S..(A,G,V)202104-202411

BLACK,TRIM2#

sub90467-07049

main90467-07049-23iFJA300,VJA300..5S..(A,G,V)202104-202411

BLACK,TRIM2#,3#

sub90467-07049

main90467-07049-L6iFJA300,GRJ300,VJA300..7S..(A,G,V,Z)202104-202411

NEUTRAL BEIGE,TRIM4#

sub90467-07049

58556CSILENCER, REAR FLOOR

main58556-60120iFJA300,GRJ300,VJA300..A,G202104-202411

main58556-60140iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

58556FCLIP, REAR FLOOR SILENCER

main90467-05164-C7iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

BLACK

sub90467-05164

58694APLATE, MAT SET, UPPER

main58694-78010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

58698BPLATE, MAT SET, LOWER

main58698-78010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

10 parts on this diagram · 2 diagrams in section
