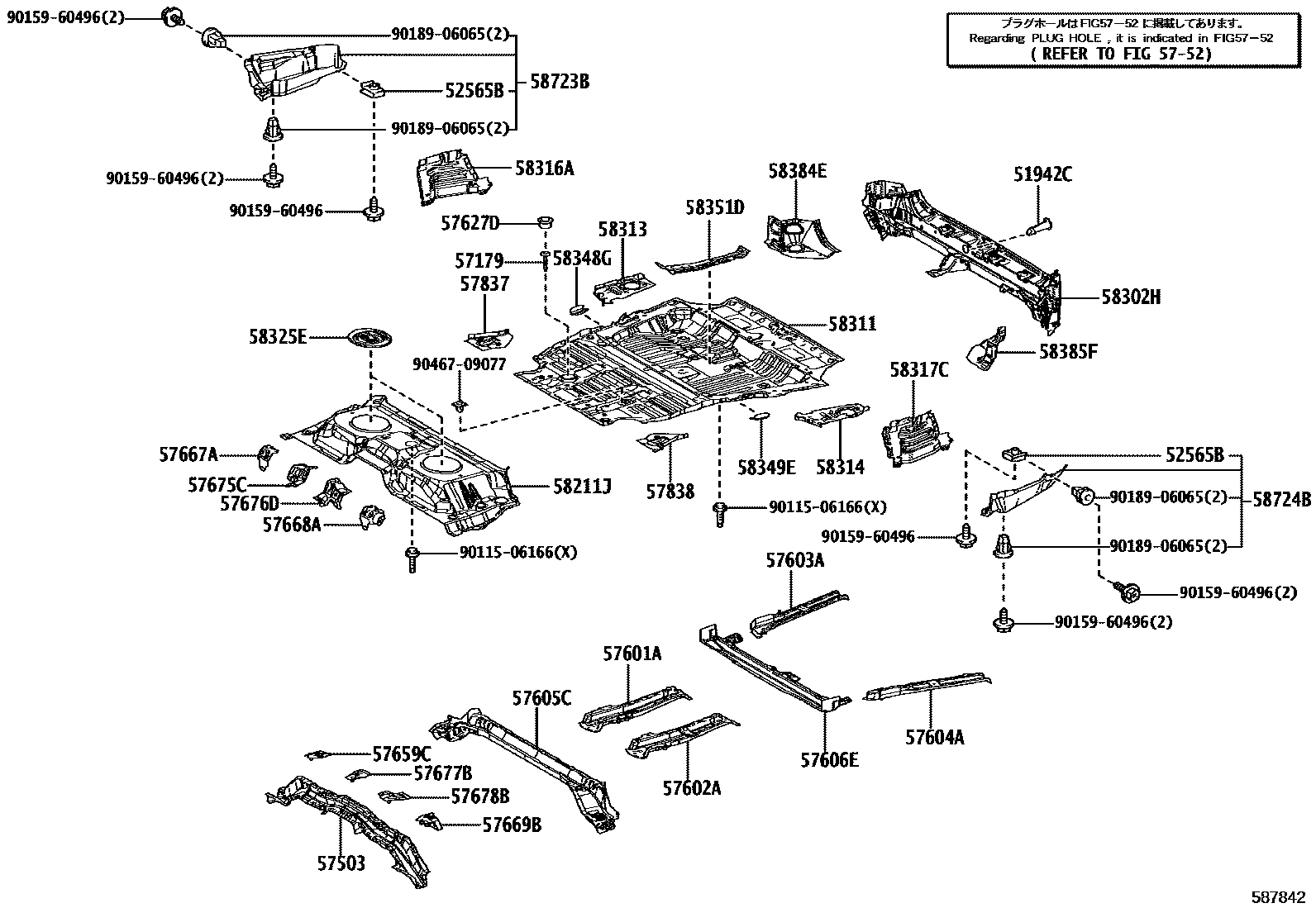

REAR FLOOR PANEL & REAR FLOOR MEMBER

51942CGUIDE, SPARE WHEEL CRANK HANDLE

main51942-60070iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

52565BRETAINER, REAR BUMPER, LOWER

main52526-53020×2iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

57179BOLT, FLOOR CROSSMEMBER

main57179-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

57503BRACE SUB-ASSY, CENTER FLOOR CROSSMEMBER

main57503-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

5752

57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-60230iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

main57601-60290iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-60170iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

main57602-60210iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-60290iFJA300,GRJ300,VJA300202104-202403

main57603-60291iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202404-202411

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-60150iFJA300,GRJ300,VJA300202104-202403

main57604-60151iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202404-202411

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-60310iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-60290iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

57627DCOVER, REAR FLOOR SIDE MEMBER

main57627-60010iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

57659CMEMBER, REAR FLOOR CROSS, NO.8

main57659-60070iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

57667AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.4

main57667-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

57668AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.5

main57668-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

57669BMEMBER, REAR FLOOR CROSS, NO.9

main57669-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

57675CREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.1 RH

main57675-60090iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

57676DREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.1 LH

main57676-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

57677BREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.6 RH

main57677-60020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

57678BREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.6 LH

main57678-60020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

57837REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3

main57837-60040iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

57838REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4

main57838-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

58211JPAN, CENTER FLOOR

main58211-60130iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

main58211-60140iFJA300..5S..(A,G);FJA300..(A,G)..GEN;VJA300..A..(EUR,GEN);FJA300,GRJ300..7S..G..GCC202411

main58211-60150supersedes 58211-60140iFJA300..A..ARL202211-202411

58302HPANEL SUB-ASSY, LOWER BACK

main58302-60620iFJA300,GRJ300,VJA300202104-202404

main58302-60621iFJA300,GRJ300,VJA300202405-202407

sub90333-20001

main58302-60622iGRJ300,VJA300;FJA300..ARL,GCC,GEN;FJA300..(A,S,V,Z)..EUR202408

58311PAN, REAR FLOOR

main58311-60E10iFJA300..A..ARL;VJA300..7S..(V,Z);VJA300..S..(GCC,GEN);FJA300,GRJ300..7S..(S,V,Z)202411

main58311-60E20iFJA300..5S..S..GEN;FJA300,VJA300..5S..(S,V,Z)..(ARL,EUR)202104-202411

main58311-60E30supersedes 58311-60E40iVJA300..(A,G)..GCC;FJA300,GRJ300..A..GCC202104-202411

SUN VISOR-WITH(MIRROR & BULB LAMP & SLIDE )

main58311-60E40iFJA300,GRJ300..7S..G..GCC;FJA300,VJA300..(A,G)..GEN202104-202411

main58311-60E60iFJA300,VJA300..5S..(A,G)202104-202411

main58311-60E50iFJA300,VJA300..A..EUR202104-202411

AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)

58313PANEL, REAR FLOOR SIDE, RH

main58313-60260iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

58314PANEL, REAR FLOOR SIDE, LH

main58314-60150iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH

main58316-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH

main58317-60070iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-60070×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

58348GPLATE, REAR FLOOR SIDE, RH

main58349-60020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

58349EPLATE, REAR FLOOR SIDE, LH

main58349-60020iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

58351DREINFORCEMENT, REAR FLOOR PANEL

main57642-60020iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

58384EGUSSET, LOWER BACK PANEL, NO.1 RH

main58384-60140iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

58385FGUSSET, LOWER BACK PANEL, NO.1 LH

main58385-60150iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

58723BPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1

main58723-60090iVJA300..7S..S..EUR202104

main58723-60100iVJA300..Z;FJA300..7S..Z;FJA300..Z..(ARL,EUR)202104-202411

REAR BUMPER-AERO(PLATING)

58724BPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2

main58724-60100iVJA300..A,G,V;VJA300..5S..S;VJA300..S..(GCC,GEN);FJA300,GRJ300..A,G,S,V202104-202411

main58724-60110iVJA300..Z;FJA300..7S..Z;FJA300..Z..(ARL,EUR)202411

REAR BUMPER-AERO(PLATING,PINTLE HOOK),W/O(REAR STEP)

9011506166

main90115-06166

9015960496

main90159-60496

9018906065

main90189-06065

9046709077

main90467-09077

41 parts on this diagram · 1 diagram in section
