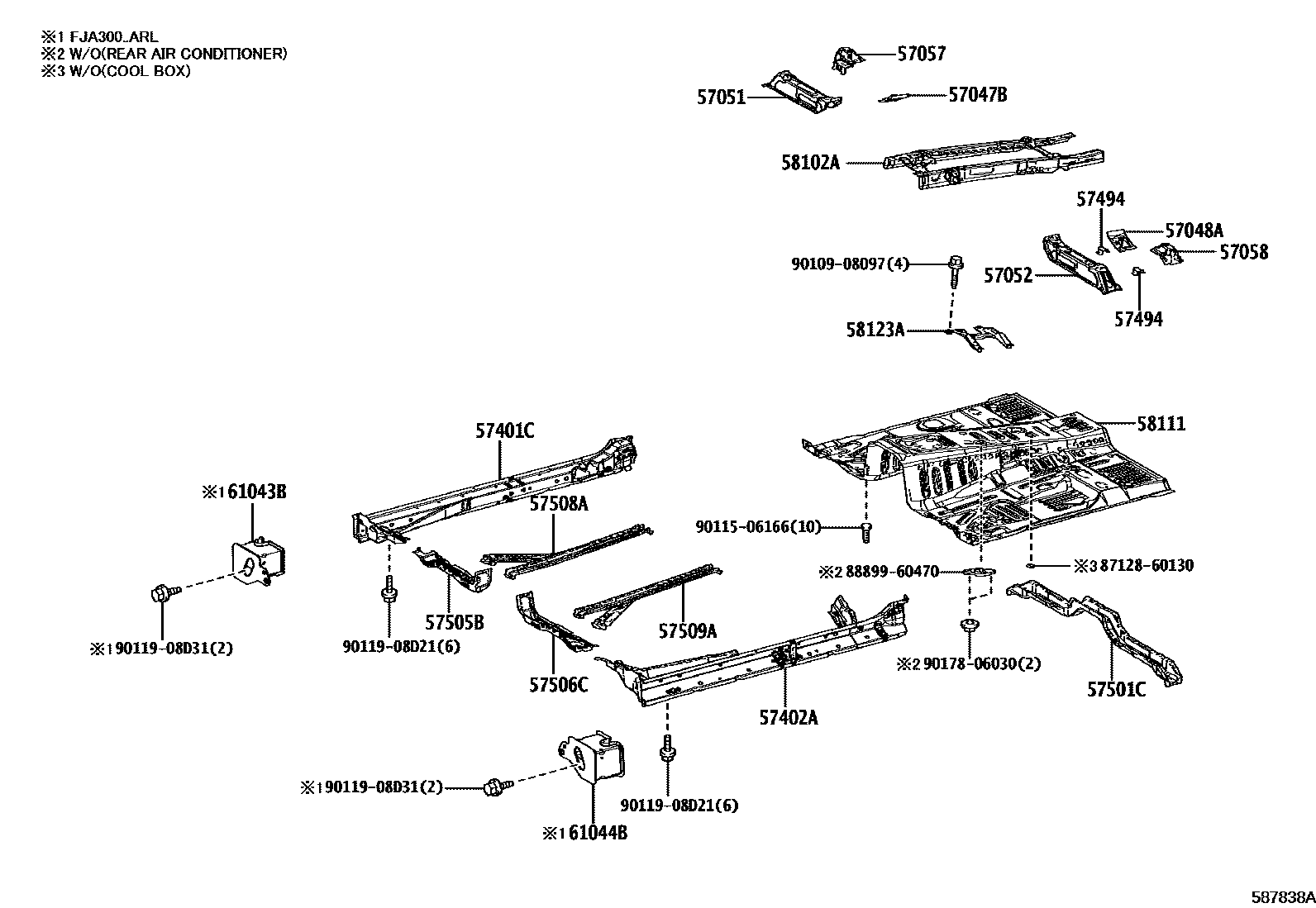

FRONT FLOOR PANEL & FRONT FLOOR MEMBER
57047BBRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, RH
main57047-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
57048ABRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, LH
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
main57051-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
main57052-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
57057REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.7 RH
main57057-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
57058REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.7 LH
main57058-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
main57401-60140iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
main57402-60150iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
57494BRACE, FRONT FLOOR CROSS, NO.2 LH
main57494-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER
main57501-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
57505BREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, RH
main57505-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
57506CREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, LH
main57506-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
main57508-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
main57509-60140iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
sub57509-60180
main57509-60180iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
main58102-60120iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
sub58102-60140
main58102-60140iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
58111PAN, FRONT FLOOR
main58111-60G10iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
sub58111-60G11
sub90950-01A49
EXTINGUISHER-WITHOUT
INDIA SPEC
main58111-60G31iGRJ300;VJA300..5S..S;VJA300..LHD..(V,Z);FJA300..5S..(S,V,Z)..EUR;FJA300..LHD..7S..(A,S,V,Z);VJA300..LHD..(A,S)..(GCC,GEN)202411
EXTINGUISHER-WITH(ACCESSORY)
58123ASUPPORT, SHIFT & SELECT LEVER
main58123-60111iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202305-202411
8712860130GROMMET, HEATER
main87128-60130
8889960470COVER, EVAPORATOR
main88899-60470
9010908097
main90109-08097
9011506166
main90115-06166
9011908D21
main90119-08D21
9011908D31
main90119-08D31
9017806030
main90178-06030
26 parts on this diagram · 4 diagrams in section
