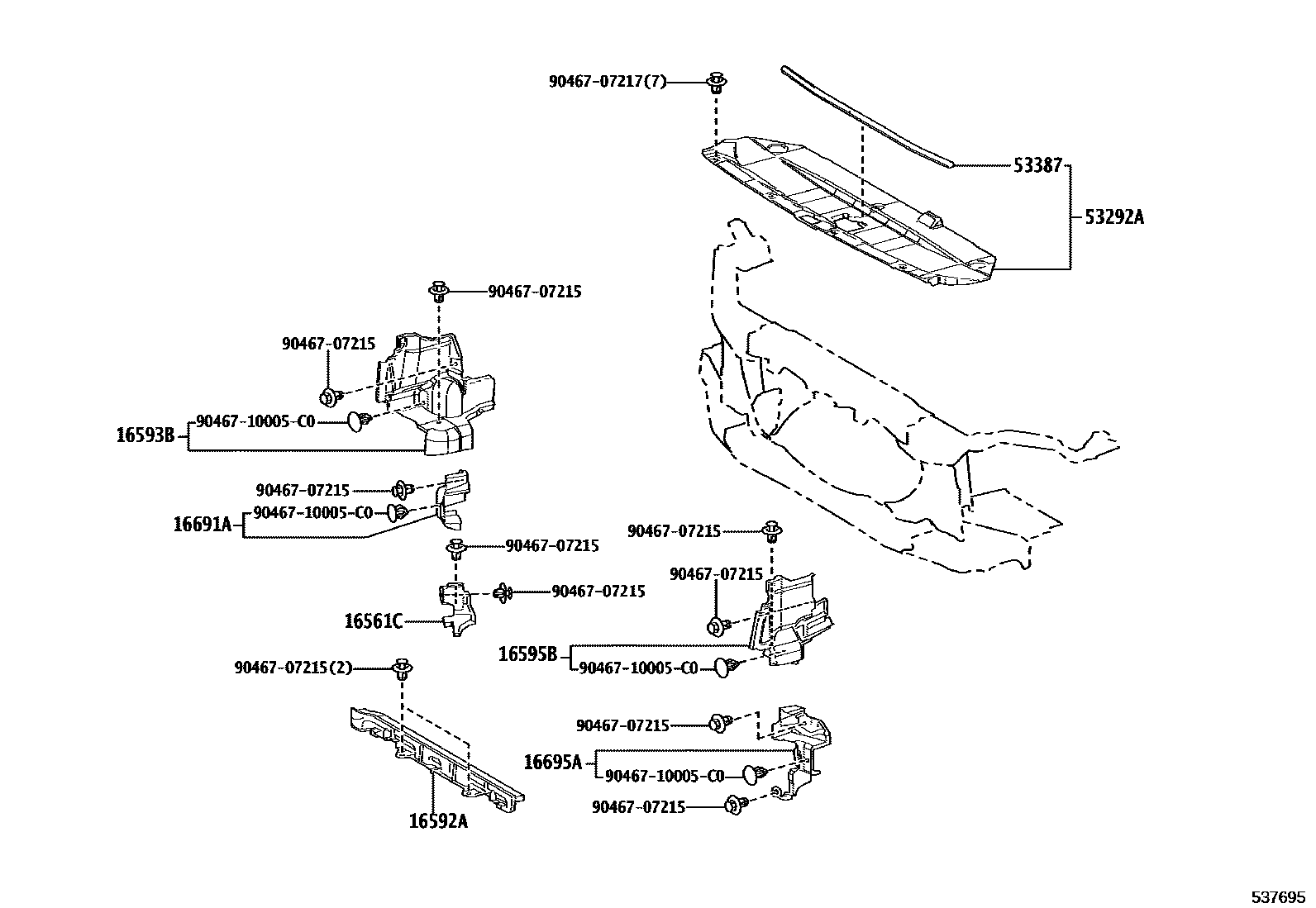

FRONT FENDER APRON & DASH PANEL

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1AIRGUIDE & RADIATOR SUPPORT C0003 1RADIATOR SUPPORT & FENDER APR0004 1RADIATOR SUPPORT & FENDER APR0005 1RADIATOR SUPPORT & FENDER APR0006 1DASH PANEL 0007 1DASH PANEL 0008 1DASH PANEL

16561CSEAL, RADIATOR TO SUPPORT, NO.1

main16561-70020iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;F33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC;V35AFTS..VJA300..S..(GCC,GEN)202104-202411

16592AGUIDE, RADIATOR AIR, NO.3

main16592-70011iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;F33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;V35AFTS..VJA300..S..(GCC,GEN);F33AFTV,1GRFE..FJA300,GRJ300..ARL202104-202411

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-31050i1GRFE..GRJ300202104-202411

main16593-70020iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;F33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC;V35AFTS..VJA300..S..(GCC,GEN)202104-202411

main16593-70060iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;F33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC;V35AFTS..VJA300..S..(GCC,GEN)202411

main16593-31090i1GRFE..GRJ300..A202411

FRONT BUMPER-ZX,VX(ACCESSORY)

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-31040i1GRFE..GRJ300202104-202411

main16595-70030iF33AFTV..FJA300..5S..Z..GEN;V35AFTS..VJA300..7S..S..EUR202104

main16595-31080i1GRFE..GRJ300..A202411

FRONT BUMPER-ZX,VX(ACCESSORY)

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-70010iF33AFTV..FJA300..5S..Z..GEN;V35AFTS..VJA300..7S..S..EUR202104

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-70010iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;F33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC;V35AFTS..VJA300..S..(GCC,GEN)202411

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-60210iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

53387SEAL, HOOD TO RADIATOR SUPPORT

main53381-60170iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

9046707215

main90467-07215

9046707217

main90467-07217

9046710005C0

main90467-10005C0

11 parts on this diagram · 8 diagrams in section
