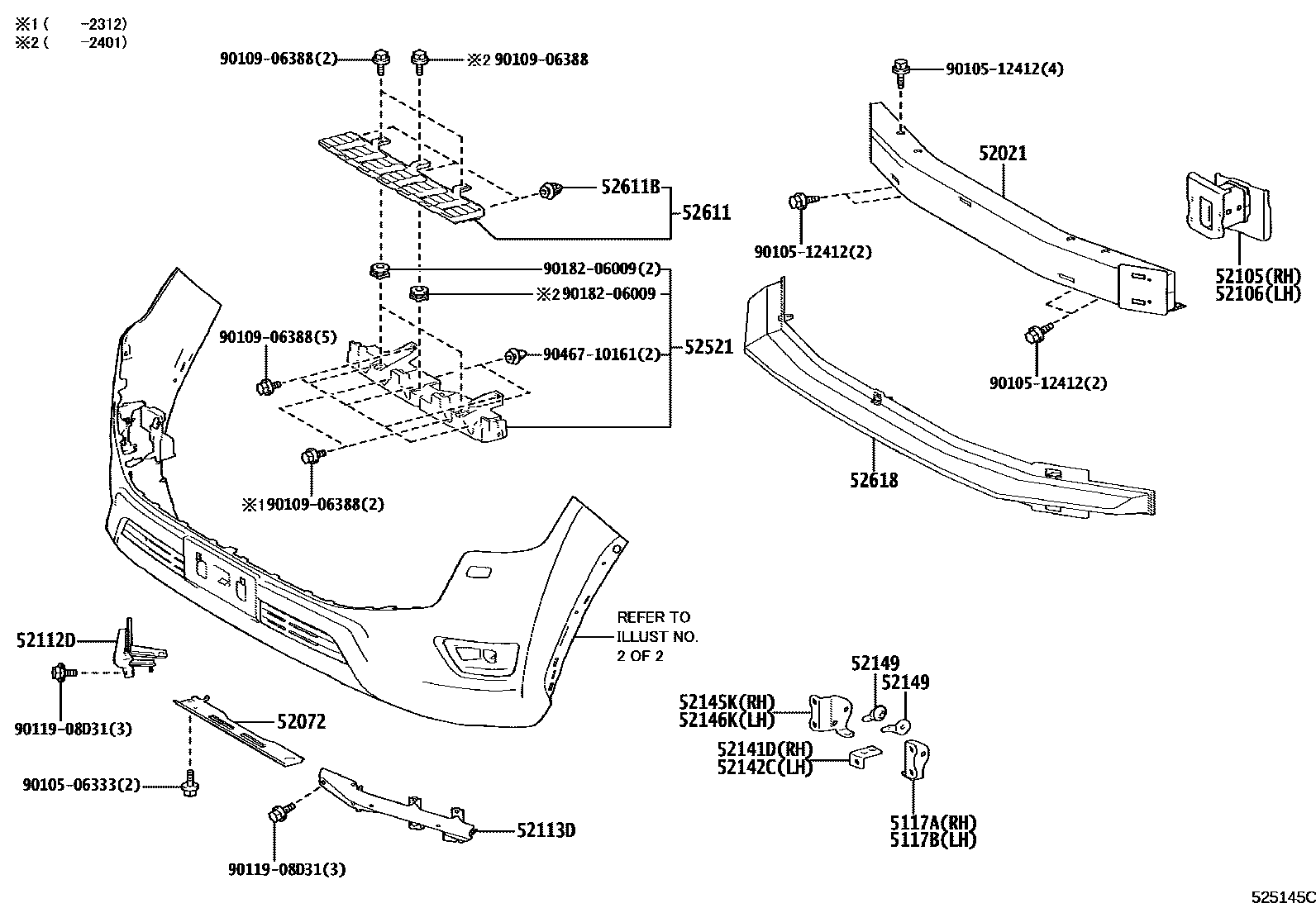

FRONT BUMPER & BUMPER STAY

0001 1 0002 1AERO BUMPER 0003 1 0004 1 0005 1AERO BUMPER 0006 1

5117AREINFORCEMENT, EXTENSION WINCH SUPPORT, RH

main5117A-60020

5117BREINFORCEMENT, EXTENSION WINCH SUPPORT, LH

main5117B-60020

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-60280iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥23,800202411

ELECTRICAL WINCH-WITH

main52021-60280iGRJ300,VJA300;FJA300..ARL,GCC,GEN;FJA300..(A,S,V,Z)..EUR¥23,800202104

52072RETAINER SUB-ASSY, FRONT BUMPER, LOWER

main52072-60010

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52081-60020

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52082-60020

52112DEXTENSION, FRONT BUMPER, RH

52113DEXTENSION, FRONT BUMPER, LH

52141DSTAY, FRONT BUMPER, RH

52142CSTAY, FRONT BUMPER, LH

52145KGUSSET, WINCH SUPPORT, RH

52146KGUSSET, WINCH SUPPORT, LH

52149BRACKET, FRONT BUMPER, INNER

main52149-WY010¥1,090

main52149-WY020¥1,090

main52149-60140

main52149-60150¥1,360

main52149-60160¥1,360

main52149-60170¥1,280

main52149-60180¥1,280

main52149-60190¥1,150

main52149-60200¥1,150

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-60220iFJA300,GRJ300,VJA300¥5,100202104-202312

sub52521-60221¥4,620

main52521-60221iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥4,620202401-202411

52611ABSORBER, FRONT BUMPER ENERGY

main52611-60160iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥5,300202411

ELECTRICAL WINCH-WITH

main52611-60160iGRJ300,VJA300;FJA300..ARL,GCC,GEN;FJA300..(A,S,V,Z)..EUR¥5,300202104

52611BCLIP, FRONT BUMPER ENERGY ABSORBER

main90467-09232iGRJ300,VJA300;FJA300..ARL,GCC,GEN;FJA300..(A,S,V,Z)..EUR¥70202104

main90467-09232iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥70202411

ELECTRICAL WINCH-WITH

52618ABSORBER, FRONT BUMPER, LOWER

main52618-60020iGRJ300..A,G¥8,600202104-202411

ELECTRICAL WINCH-WITH

main52618-60030iVJA300..Z;FJA300..7S..Z;FJA300..Z..(ARL,EUR)¥8,000202411

UPGRADE PACKAGE(AERO)

main52618-60030iVJA300..Z;FJA300..7S..Z;FJA300..Z..(ARL,EUR)¥8,000202411

FRONT BUMPER-AERO(BLACK)

main52618-60030iVJA300..Z;FJA300..7S..Z;FJA300..Z..(ARL,EUR)¥8,000202411

FRONT BUMPER-AERO(PLATING), FOR RUSSIA SPEC

main52618-60030iVJA300..Z;FJA300..7S..Z;FJA300..Z..(ARL,EUR)¥8,000202411

FRONT BUMPER-ZX,VX(ACCESSORY)

main52618-60030iFJA300..A..GCC;FJA300..5S..GCC;VJA300..(A,G)..GCC¥8,000202411

SAUDI ARABIA SPEC

main52618-60030iFJA300..A..GCC;FJA300..5S..GCC;VJA300..(A,G)..GCC¥8,000202411

FRONT BUMPER-AERO(PLATING)

main52618-60030iFJA300,VJA300..Z¥8,000202104

main52618-60060iFJA300,VJA300..S¥8,600202107

9010506333

main90105-06333¥60

9010512412

main90105-12412¥160

9010906388

main90109-06388¥70

9011908D31

main90119-08D31¥80

9018206009

main90182-06009¥100

9046710161

main90467-10161¥90

23 parts on this diagram · 6 diagrams in section
