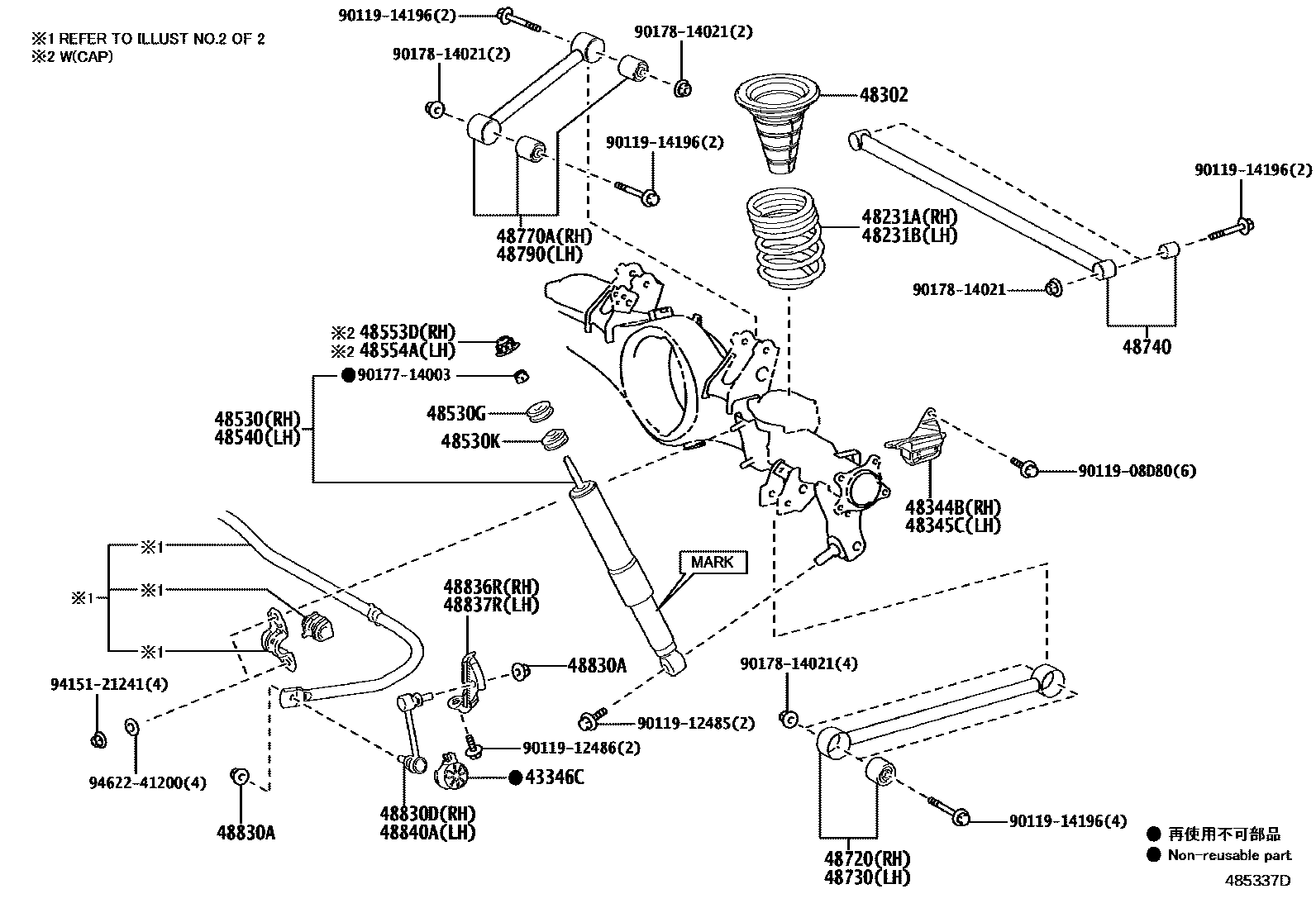

REAR SPRING & SHOCK ABSORBER
43346CPROTECTOR, LOWER BALL JOINT DUST COVER
main43346-60030iGRJ300,VJA300..A,G,V,Z;FJA300..7S..(A,G,V,Z)..GEN;FJA300..(A,G,V,Z)..(ARL,EUR,GCC)202104-202411
48231ASPRING, COIL, REAR RH
EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(OBD), WITH(EGR)&FUEL TANK-DIESEL(SINGLE TANK)
EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR)&FUEL TANK-DIESEL(SINGLE TANK)
FUEL TANK-DIESEL(SINGLE TANK)
ELECTRICAL WINCH-WITH
FUEL TANK-GASOLINE(SINGLE TANK)
main48231-60K00iFJA300..(A,Z)..ARL;FJA300..LHD..A..GEN;FJA300..LHD..5S..(V,Z);FJA300..RHD..(A,V)..GEN202104-202108
FUEL TANK-GASOLINE(SINGLE TANK)
FUEL TANK-DIESEL(SINGLE TANK)
main48231-60K01iFJA300..Z..EUR;VJA300..RHD..V;FJA300..LHD..A..GEN;VJA300..5S..(S,V,Z);FJA300..(A,S,Z)..ARL;FJA300..LHD..5S..(S,V);FJA300..RHD..(A,V)..GEN202411
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
main48231-60K01iFJA300..Z..EUR;VJA300..RHD..V;FJA300..LHD..A..GEN;VJA300..5S..(S,V,Z);FJA300..(A,S,Z)..ARL;FJA300..LHD..5S..(S,V);FJA300..RHD..(A,V)..GEN202411
EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&FUEL TANK-DIESEL(SINGLE TANK)
main48231-60K01iFJA300..Z..EUR;VJA300..RHD..V;FJA300..LHD..A..GEN;VJA300..5S..(S,V,Z);FJA300..(A,S,Z)..ARL;FJA300..LHD..5S..(S,V);FJA300..RHD..(A,V)..GEN202108-202411
FUEL TANK-GASOLINE(SINGLE TANK)
EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&FUEL TANK-DIESEL(SINGLE TANK)
FUEL TANK-DIESEL(DUAL TANK)
INDIA SPEC
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)&FUEL TANK-DIESEL(DUAL TANK)
main48231-60K10iFJA300..V..ARL;FJA300..RHD..Z..GEN;VJA300..7S..(V,Z)..(EUR,GEN);FJA300..LHD..7S..(V,Z)..(EUR,GEN)202104-202411
EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680
ELECTRICAL WINCH-WITH
AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)
FUEL TANK-DIESEL(SINGLE TANK)
FUEL TANK-DIESEL(DUAL TANK)
FUEL TANK-DIESEL(SINGLE TANK)
48231BSPRING, COIL, REAR LH
EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR)&FUEL TANK-DIESEL(SINGLE TANK)
INDIA SPEC
EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(OBD), WITH(EGR)&FUEL TANK-DIESEL(SINGLE TANK)
FUEL TANK-DIESEL(SINGLE TANK)
EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&FUEL TANK-DIESEL(SINGLE TANK)
EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&FUEL TANK-DIESEL(SINGLE TANK)&SUSPENSION-E-KDSS
FUEL TANK-DIESEL(SINGLE TANK)
FUEL TANK-DIESEL(SINGLE TANK)&SUSPENSION-E-KDSS
FUEL TANK-GASOLINE(SINGLE TANK)
SUSPENSION-E-KDSS
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
FUEL TANK-DIESEL(SINGLE TANK)
main48231-60K01iVJA300..RHD..(S,V);FJA300..RHD..7S..(A,S,Z);FJA300,VJA300..LHD..7S..(A,S)..GEN;FJA300,VJA300..5S..(V,Z)..(ARL,EUR)202411
INDIA SPEC
main48231-60K01iVJA300..RHD..(S,V);FJA300..RHD..7S..(A,S,Z);FJA300,VJA300..LHD..7S..(A,S)..GEN;FJA300,VJA300..5S..(V,Z)..(ARL,EUR)202411
EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&FUEL TANK-DIESEL(SINGLE TANK)
FUEL TANK-DIESEL(DUAL TANK)
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)&FUEL TANK-DIESEL(DUAL TANK)
main48231-60K10iFJA300..V..ARL;VJA300..7S..(V,Z)..(EUR,GEN);FJA300..LHD..7S..(V,Z)..(EUR,GEN)202104-202411
FUEL TANK-DIESEL(SINGLE TANK)
ELECTRICAL WINCH-WITH
AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)
FUEL TANK-DIESEL(SINGLE TANK)
AZER, GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680
FUEL TANK-DIESEL(SINGLE TANK)
FUEL TANK-DIESEL(DUAL TANK)
48302SPRING SUB-ASSY, HOLLOW
main48302-60120iVJA300..5S..S;VJA300..S..GEN;FJA300..7S..Z..GEN;FJA300..Z..(ARL,EUR);VJA300..(A,V,Z)..(EUR,GEN);FJA300..(A,G,S,V)..(ARL,EUR,GEN)202104-202411
48344BSTOPPER, BUMPER, REAR RH
main48344-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48345CSTOPPER, BUMPER, REAR LH
main48345-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-60480
main48530-80A87iVJA300..5S..(S,Z);FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202104-202411
MARK 48530-60540,UKRAINE SPEC&SUSPENSION-E-KDSS
main48530-80A87iVJA300..5S..(S,Z);FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202104-202411
MARK 48530-60540
main48530-80A87iVJA300..5S..(S,Z);FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202104-202411
MARK 48530-60540,SUSPENSION-E-KDSS
MARK 48530-60700
main48530-80C00iVJA300..5S..(S,Z);FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202411
MARK 48530-60700,SUSPENSION-E-KDSS
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
main48505-60071iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202401-202411
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-60480
main48540-69005iVJA300..5S..(S,Z);FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202104-202411
MARK 48540-60010,UKRAINE SPEC&SUSPENSION-E-KDSS
main48540-69005iVJA300..5S..(S,Z);FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202104-202411
MARK 48540-60010
main48540-69005iVJA300..5S..(S,Z);FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202104-202411
MARK 48540-60010,SUSPENSION-E-KDSS
MARK 48540-60060,SUSPENSION-E-KDSS
MARK 48540-60060
48553DCAP, REAR SHOCK ABSORBER, RH
KAZAKHSTAN SPEC
ARMENIA SPEC
AZERBAIJAN, GEORGEA SPEC
UZBEKISTAN SPEC
KYRGYZ SPEC
TAJIKISTAN, TURKMENISTAN SPEC
48554ACAP, REAR SHOCK ABSORBER, LH
KAZAKHSTAN SPEC
ARMENIA SPEC
AZERBAIJAN, GEORGEA SPEC
UZBEKISTAN SPEC
KYRGYZ SPEC
TAJIKISTAN, TURKMENISTAN SPEC
48720ARM ASSY, LOWER CONTROL, RH
main48720-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
main48740-60170iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48770AARM ASSY, UPPER CONTROL, REAR RH
main48710-60180iVJA300..V,Z;VJA300..5S..S;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300,GRJ300..(S,V,Z)..(ARL,EUR,GCC)202104-202411
48790ARM ASSY, UPPER CONTROL, REAR LH
48830ANUT(FOR REAR STABILIZER LINK)
main94151-21241iGRJ300,VJA300..A,G,V,Z;FJA300..7S..(A,G,V,Z)..GEN;FJA300..(A,G,V,Z)..(ARL,EUR,GCC)202104-202411
SUSPENSION-E-KDSS
48830DLINK ASSY, REAR STABILIZER, RH
48836RBRACKET, REAR STABILIZER END, RH
SUSPENSION-E-KDSS
main48836-60150iGRJ300,VJA300..A,G,V,Z;FJA300..7S..(A,G,V,Z)..GEN;FJA300..(A,G,V,Z)..(ARL,EUR,GCC)202104-202411
48837RBRACKET, REAR STABILIZER END, LH
main48837-60090iGRJ300,VJA300..A,G,V,Z;FJA300..7S..(A,G,V,Z)..GEN;FJA300..(A,G,V,Z)..(ARL,EUR,GCC)202104-202411
48840ALINK ASSY, REAR STABILIZER, LH
main48840-60010iGRJ300,VJA300..A,G,V,Z;FJA300..7S..(A,G,V,Z)..GEN;FJA300..(A,G,V,Z)..(ARL,EUR,GCC)202104-202411
9011908D80
main90119-08D80
9011912485
main90119-12485
9011912486
main90119-12486
9011914196
main90119-14196
9017714003
main90177-14003
9017814021
main90178-14021
9415121241
main94151-21241
9462241200
main94622-41200
30 parts on this diagram · 10 diagrams in section
