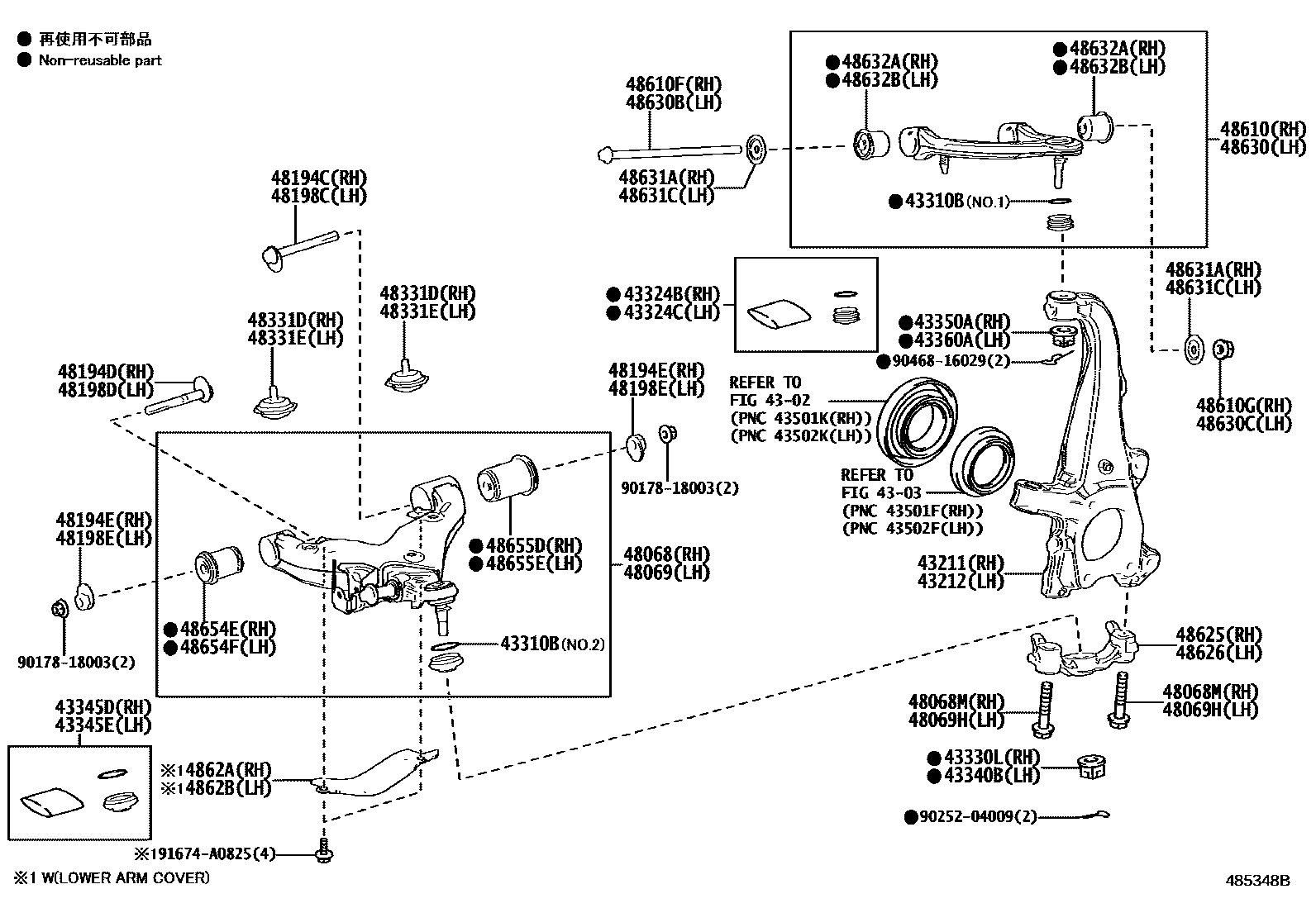

FRONT AXLE ARM & STEERING KNUCKLE
4302
4303
43211KNUCKLE, STEERING, RH
main43201-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
43212KNUCKLE, STEERING, LH
main43202-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
43310BRING, SET (FOR DUST COVER)
main90522-48025iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
NO.2:REFER ILLUST.
main90580-10001iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
NO.1:REFER ILLUST.
43324BCOVER, FRONT UPPER BALL JOINT DUST, RH
main43324-69105iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
43324CCOVER, FRONT UPPER BALL JOINT DUST, LH
main43324-69105iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
main90171-18004iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
main90171-18004iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
43345DCOVER, LOWER BALL JOINT DUST, RH
main43345-09015iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
43345ECOVER, LOWER BALL JOINT DUST, LH
main43345-09015iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
43350ANUT (FOR FRONT UPPER BALL JOINT RH)
main90171-14014iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
43360ANUT (FOR FRONT UPPER BALL JOINT LH)
main90171-14014iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
main48068-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
main90105-18013iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
main48069-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
main90105-18013iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH
main48190-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH
main48190-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48194ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH
main48198-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH
main48190-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH
main48190-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48198ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH
main48198-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48331DBUMPER, FRONT SPRING, NO.1 RH
main48304-60170iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48331EBUMPER, FRONT SPRING, NO.1 LH
main48304-60170iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48610ARM ASSY, FRONT SUSPENSION UPPER, RH
main48610-60090iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)
main90105-16099iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)
main94151-21601iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48625ATTACHMENT, FRONT LOWER BALL JOINT, RH
main48625-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48626ATTACHMENT, FRONT LOWER BALL JOINT, LH
main48626-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
4862ACOVER, LOWER ARM, RH
main4862A-60010
4862BCOVER, LOWER ARM, LH
main4862B-60010
48630ARM ASSY, FRONT SUSPENSION, UPPER LH
main48630-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)
main90105-16099iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)
main94151-21601iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)
main90948-02194iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)
main90948-02194iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48632ABUSH, FRONT SUSPENSION UPPER ARM, RH
main48632-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48632BBUSH, FRONT SUSPENSION UPPER ARM, LH
main48632-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48654EBUSH, FRONT LOWER ARM, NO.1 RH
main48654-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48654FBUSH, FRONT LOWER ARM, NO.1 LH
main48654-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48655DBUSH, FRONT LOWER ARM, NO.2 RH
main48655-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
48655EBUSH, FRONT LOWER ARM, NO.2 LH
main48655-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
9017818003
main90178-18003
9025204009
main90252-04009
9046816029
main90468-16029
91674A0825
main91674-A0825
47 parts on this diagram · 1 diagram in section
