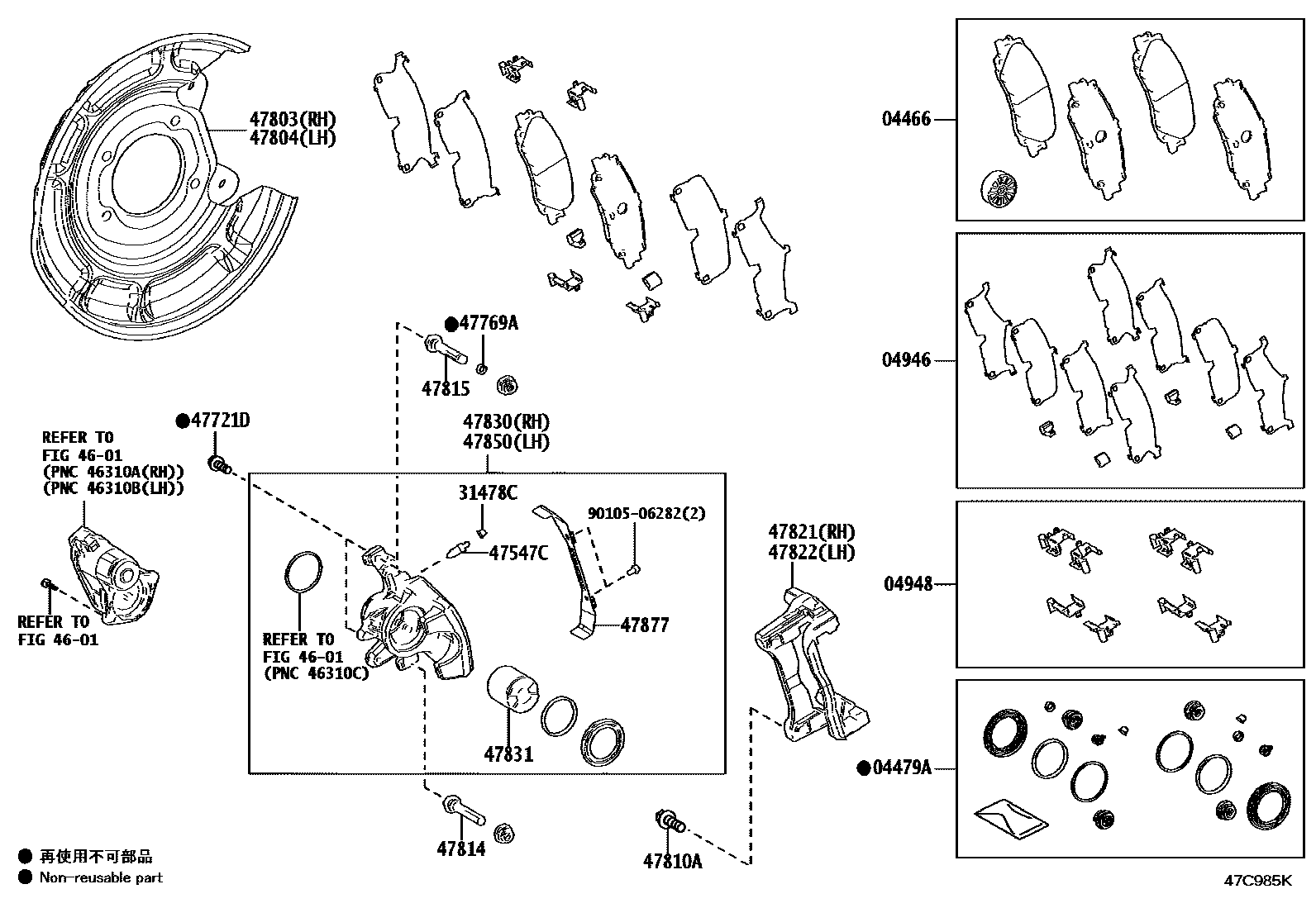

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-60190iFJA300,GRJ300,VJA300¥8,000202104-202210

MARK ADVICS VC107

sub04466-60191¥8,000

main04466-60191iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥8,000202210-202411

MARK ADVICS VC107

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-60280iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥2,130202104-202411

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-60150iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥1,780202104-202411

04948FITTING KIT, DISC BRAKE, REAR

main04948-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥1,390202104-202411

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥160202104-202411

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥180202104-202411

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA606iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥270202104-202411

*10-1.00PX20-9

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-0E070iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-60010iGRJ300,VJA300¥16,600202104-202108

sub47803-60011¥17,500

main47803-60011iFJA300,GRJ300,VJA300¥17,500202108-202208

sub47803-60012¥15,900

main47803-60012iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥15,900202209-202411

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-60010iGRJ300,VJA300¥16,600202104-202108

sub47804-60011¥17,500

main47804-60011iFJA300,GRJ300,VJA300¥17,500202108-202208

sub47804-60012¥15,900

main47804-60012iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥15,900202209-202411

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-14169iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-60130iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥510202104-202411

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-60130iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥510202104-202411

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-60130iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥5,200202104-202411

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-60120iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥5,200202104-202411

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-60130iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥26,100202104-202411

47831PISTON, REAR DISC BRAKE

main47831-60130iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥1,180202104-202411

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-60120iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥26,100202104-202411

47877PROTECTOR, REAR DISC BRAKE DUST BOOT

main47877-60130iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥320202104-202411

9010506282

main90105-06282¥110

21 parts on this diagram · 1 diagram in section
