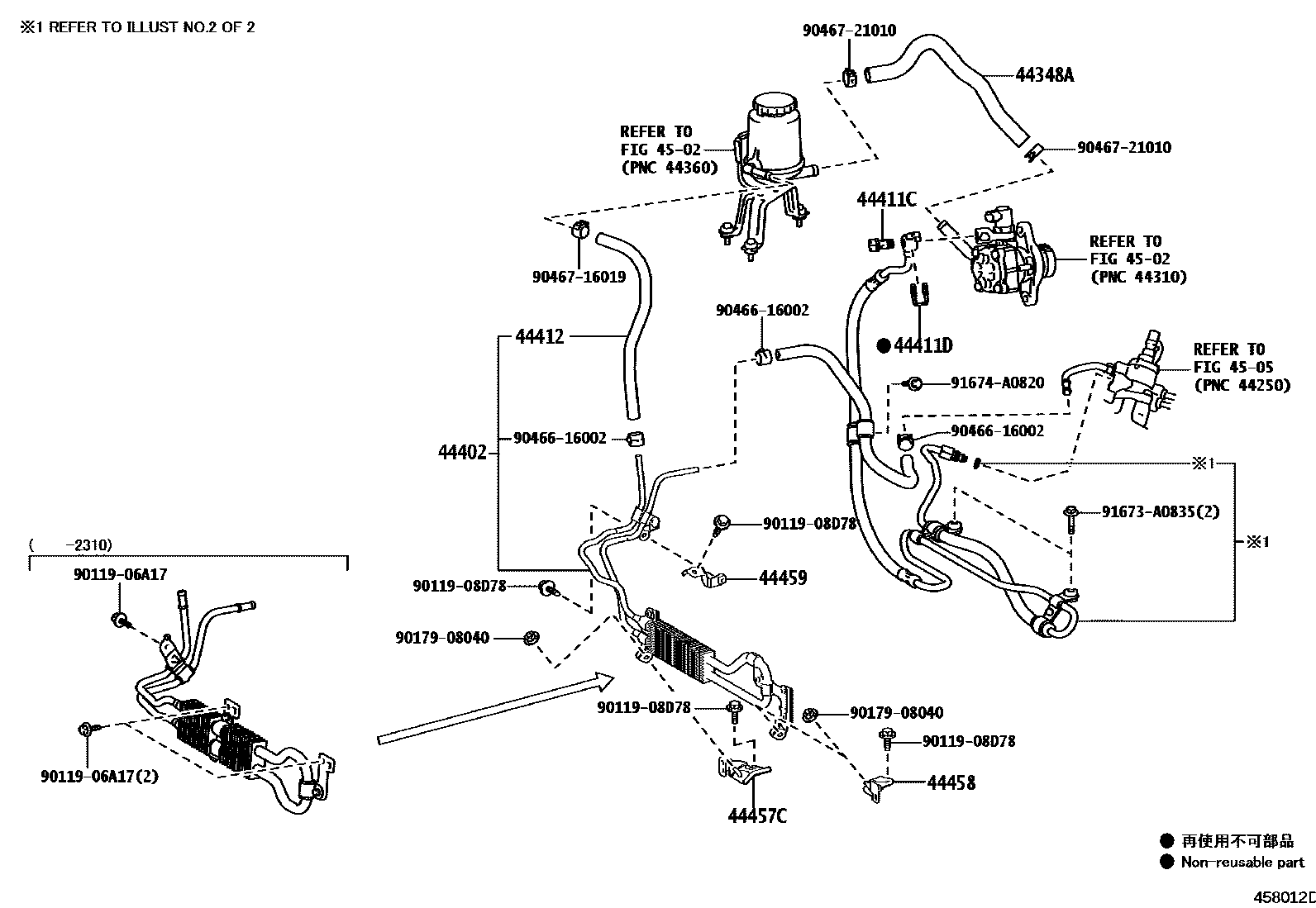

POWER STEERING TUBE

0001 1 0002 1 0003 1W(RELIEF VALVE) 0004 1W/O(RELIEF VALVE) 0005 1 0006 1W(RELIEF VALVE) 0007 1W/O(RELIEF VALVE) 0008 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-60500iFJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC202107

main44348-60510iVJA300202104

main44348-60520iGRJ300202104-202411

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-60060iFJA300202107-202310

main44402-60070iVJA300202104-202310

main44402-60080iGRJ300202104-202310

main44402-60120iFJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC202310

main44402-60130iVJA300202310

main44402-60140iGRJ300202310-202411

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16034iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104

44411DGASKET(FOR PRESSURE FEED HOSE)

main44327-30040iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104

44412HOSE, RETURN

main44412-60490iFJA300..ARL,GCC,GEN;FJA300..(A,S,V,Z)..EUR202107

main44412-60500iVJA300202104

main44412-60510iGRJ300202104-202310

main44412-60560iGRJ300202310-202411

44457CBRACKET, POWER STEERING TUBE SUPPORT, NO.1

main44458-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202310

44458BRACKET, TUBE SUPPORT, NO.2

main44458-60040iGRJ300,VJA300;FJA300..ARL,GCC,GEN;FJA300..(A,S,V,Z)..EUR202310

44459BRACKET, TUBE SUPPORT, NO.3

main44459-60040iFJA300..7S..GEN;FJA300..5S..S..GEN;FJA300,GRJ300..ARL,EUR,GCC202310

main44459-60050iVJA300..5S..S;VJA300..A,G,V,Z;VJA300..S..(GCC,GEN)202310

4502

4505

9011906A17

main90119-06A17

9011908D78

main90119-08D78

9017908040

main90179-08040

9046616002

main90466-16002

9046716019

main90467-16019

9046721010

main90467-21010

91673A0835

main91673-A0835

91674A0820

main91674-A0820

18 parts on this diagram · 8 diagrams in section
