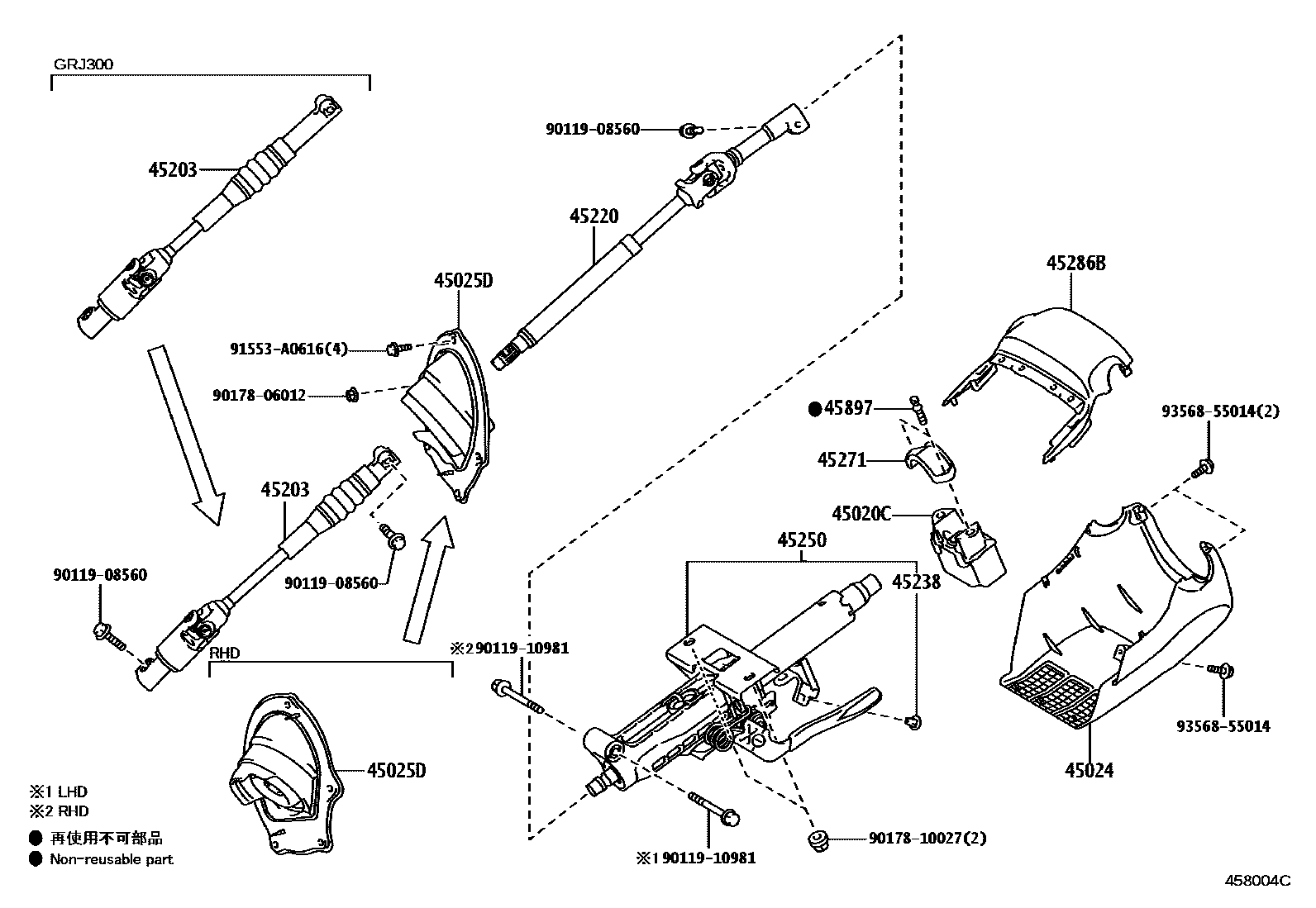

STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
main45020-48120iFJA300..5S..S..GEN;FJA300..7S..(S,V,Z)..GEN;FJA300..(S,V,Z)..(ARL,GCC);VJA300..(S,V,Z)..(GCC,GEN)202104-202411
STEERING COLUMN-ELECTRIC TILT & TELESCOPIC
STEERING COLUMN-ELECTRIC TILT&TELESCOPIC,WITH(PROTECTOR)
NEW ZEALAND SPEC&STEERING COLUMN-TILT & TELESCOPIC&LANE KEEPING SYSTEM- LDA & VIB(ALERT ONLY)
INDIA SPEC&STEERING COLUMN-TILT & TELESCOPIC&LANE KEEPING SYSTEM- LDA & VIB(ALERTONLY)
45024COVER SUB-ASSY, STEERING COLUMN, LOWER
BLACK,TRIM2#,4#
NEW ZEALAND SPEC,BLACK,TRIM2#,4#
INDIA SPEC,BLACK,TRIM2#,4#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,4#
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
main45203-60290iVJA300..5S..S;FJA300..Z..EUR;FJA300..LHD..7S;VJA300..LHD..(A,G,V,Z);VJA300..LHD..S..(GCC,GEN);FJA300..LHD..5S..(A,G,S,V)202104-202411
45220SHAFT ASSY, STEERING INTERMEDIATE
INDIA SPEC&STEERING COLUMN-TILT & TELESCOPIC&LANE KEEPING SYSTEM- LDA & VIB(ALERTONLY)
NEW ZEALAND SPEC&STEERING COLUMN-TILT & TELESCOPIC&LANE KEEPING SYSTEM- LDA & VIB(ALERT ONLY)
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
main45238-11010iVJA300..V,Z;VJA300..5S..S;FJA300..(A,G)..ARL;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300..(S,V,Z)..(ARL,EUR,GCC)202411
NEW ZEALAND SPEC&STEERING COLUMN-TILT & TELESCOPIC&LANE KEEPING SYSTEM- LDA & VIB(ALERT ONLY)
main45238-11010iVJA300..V,Z;VJA300..5S..S;FJA300..(A,G)..ARL;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300..(S,V,Z)..(ARL,EUR,GCC)202411
INDIA SPEC&STEERING COLUMN-TILT & TELESCOPIC&LANE KEEPING SYSTEM- LDA & VIB(ALERTONLY)
NEW ZEALAND SPEC&STEERING COLUMN-TILT & TELESCOPIC&LANE KEEPING SYSTEM- LDA & VIB(ALERT ONLY)
INDIA SPEC&STEERING COLUMN-TILT & TELESCOPIC&LANE KEEPING SYSTEM- LDA & VIB(ALERTONLY)
45250COLUMN ASSY, STEERING
INDIA SPEC&STEERING COLUMN-TILT & TELESCOPIC&LANE KEEPING SYSTEM- LDA & VIB(ALERTONLY)
NEW ZEALAND SPEC&STEERING COLUMN-TILT & TELESCOPIC&LANE KEEPING SYSTEM- LDA & VIB(ALERT ONLY)
45271CLAMP, STEERING COLUMN, UPPER
NEW ZEALAND SPEC&STEERING COLUMN-TILT & TELESCOPIC&LANE KEEPING SYSTEM- LDA & VIB(ALERT ONLY)
INDIA SPEC&STEERING COLUMN-TILT & TELESCOPIC&LANE KEEPING SYSTEM- LDA & VIB(ALERTONLY)
45286BCOVER, STEERING COLUMN, UPR
NEW ZEALAND SPEC,BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
INDIA SPEC,BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,3#
45897BOLT, STEERING LOCK SET
main45897-12020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
9011908560
main90119-08560
9011910981
main90119-10981
9017806012
main90178-06012
9017810027
main90178-10027
91553A0616
main91553-A0616
9356855014
main93568-55014
16 parts on this diagram · 3 diagrams in section
