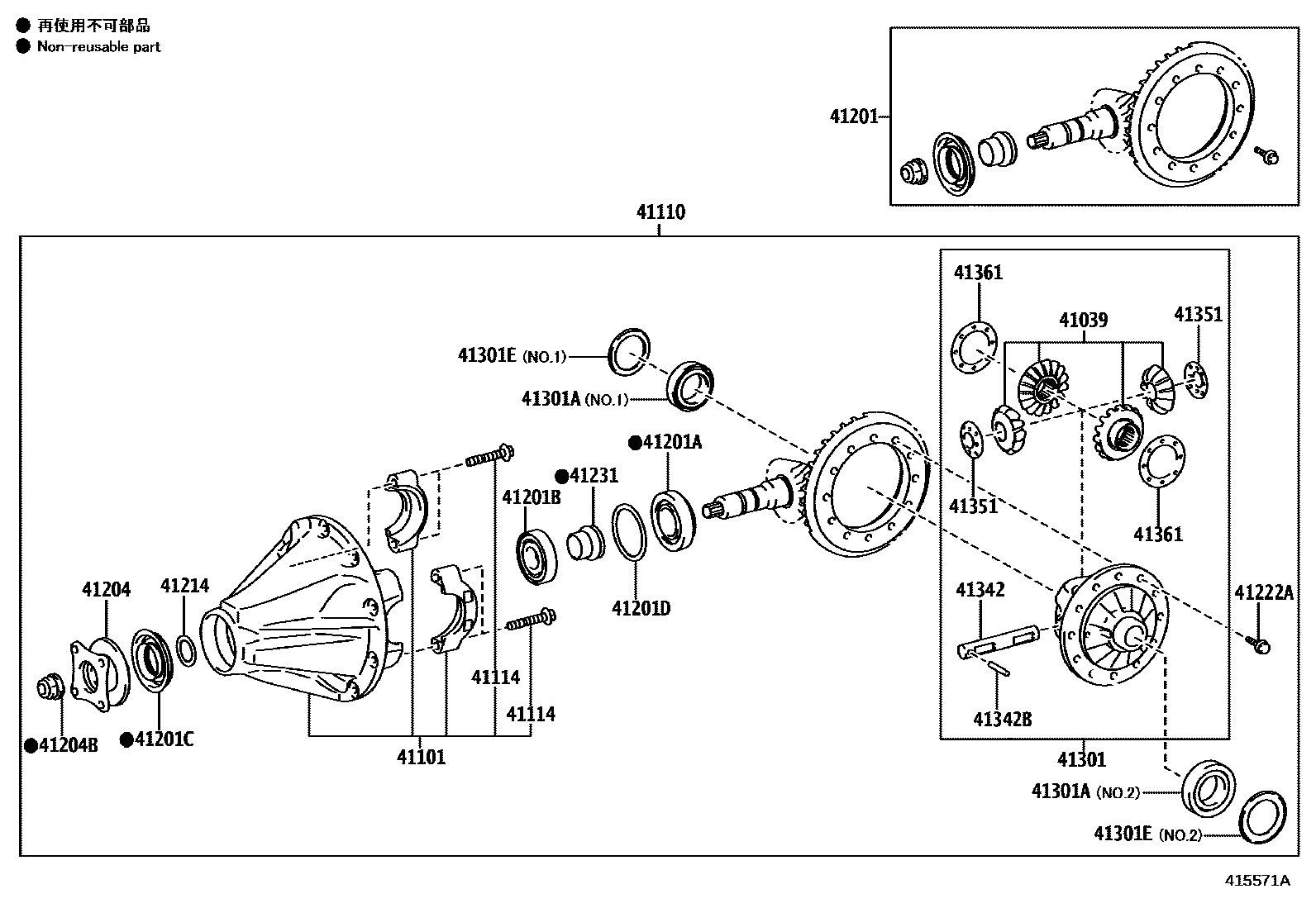

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1W(LSD) 0003 1W(ELECTRONIC DIFFERENTIAL LOC0004 1

41039GEAR KIT, DIFFERENTIAL, REAR

main41039-34100iGRJ300;FJA300..5S..V;FJA300..(A,V)..GCC;FJA300..A..(EUR,GEN);VJA300..(A,V)..(EUR,GCC)202411-202510

DIFFERENTIAL LOCK-WITHOUT

main41039-34100iFJA300,GRJ300,VJA300..A,G,V202104-202411

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-60220iGRJ300;FJA300..5S..V;FJA300..(A,V)..GCC;FJA300..A..(EUR,GEN);VJA300..(A,V)..(EUR,GCC)¥35,000202411-202510

DIFFERENTIAL LOCK-WITHOUT

main41101-60220iFJA300..7S..Z;FJA300..7S..EUR;FJA300..(A,Z)..ARL;VJA300..(A,V,Z)..GEN;FJA300..(G,V)..(ARL,GEN);VJA300..(G,Z)..(EUR,GCC);FJA300..5S..(G,Z)..(EUR,GCC)¥35,000202104-202411

main41101-60230iVJA300..7S..S..EUR¥35,000202107-202411

main41101-60230iFJA300..S;VJA300..5S..S;FJA300..7S..G..GCC;VJA300..S..(GCC,GEN)¥35,000202411

DIFFERENTIAL LOCK-WITH(REAR)

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-60C70iFJA300..7S..G..GCC¥132,000202104-202510

*FGR=43:13=3.307

main41110-60C70iFJA300..7S..G..GCC¥132,000202411-202510

*FGR=43:13=3.307,DIFFERENTIAL LOCK-WITHOUT

main41110-60D10iGRJ300¥132,000202104-202510

*FGR=43:10=4.300

main41110-60D20iVJA300..Z;FJA300..7S..Z;FJA300..Z..(ARL,EUR)¥215,000202104-202411

*FGR=43:13=3.307

main41110-60D70iFJA300..V..GEN;VJA300..LHD..V..GEN¥186,000202107-202411

*FGR=43:13=3.307

main41110-60D70iFJA300..V..GEN;VJA300..LHD..V..GEN¥186,000202411

*FGR=43:13=3.307,DIFFERENTIAL LOCK-WITH(REAR)

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main41114-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥280202104-202411

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-80903iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)¥51,200202104-202411

*FGR=43:13=3.307

main41201-80904iGRJ300¥51,200202104-202411

*FGR=43:10=4.300

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-45068iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥2,760202104-202411

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90363-35084iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥2,370202104-202411

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-46011iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥840202104-202411

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90564-76019iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥190202104-202411

T=1.72

main90564-76020iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥190202104-202411

T=1.74

main90564-76021iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥190202104-202411

T=1.76

main90564-76022iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥190202104-202411

T=1.78

main90564-76023iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥190202104-202411

T=1.80

main90564-76024iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥190202104-202411

T=1.82

main90564-76025iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥190202104-202411

T=1.84

main90564-76026iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥190202104-202411

T=1.86

main90564-76027iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥190202104-202411

T=1.88

main90564-76028iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥190202104-202411

T=1.90

main90564-76029iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥190202104-202411

T=1.92

main90564-76030iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥190202104-202411

T=1.94

main90564-76031iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥190202104-202411

T=1.96

main90564-76032iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥190202104-202411

T=1.98

main90564-76033iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥190202104-202411

T=2.00

main90564-76034iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥190202104-202411

T=2.02

main90564-76035iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥190202104-202411

T=2.04

main90564-76036iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥190202104-202411

T=2.06

main90564-76037iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥190202104-202411

T=2.08

main90564-76038iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.10

main90564-76039iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥240202104-202411

T=2.12

main90564-76040iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥240202104-202411

T=2.14

main90564-76041iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.16

main90564-76042iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.18

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-60110iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥3,640202104-202411

41204BNUT (FOR REAR DRIVE PINION)

main90179-22029iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥260202104-202411

OD=43

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-60030iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥180202104-202411

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90105-12365iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥120202104-202411

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-60070iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥780202104-202411

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-60220iFJA300,VJA300..A,G,V¥35,000202104-202411

main41301-60220iFJA300..7S..G..GCC¥35,000202411-202510

DIFFERENTIAL LOCK-WITHOUT

main41301-60230iGRJ300¥35,000202104-202510

main41301-60240iVJA300..Z;FJA300..7S..Z;FJA300..Z..(ARL,EUR)¥214,000202104-202411

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50185iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥2,850202104-202411

NO.2:REFER ILLUST.

main90366-50188iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥2,200202104-202411

NO.1:REFER ILLUST.

41301ESHIM(FOR DIFFERENTIAL CASE)

main90564-59183iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.08,NO.2:REFER ILLUST.

main90564-59184iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.10,NO.2:REFER ILLUST.

main90564-59185iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.12,NO.2:REFER ILLUST.

main90564-59186iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.14,NO.2:REFER ILLUST.

main90564-59187iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.16,NO.2:REFER ILLUST.

main90564-59188iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥240202104-202411

T=2.18,NO.2:REFER ILLUST.

main90564-59189iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.20,NO.2:REFER ILLUST.

main90564-59190iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.22,NO.2:REFER ILLUST.

main90564-59191iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.24,NO.2:REFER ILLUST.

main90564-59192iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥310202104-202411

T=2.26,NO.2:REFER ILLUST.

main90564-59193iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥310202104-202411

T=2.28,NO.2:REFER ILLUST.

main90564-59194iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥310202104-202411

T=2.30,NO.2:REFER ILLUST.

main90564-59195iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥310202104-202411

T=2.32,NO.2:REFER ILLUST.

main90564-59196iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥310202104-202411

T=2.34,NO.2:REFER ILLUST.

main90564-59197iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥310202104-202411

T=2.36,NO.2:REFER ILLUST.

main90564-59198iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥310202104-202411

T=2.38,NO.2:REFER ILLUST.

main90564-59199iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥310202104-202411

T=2.40,NO.2:REFER ILLUST.

main90564-59200iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥310202104-202411

T=2.42,NO.2:REFER ILLUST.

main90564-59201iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥310202104-202411

T=2.44,NO.2:REFER ILLUST.

main90564-59202iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥310202104-202411

T=2.46,NO.2:REFER ILLUST.

main90564-59203iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥310202104-202411

T=2.48,NO.2:REFER ILLUST.

main90564-59204iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥310202104-202411

T=2.50,NO.2:REFER ILLUST.

main90564-59205iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥310202104-202411

T=2.52,NO.2:REFER ILLUST.

main90564-59206iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥310202104-202411

T=2.54,NO.2:REFER ILLUST.

main90564-59207iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥310202104-202411

T=2.56,NO.2:REFER ILLUST.

main90564-59208iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥310202104-202411

T=2.58,NO.2:REFER ILLUST.

main90564-59209iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥310202104-202411

T=2.60,NO.2:REFER ILLUST.

main90564-59210iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥310202104-202411

T=2.62,NO.2:REFER ILLUST.

main90564-59211iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥310202104-202411

T=2.64,NO.2:REFER ILLUST.

main90564-59212iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥310202104-202411

T=2.66,NO.2:REFER ILLUST.

main90564-59213iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥310202104-202411

T=2.68,NO.2:REFER ILLUST.

main90564-59214iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥190202104-202411

T=2.06,NO.1:REFER ILLUST.

main90564-59215iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥190202104-202411

T=2.08,NO.1:REFER ILLUST.

main90564-59216iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥190202104-202411

T=2.10,NO.1:REFER ILLUST.

main90564-59217iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥190202104-202411

T=2.12,NO.1:REFER ILLUST.

main90564-59218iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥190202104-202411

T=2.14,NO.1:REFER ILLUST.

main90564-59219iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥190202104-202411

T=2.16,NO.1:REFER ILLUST.

main90564-59220iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥190202104-202411

T=2.18,NO.1:REFER ILLUST.

main90564-59221iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.20,NO.1:REFER ILLUST.

main90564-59222iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥240202104-202411

T=2.22,NO.1:REFER ILLUST.

main90564-59223iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥240202104-202411

T=2.24,NO.1:REFER ILLUST.

main90564-59224iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.26,NO.1:REFER ILLUST.

main90564-59225iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.28,NO.1:REFER ILLUST.

main90564-59226iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥240202104-202411

T=2.30,NO.1:REFER ILLUST.

main90564-59227iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥240202104-202411

T=2.32,NO.1:REFER ILLUST.

main90564-59228iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.34,NO.1:REFER ILLUST.

main90564-59229iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥240202104-202411

T=2.36,NO.1:REFER ILLUST.

main90564-59230iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.38,NO.1:REFER ILLUST.

main90564-59231iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥240202104-202411

T=2.40,NO.1:REFER ILLUST.

main90564-59232iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.42,NO.1:REFER ILLUST.

main90564-59233iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥240202104-202411

T=2.44,NO.1:REFER ILLUST.

main90564-59234iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.46,NO.1:REFER ILLUST.

main90564-59235iFJA300..5S..Z..GEN;VJA300..7S..S..EUR¥240202104-202411

T=2.48,NO.1:REFER ILLUST.

main90564-59236iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.50,NO.1:REFER ILLUST.

main90564-59237iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.52,NO.1:REFER ILLUST.

main90564-59238iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.54,NO.1:REFER ILLUST.

main90564-59239iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.56,NO.1:REFER ILLUST.

main90564-59240iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.58,NO.1:REFER ILLUST.

main90564-59241iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.60,NO.1:REFER ILLUST.

main90564-59242iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.62,NO.1:REFER ILLUST.

main90564-59243iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.64,NO.1:REFER ILLUST.

main90564-59244iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.66,NO.1:REFER ILLUST.

main90564-59245iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC¥240202104-202411

T=2.68,NO.1:REFER ILLUST.

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-60050iGRJ300;FJA300..5S..V;FJA300..(A,V)..GCC;FJA300..A..(EUR,GEN);VJA300..(A,V)..(EUR,GCC)¥2,260202411-202510

DIFFERENTIAL LOCK-WITHOUT

main41342-60050iVJA300..G;FJA300..A..ARL;FJA300..7S..EUR;VJA300..(A,V)..GEN;FJA300..LHD..5S..G;FJA300..(G,V)..(ARL,GEN)¥2,260202104-202411

41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)

main90250-06085iGRJ300;FJA300..5S..V;FJA300..(A,V)..GCC;FJA300..A..(EUR,GEN);VJA300..(A,V)..(EUR,GCC)¥110202411-202510

DIFFERENTIAL LOCK-WITHOUT

main90250-06085iVJA300..G;FJA300..A..ARL;FJA300..7S..EUR;VJA300..(A,V)..GEN;FJA300..LHD..5S..G;FJA300..(G,V)..(ARL,GEN)¥110202104-202411

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-34040iGRJ300;FJA300..5S..V;FJA300..(A,V)..GCC;FJA300..A..(EUR,GEN);VJA300..(A,V)..(EUR,GCC)¥230202411-202510

DIFFERENTIAL LOCK-WITHOUT

main41351-34040iVJA300..G;FJA300..A..ARL;FJA300..7S..EUR;VJA300..(A,V)..GEN;FJA300..LHD..5S..G;FJA300..(G,V)..(ARL,GEN)¥230202104-202411

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-60K00iGRJ300;FJA300..5S..V;FJA300..(A,V)..GCC;FJA300..A..(EUR,GEN);VJA300..(A,V)..(EUR,GCC)¥440202411-202510

T=1.55,DIFFERENTIAL LOCK-WITHOUT

main41361-60K00iGRJ300;FJA300..5S..V;FJA300..(A,V)..GCC;FJA300..A..(EUR,GEN);VJA300..(A,V)..(EUR,GCC)¥440202104-202510

T=1.55

main41361-60K10iFJA300..7S..G..GCC¥450202104-202510

T=1.60

main41361-60K10iFJA300..7S..G..GCC¥450202411-202510

T=1.60,DIFFERENTIAL LOCK-WITHOUT

main41361-60K20iGRJ300;FJA300..5S..V;FJA300..(A,V)..GCC;FJA300..A..(EUR,GEN);VJA300..(A,V)..(EUR,GCC)¥460202411-202510

T=1.65,DIFFERENTIAL LOCK-WITHOUT

main41361-60K20iGRJ300;FJA300..5S..V;FJA300..(A,V)..GCC;FJA300..A..(EUR,GEN);VJA300..(A,V)..(EUR,GCC)¥460202104-202510

T=1.65

main41361-60K30iVJA300..G;FJA300..A..ARL;FJA300..7S..EUR;VJA300..(A,V)..GEN;FJA300..LHD..5S..G;FJA300..(G,V)..(ARL,GEN)¥460202104-202510

T=1.70

main41361-60K30iGRJ300;FJA300..5S..V;FJA300..(A,V)..GCC;FJA300..A..(EUR,GEN);VJA300..(A,V)..(EUR,GCC)¥460202411-202510

T=1.70,DIFFERENTIAL LOCK-WITHOUT

main41361-60K40iFJA300,GRJ300,VJA300..A,G,V¥460202104-202510

T=1.75

main41361-60K40iFJA300..7S..G..GCC¥460202411-202510

T=1.75,DIFFERENTIAL LOCK-WITHOUT

main41361-60K50iFJA300..7S..G..GCC¥460202411-202510

T=1.80,DIFFERENTIAL LOCK-WITHOUT

main41361-60K50iGRJ300;FJA300..5S..V;FJA300..(A,V)..GCC;FJA300..A..(EUR,GEN);VJA300..(A,V)..(EUR,GCC)¥460202104-202510

T=1.80

main41361-60K60iVJA300..G;FJA300..A..ARL;FJA300..7S..EUR;VJA300..(A,V)..GEN;FJA300..LHD..5S..G;FJA300..(G,V)..(ARL,GEN)¥460202104-202510

T=1.85

main41361-60K60iFJA300..7S..G..GCC¥460202411-202510

T=1.85,DIFFERENTIAL LOCK-WITHOUT

main41361-60K70iGRJ300;FJA300..5S..V;FJA300..(A,V)..GCC;FJA300..A..(EUR,GEN);VJA300..(A,V)..(EUR,GCC)¥460202104-202510

T=1.90

main41361-60K70iGRJ300;FJA300..5S..V;FJA300..(A,V)..GCC;FJA300..A..(EUR,GEN);VJA300..(A,V)..(EUR,GCC)¥460202411-202510

T=1.90,DIFFERENTIAL LOCK-WITHOUT

main41361-60K80iFJA300..7S..G..GCC¥460202411-202510

T=1.95,DIFFERENTIAL LOCK-WITHOUT

main41361-60K80iVJA300..G;FJA300..A..ARL;FJA300..7S..EUR;VJA300..(A,V)..GEN;FJA300..LHD..5S..G;FJA300..(G,V)..(ARL,GEN)¥460202104-202510

T=1.95

21 parts on this diagram · 4 diagrams in section
