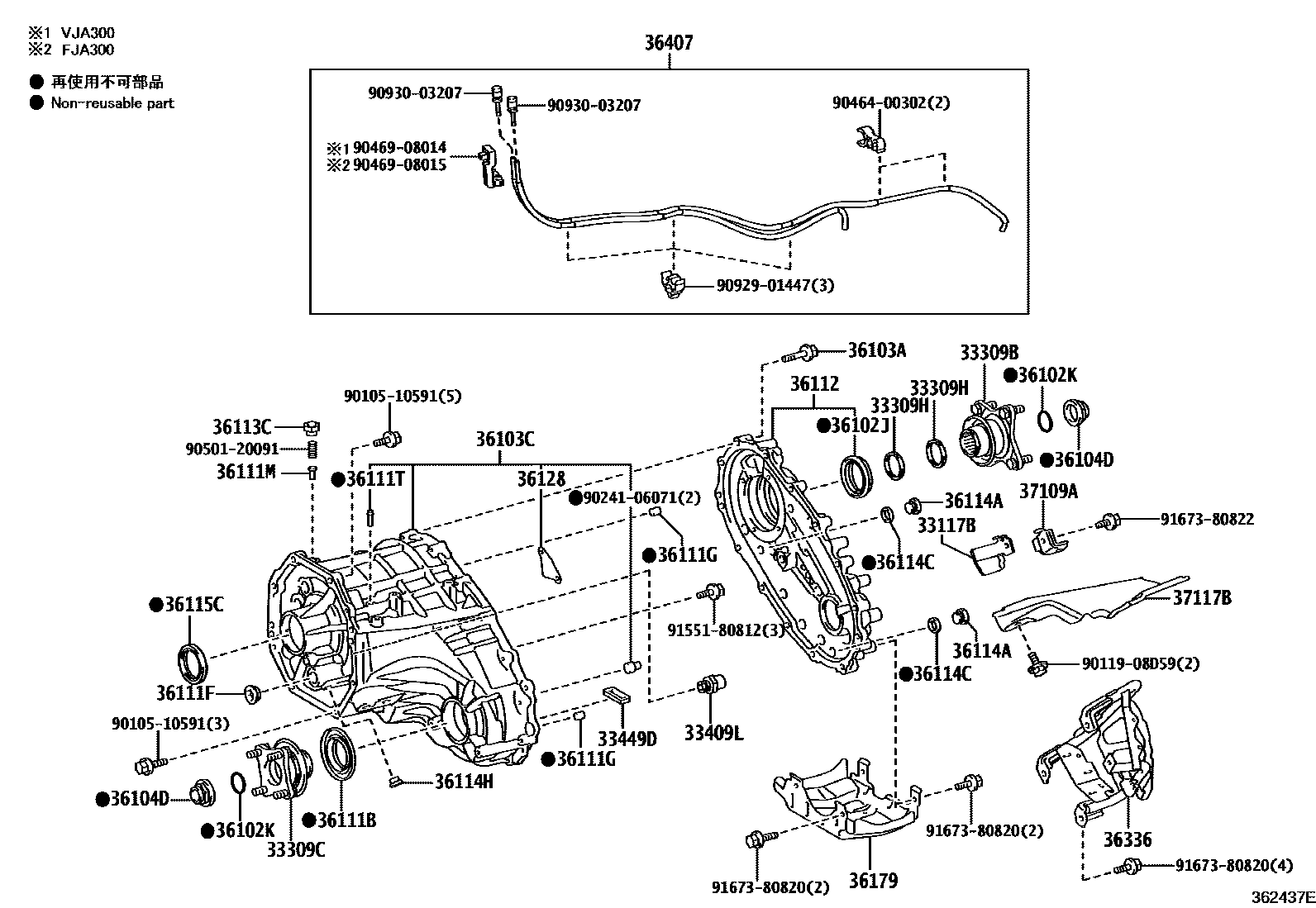

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1

33117BPROTECTOR, TRANSFER CASE

main36179-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-60160iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-60170iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-34010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

T=0.8

33409LVALVE SUB-ASSY, TRANSFER OIL PUMP RELIEF

main33409-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

33449DMAGNET (FOR TRANSFER CASE)

main33449-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-50065iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

36102KRING, O

main90301-31003iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

36103ABOLT (FOR TRANSFER CASE)

main91551-00845iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

*8-1.25PX45-22

36103CCASE, TRANSFER, FRONT

main36103-60440iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-24011iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-50066iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

36111FPLUG (FOR TRANSFER CASE)

main90341-24006iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

L=14,OD=10

36111MPIN, SLOTTED SPRING (FOR TRANSFER CASE)

main90241-07003iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

36111TTUBE (FOR TRANSFER CASE)

main90441-05001iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

sub90406-T0007

36112CASE, TRANSFER, REAR

main36104-60070iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

36113CPLUG (FOR TRANSFER CASE)

main90341-14012iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

36114APLUG, TIGHT(FOR TRANSFER CASE)

main90341-18060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90341-12004iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-51009iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

36128DEFLECTOR, BREATHER OIL

main36128-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

36179PROTECTOR, TRANSFER CASE LOWER

main36179-60040iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

36336INSULATOR, TRANSFER HEAT

main36336-60050iFJA300,GRJ300,VJA300202104-202411

main36336-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

36407HOSE SUB-ASSY, TRANSFER BREATHER

main36407-60390iVJA300..7S..S..EUR202104-202411

main36407-60400iFJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC202107-202411

main36407-60411iGRJ300202104-202411

37109ABRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR

main37109-60050iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

37117BINSULATOR, PROPELLER SHAFT HEAT

main37117-60090iFJA300,GRJ300,VJA300202104-202411

main37117-60100iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

9010510591

main90105-10591

9011908D59

main90119-08D59

9024106071

main90241-06071

9046400302

main90464-00302

9046908014

main90469-08014

9046908015

main90469-08015

9050120091

main90501-20091

9092901447

main90929-01447

9093003207

main90930-03207

9155180812

main91551-80812

9167380820

main91673-80820

9167380822

main91673-80822

40 parts on this diagram · 2 diagrams in section
