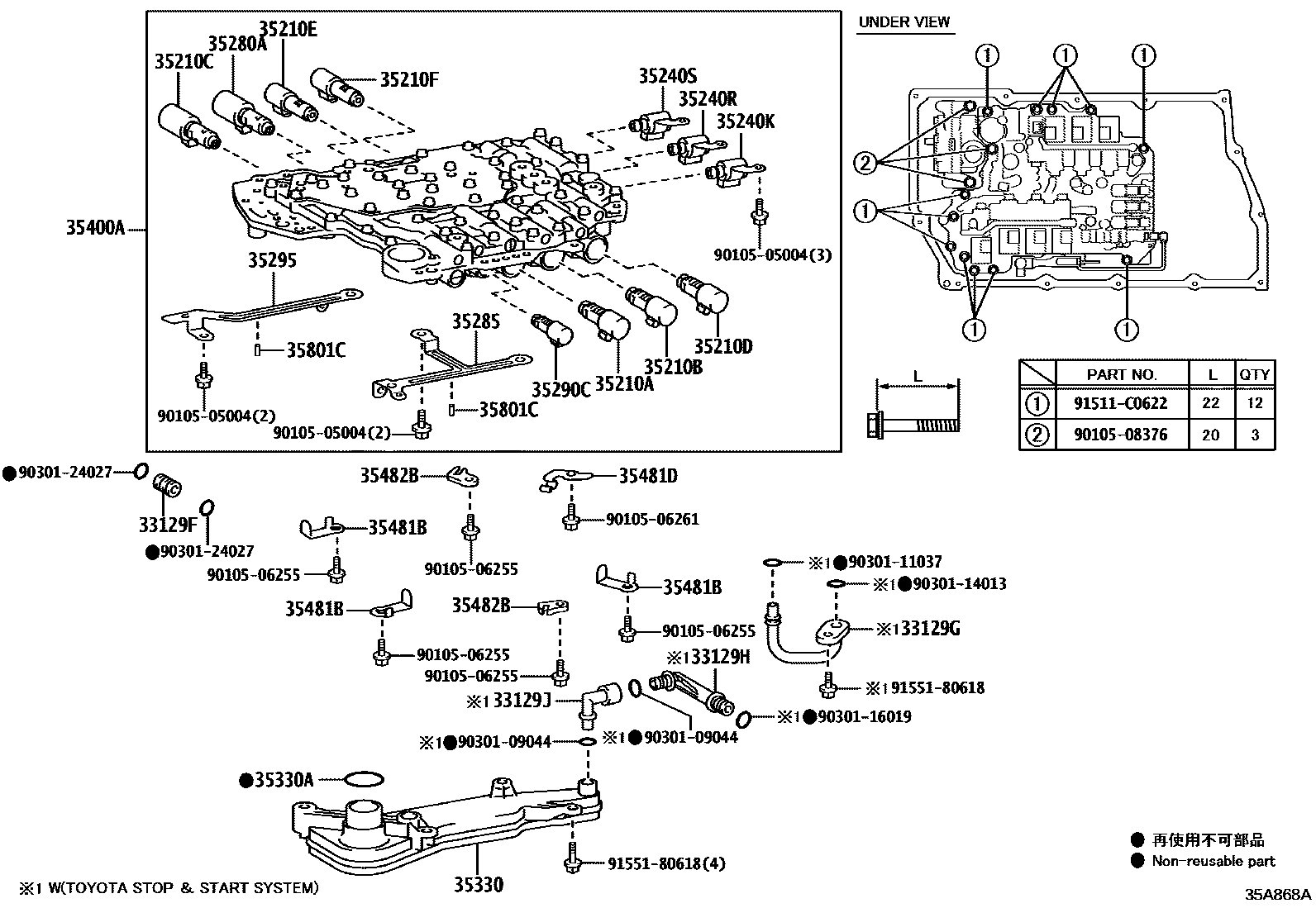

VALVE BODY & OIL STRAINER (ATM)

0001 1AJA0F 0002 1AJA0F 0003 1AC60F 0004 1AC60F

33129FPIPE, TRANSMISSION OIL

main33129-60040iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

33129GPIPE, TRANSMISSION OIL, NO.2

33129HPIPE, TRANSMISSION OIL, NO.3

33129JPIPE, TRANSMISSION OIL, NO.4

35210AVALVE, SOLENOID(SL1)

main35210-11010iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

main35210-71010iGRJ300202104-202411

35210BVALVE, SOLENOID(SL3)

main35210-11010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

main35210-71010iGRJ300202104-202411

35210CVALVE, SOLENOID(SL2)

main35210-11010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

main35210-71010iGRJ300202104-202411

35210DVALVE, SOLENOID(SL4)

main35210-11010iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

main35210-71010iGRJ300202104-202411

35210EVALVE, SOLENOID(SL5)

main35210-11010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35210FVALVE, SOLENOID(SL6)

main35210-11010iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

35240KSOLENOID ASSY, TRANSMISSION 3WAY(SC1)

main35240-11020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35240RSOLENOID ASSY, TRANSMISSION 3WAY(SR)

main35240-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35240SSOLENOID ASSY, TRANSMISSION 3WAY(SL)

main35240-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35280AVALVE, SOLENOID(SLU)

main35280-11010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

main35280-71010iGRJ300202104-202206

sub35280-71020

main35280-71020iGRJ300202207-202411

35285PLATE, SOLENOID LOCK

main35285-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

main35285-71010iGRJ300202104-202411

35290CVALVE, SOLENOID(SLT)

main35290-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

main35290-71020iGRJ300202104-202206

main35290-71030iGRJ300202207-202411

35295PLATE, SOLENOID LOCK, NO.2

main35285-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35330STRAINER ASSY, VALVE BODY OIL

main35330-60100iFJA300,VJA300202104-202112

sub35106-60H20

main35330-60120iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202201-202411

main35330-71010iGRJ300202104-202411

35330ARING, O (FOR OIL STRAINER)

main90301-24026iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

35400ABODY ASSY, TRANSMISSION VALVE W/SOLENOID

main35400-60550iFJA300,VJA300202104-202212

sub35400-60640

sub33129-60080

main35400-60640iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202212-202411

35481BCLAMP, VALVE BODY WIRE HARNESS

main35481-50060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35481DCLAMP, VALVE BODY WIRE HARNESS, NO.2

main35481-11010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35482BCLAMP, TEMPERATURE SENSOR

main35482-50020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

main35482-73010iGRJ300202104-202411

35801CPIN, STRAIGHT

main90250-03112iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

9010505004

main90105-05004

9010506255

main90105-06255

9010506261

main90105-06261

9010508376

main90105-08376

9030109044

main90301-09044

9030111037

main90301-11037

9030114013

main90301-14013

9030116019

main90301-16019

9030124027

main90301-24027

91511C0622

main91511-C0622

9155180618

main91551-80618

35 parts on this diagram · 4 diagrams in section
